Switching relay AC 230V 8A 788-516

EAN/GTIN: 4055143192378
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 788-516
Customs tariff no.: 85364900
Similar top items: Show now & compare
10,89 USD Price incl. VAT (0,00 USD)
plus shipping
Delivery time:
4-5 days [US] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Switching relay AC 230V 8A Type of electric connection Spring clamp connection, Nominal current 8A, Rated control supply voltage Us at AC 50HZ 230 ... 230V, Rated control supply voltage Us at AC 60HZ 230 ... 230V, Voltage type for actuating AC, Drive, polarization Polarity free, Drive, switching attitude Mono stable, Number of contacts as normally closed contact 0, Number of contacts as normally open contact 0, Number of contacts as change-over contact 2, Type of switch contact Simple contact, Complete with socket, Degree of protection (IP) IP20, Width 15mm, Height 54mm, Depth 86mm

More product images:

Front view WAGO 788-516 Switching relay AC 230V 8A
Front view
View on the left WAGO 788-516 Switching relay AC 230V 8A
View on the left
View on the right WAGO 788-516 Switching relay AC 230V 8A
View on the right
Back view WAGO 788-516 Switching relay AC 230V 8A
Back view
View up front WAGO 788-516 Switching relay AC 230V 8A
View up front
View top left WAGO 788-516 Switching relay AC 230V 8A
View top left
View top right WAGO 788-516 Switching relay AC 230V 8A
View top right
Top rear view WAGO 788-516 Switching relay AC 230V 8A
Top rear view

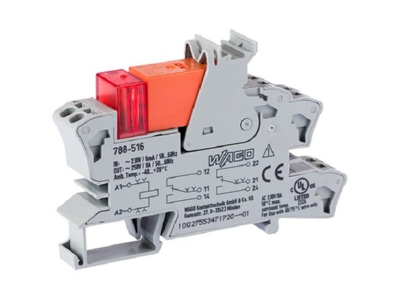

Product image WAGO 788 516 Switching relay AC 230V 8A
Product image

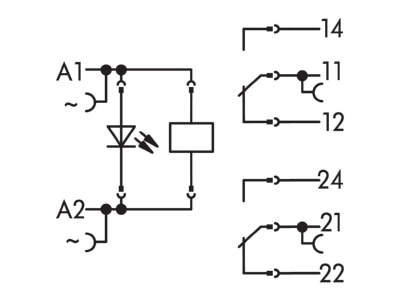

Circuit diagram WAGO 788 516 Switching relay AC 230V 8A
Circuit diagram
Dimensional drawing WAGO 788 516 Switching relay AC 230V 8A
Dimensional drawing
