Switching relay DC 12V 8A 788-311

EAN/GTIN: 4055143184120
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 788-311
Customs tariff no.: 85364900
Similar top items: Show now & compare
8,18 USD Price incl. VAT (0,00 USD)
plus shipping
Delivery time:
4-5 days [US] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Switching relay DC 12V 8A Type of electric connection Spring clamp connection, Nominal current 8A, Rated control supply voltage Us at DC 12 ... 12V, Voltage type for actuating DC, Drive, polarization Polarized, Drive, switching attitude Mono stable, Number of contacts as normally closed contact 0, Number of contacts as normally open contact 0, Number of contacts as change-over contact 2, Type of switch contact Simple contact, Complete with socket, Degree of protection (IP) IP20, Width 15mm, Height 54mm, Depth 86mm

More product images:

Front view WAGO Kontakttechnik 788-311 Switching relay AC 12V DC 12V 8A -
Front view
View on the left WAGO Kontakttechnik 788-311 Switching relay AC 12V DC 12V 8A -
View on the left
View on the right WAGO Kontakttechnik 788-311 Switching relay AC 12V DC 12V 8A -
View on the right
Back view WAGO Kontakttechnik 788-311 Switching relay AC 12V DC 12V 8A -
Back view
View up front WAGO Kontakttechnik 788-311 Switching relay AC 12V DC 12V 8A -
View up front
View top left WAGO Kontakttechnik 788-311 Switching relay AC 12V DC 12V 8A -
View top left
View top right WAGO Kontakttechnik 788-311 Switching relay AC 12V DC 12V 8A -
View top right
Top rear view WAGO Kontakttechnik 788-311 Switching relay AC 12V DC 12V 8A -
Top rear view

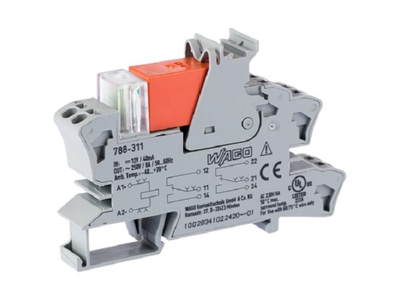

Product image WAGO 788 311 Switching relay DC 12V 8A
Product image

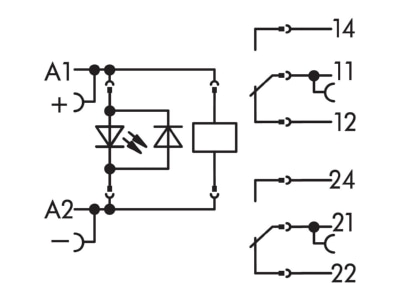

Circuit diagram WAGO 788 311 Switching relay DC 12V 8A
Circuit diagram

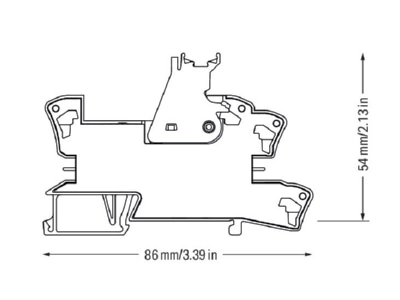

Dimensional drawing WAGO 788 311 Switching relay DC 12V 8A
Dimensional drawing
