Feed-through terminal block 5,2mm 24A UK 3-TWIN BU

EAN/GTIN: 4017918090258
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: UK 3-TWIN BU
Manufact.-SKU: 3002416
Customs tariff no.: 85369010
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
110,86 USD Price incl. VAT (0,00 USD)
(for 50 pce)
plus shipping
Delivery time:
21-22 days [US] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Feed-through terminal block 5,2mm 24A Connectable conductor cross section fine-strand without cable end sleeve 0,2 ... 2,5mm², Connectable conductor cross section fine-strand with cable end sleeve 0,25 ... 1,5mm², Connectable conductor cross section solid-core 0,2 ... 2,5mm², Connectable conductor cross section multi-wired 0,2 ... 2,5mm², Rated current In 24A, Rated voltage 400V, Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Number of levels 2, Number of clamp positions per level 3, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 5,2mm, Height at lowest possible mounting height 47mm, Length 50,5mm, Closing plate required, Colour Blue

More product images:

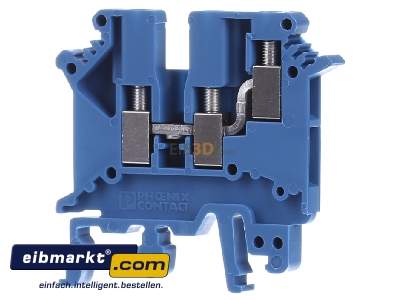

Front view Phoenix Contact UK  3-TWIN BU Feed-through terminal block UK 3-TWIN BU
Front view

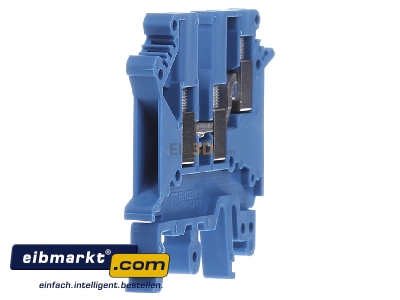

View on the left Phoenix Contact UK  3-TWIN BU Feed-through terminal block UK 3-TWIN BU
View on the left
View on the right Phoenix Contact UK  3-TWIN BU Feed-through terminal block UK 3-TWIN BU
View on the right

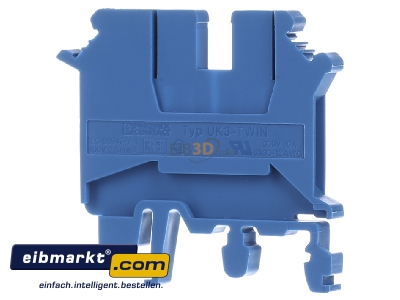

Back view Phoenix Contact UK  3-TWIN BU Feed-through terminal block UK 3-TWIN BU
Back view

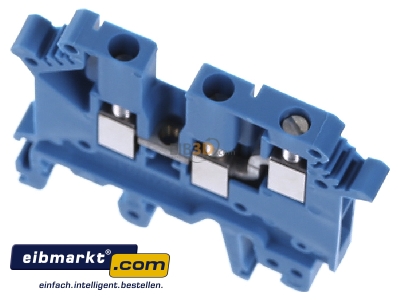

View up front Phoenix Contact UK  3-TWIN BU Feed-through terminal block UK 3-TWIN BU
View up front

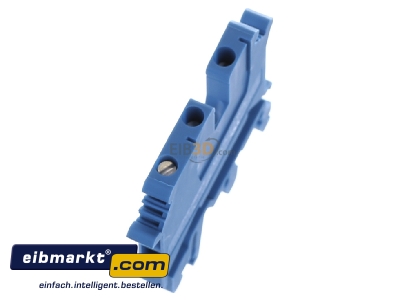

View top left Phoenix Contact UK  3-TWIN BU Feed-through terminal block UK 3-TWIN BU
View top left

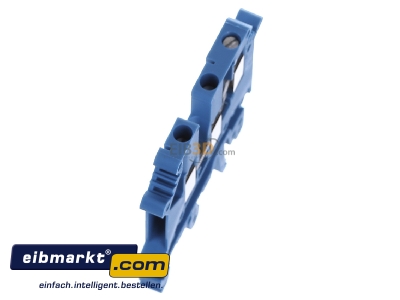

View top right Phoenix Contact UK  3-TWIN BU Feed-through terminal block UK 3-TWIN BU
View top right

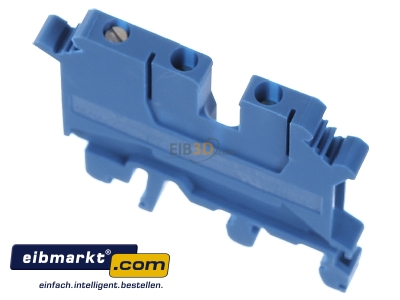

Top rear view Phoenix Contact UK  3-TWIN BU Feed-through terminal block UK 3-TWIN BU
Top rear view
Product image 1 Phoenix UK 3 TWIN BU Feed through terminal block 5 2mm 24A
Product image 1
Product image 2 Phoenix UK 3 TWIN BU Feed through terminal block 5 2mm 24A
Product image 2
