Direct kilowatt-hour meter 5A EcoCount WSD 32

EAN/GTIN: 4048652012817
WEEE: DE 92690024
Manufacturer: NZR
Manufacturer no.: EcoCount WSD 32
Manufact.-SKU: 30220116
Customs tariff no.: 90283011
Similar top items: Show now & compare
44,91 USD Price incl. VAT (0,00 USD)
plus shipping
Delivery time:
4-5 days [US] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Direct kilowatt-hour meter 5A Type of meter Electronic, Nominal current (In) 5A, Max. current (Imax) 32A, Nominal voltage (Un) N-L 230 ... 230V, Frequency 50 ... 50Hz, Accuracy class B, Pole type Single phase, Model Direct measurement, Energy type Effective power, Suitable for Purchase, Tariff type One-tariff, Calibrated, Approval Measuring Instruments Directive, Pulse output Electrical, Pulse type S0, Pulse rate 1000 ... 1000Imp/kWh (kvarh), Type of indication Digital, Mounting method DRA (DIN-rail adapter), Width in number of modular spacings 1, Type of interface None, Number of positions total (counter) 6, Degree of protection (IP) IP20

More product images:

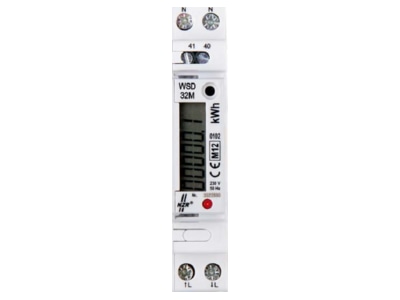

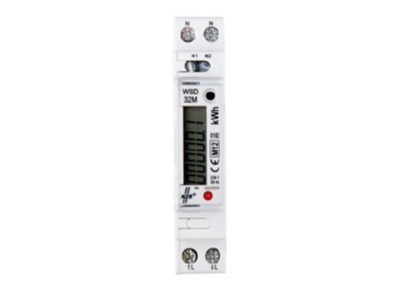

Front view NZR EcoCount WSD 32 Direct kilowatt-hour meter 5A
Front view
View on the left NZR EcoCount WSD 32 Direct kilowatt-hour meter 5A
View on the left
View on the right NZR EcoCount WSD 32 Direct kilowatt-hour meter 5A
View on the right
Back view NZR EcoCount WSD 32 Direct kilowatt-hour meter 5A
Back view
View up front NZR EcoCount WSD 32 Direct kilowatt-hour meter 5A
View up front
View top left NZR EcoCount WSD 32 Direct kilowatt-hour meter 5A
View top left
View top right NZR EcoCount WSD 32 Direct kilowatt-hour meter 5A
View top right
Top rear view NZR EcoCount WSD 32 Direct kilowatt-hour meter 5A
Top rear view
Product image 1 NZR EcoCount WSD 32 Direct kilowatt hour meter 5A
Product image 1
Product image 2 NZR EcoCount WSD 32 Direct kilowatt hour meter 5A
Product image 2
