Earth leakage circuit breaker with line protection, 1P + N, C-13A 30mA, ADS963D

EAN/GTIN: 3250611068211
WEEE: DE 23692311
Manufacturer: HAGER
Manufacturer no.: ADS963D
Customs tariff no.: 85363010
Similar top items: Show now & compare
58,66 USD Price incl. VAT (0,00 USD)
plus shipping
Delivery time:
4-5 days [US] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Earth leakage circuit breaker C13/0,03A Number of poles (total) 2, Number of protected poles 1, Rated voltage 240V, Rated insulation voltage Ui 500V, Rated impulse withstand voltage Uimp 4kV, Rated current 13A, Rated fault current 0,03A, Leakage current type A, Current limiting class 3, Rated short-circuit breaking capacity IEC 60947-2 6kA, Rated short-circuit breaking capacity Icn acc. EN 61009-1 6kA, Voltage type AC, Frequency 50 Hz, Release characteristic C, Concurrently switching N-neutral, Over voltage category 3, Pollution degree 2, Width in number of modular spacings 2, Built-in depth 68mm, Suitable for flush-mounted installation, Degree of protection (IP) IP20

More product images:

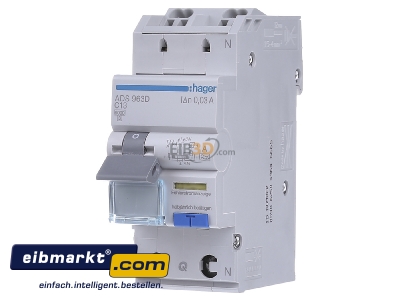

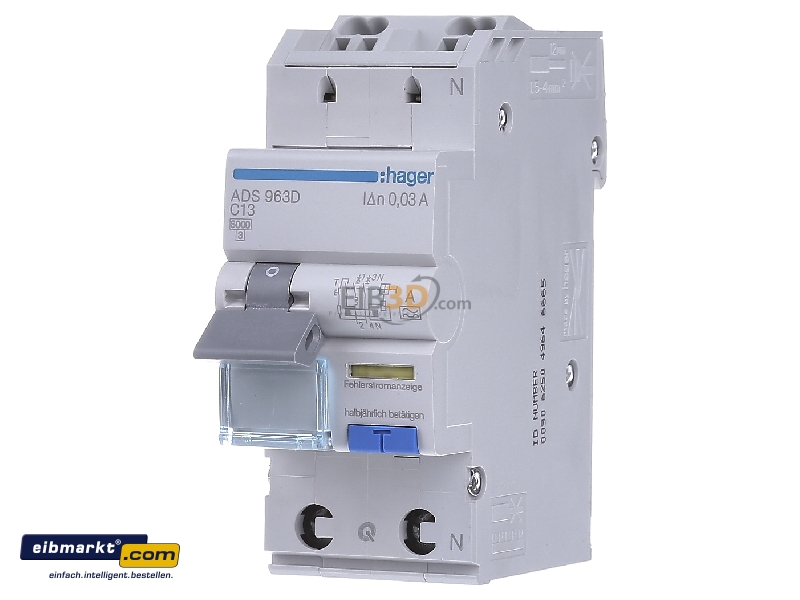

Front view Hager ADS963D Earth leakage circuit breaker C13/0,03A -
Front view

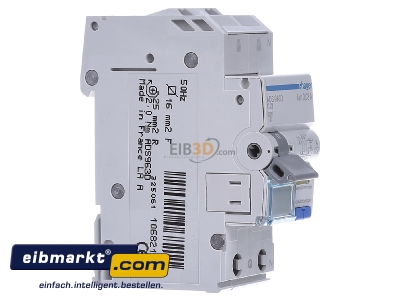

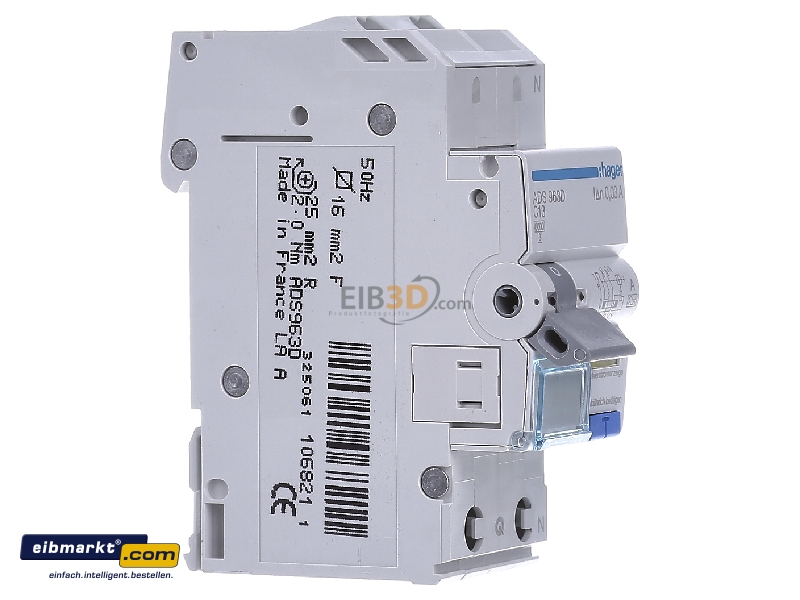

View on the left Hager ADS963D Earth leakage circuit breaker C13/0,03A -
View on the left
View on the right Hager ADS963D Earth leakage circuit breaker C13/0,03A -
View on the right

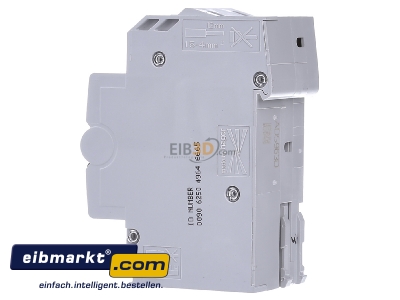

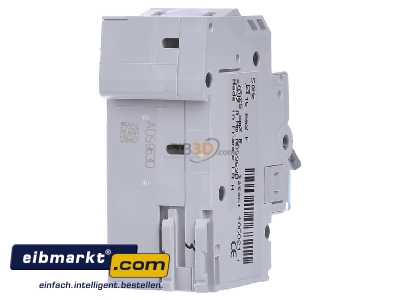

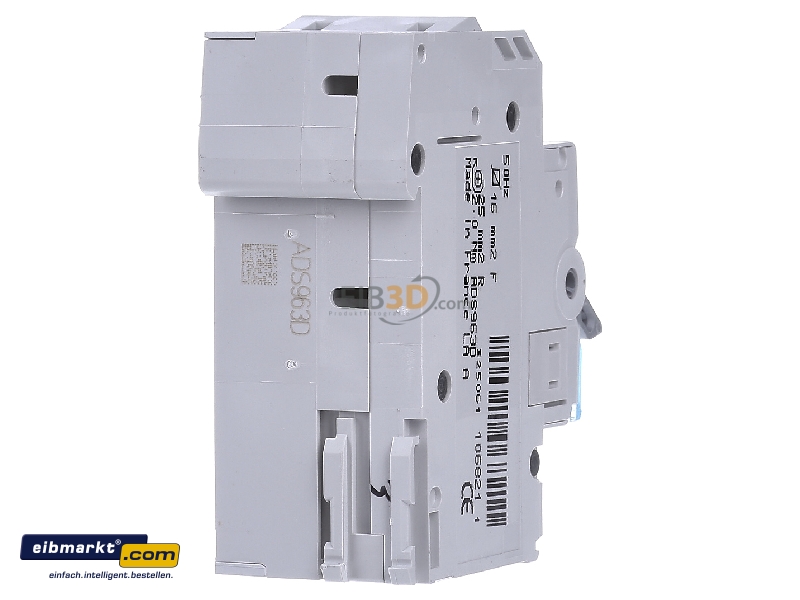

Back view Hager ADS963D Earth leakage circuit breaker C13/0,03A -
Back view

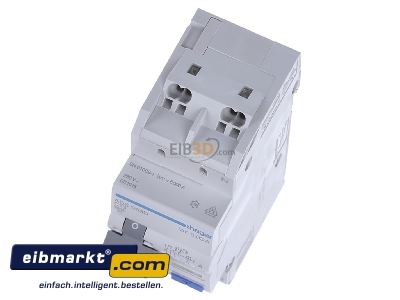

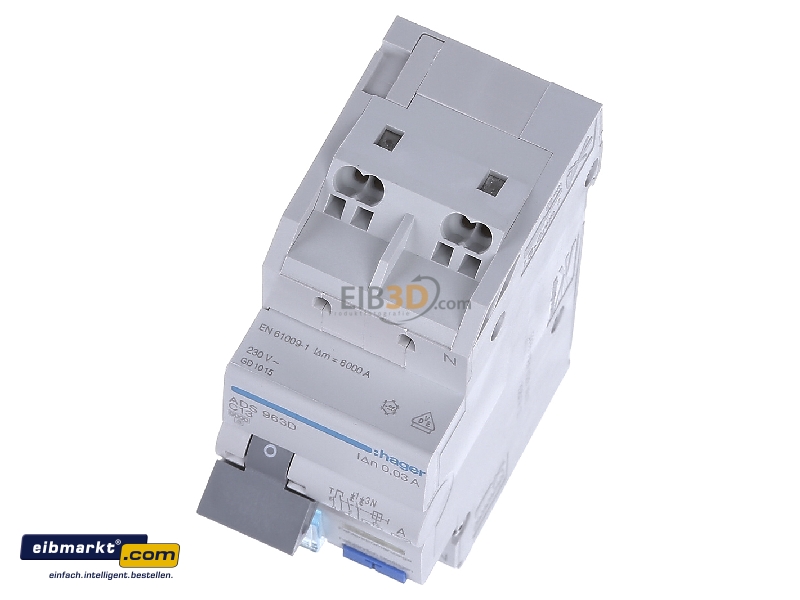

View up front Hager ADS963D Earth leakage circuit breaker C13/0,03A -
View up front
View top left Hager ADS963D Earth leakage circuit breaker C13/0,03A -
View top left
View top right Hager ADS963D Earth leakage circuit breaker C13/0,03A -
View top right

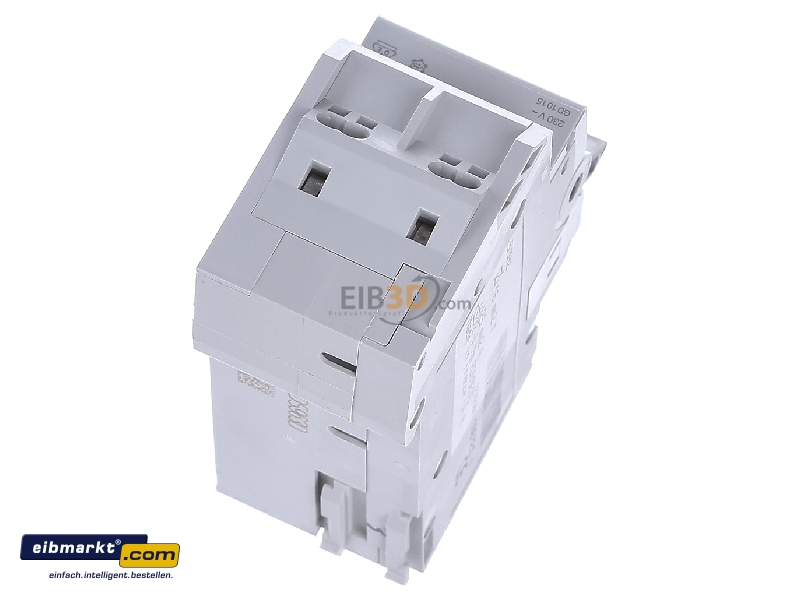

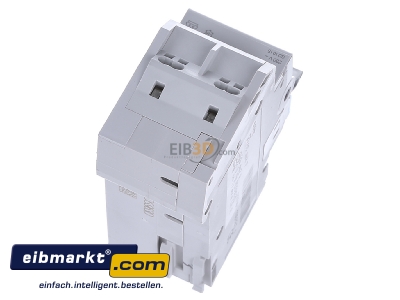

Top rear view Hager ADS963D Earth leakage circuit breaker C13/0,03A -
Top rear view
