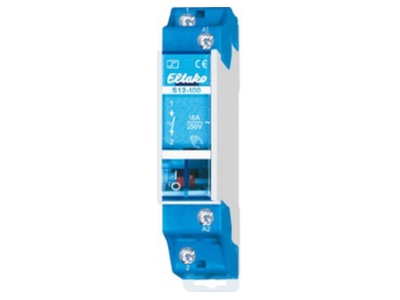

Latching relay 12V AC S12-100-12V

EAN/GTIN: 4010312100455
WEEE: DE 30298319
Manufacturer: Eltako
Manufacturer no.: S12-100-12V
Manufact.-SKU: 21100011
Customs tariff no.: 85365080
Similar top items: Show now & compare
13,61 USD Price incl. VAT (0,00 USD)
plus shipping
Delivery time:
4-5 days [US] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Latching relay 12V AC Function Other, Mounting method DIN rail, Width in number of modular spacings 1, Built-in depth 55mm, Number of contacts as normally open contact 1, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Control voltage 1 12 ... 12V, Type of control voltage 1 AC, Frequency control voltage 1 50 ... 50Hz, Rated switch current 16A, Max. incandescent lamp load 2300W, Max. load fluorescent lamp 2300VA, Max. load fluorescent lamp (Duo circuit) 2300VA, Max. load fluorescent lamp (parallel compensated) 500VA, Max. switching current (cos phi = 0.6) 10A, Manual operation possible

More product images:

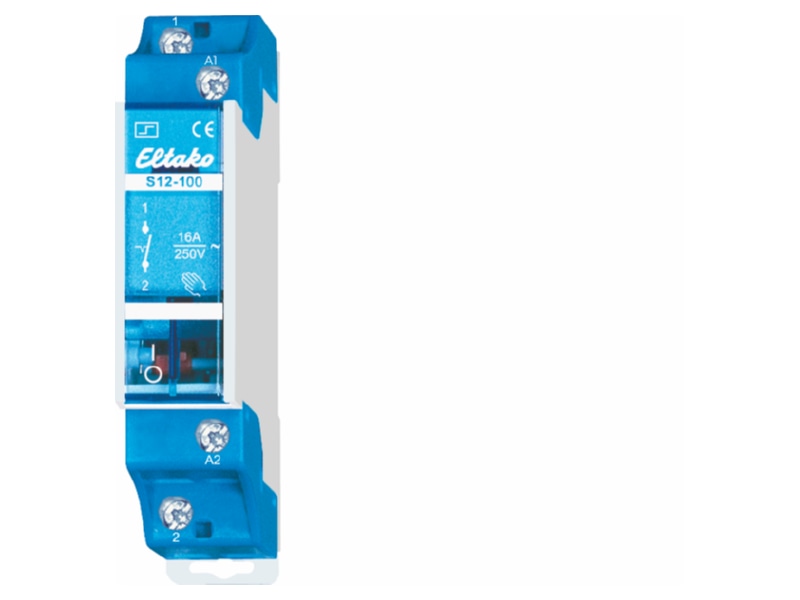

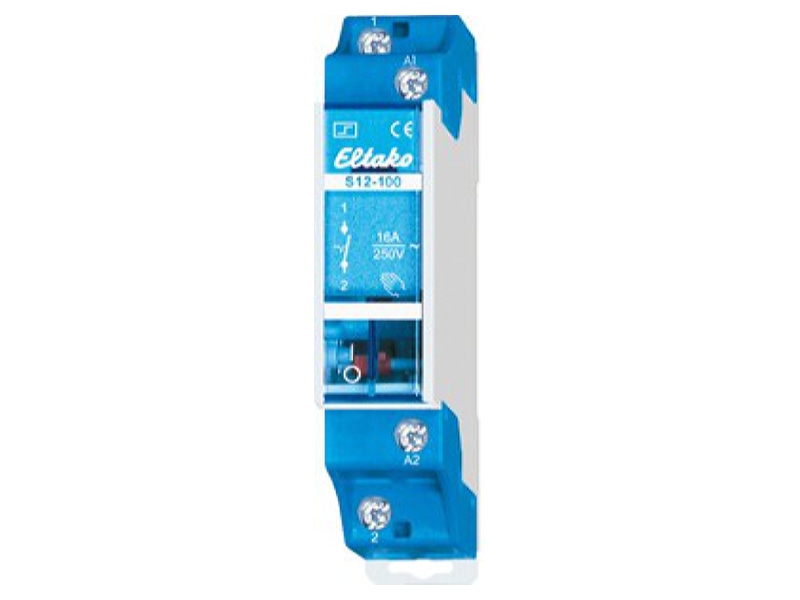

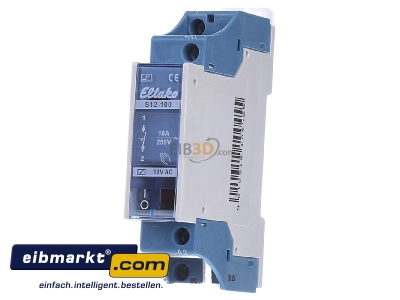

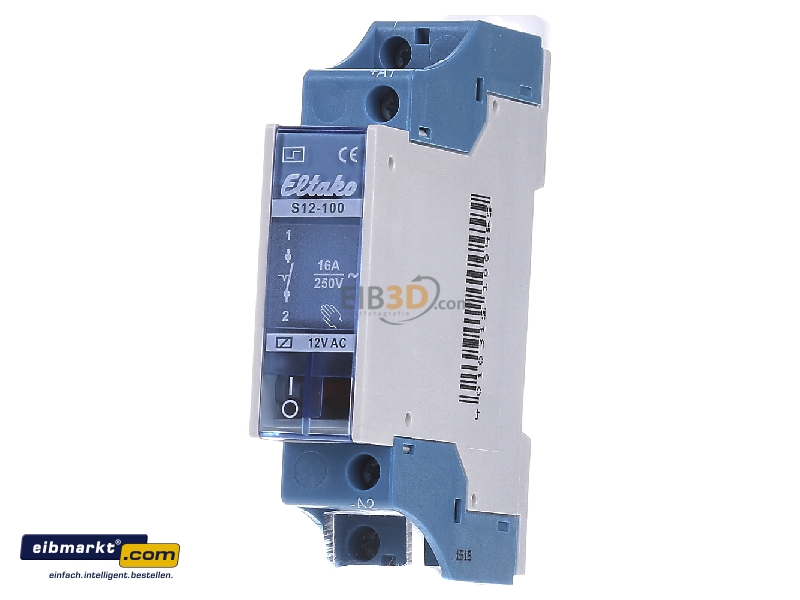

Front view Eltako S12-100-12V Latching relay 12V AC -
Front view

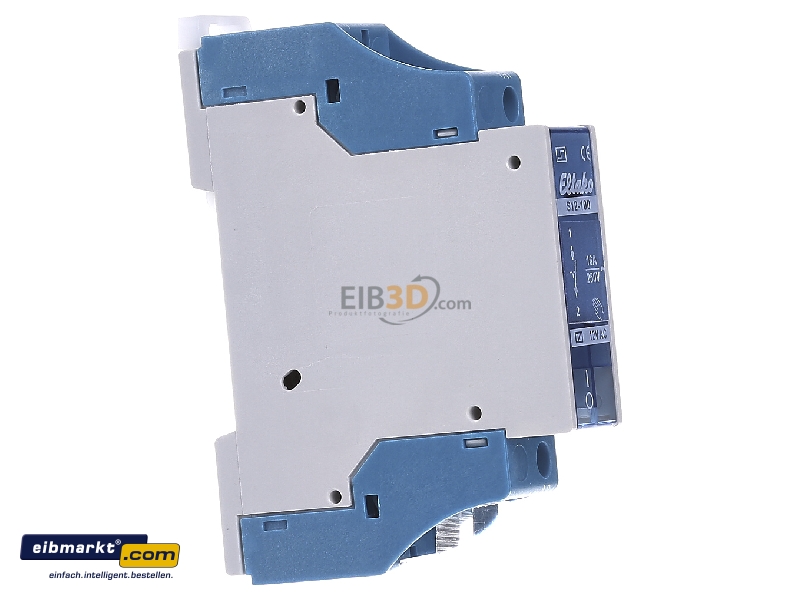

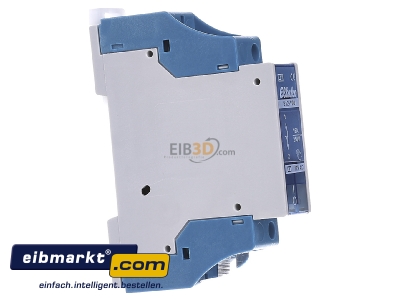

View on the left Eltako S12-100-12V Latching relay 12V AC -
View on the left

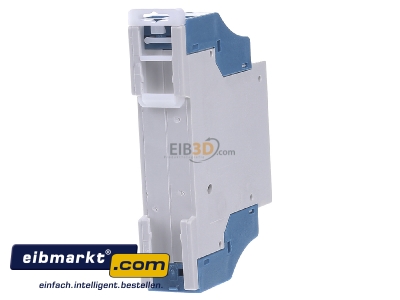

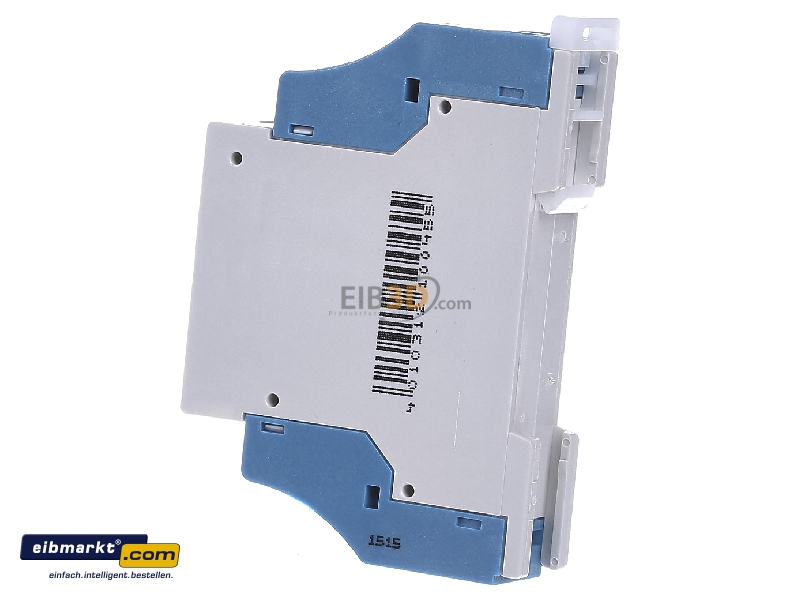

View on the right Eltako S12-100-12V Latching relay 12V AC -
View on the right

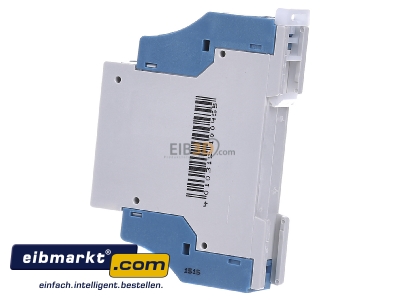

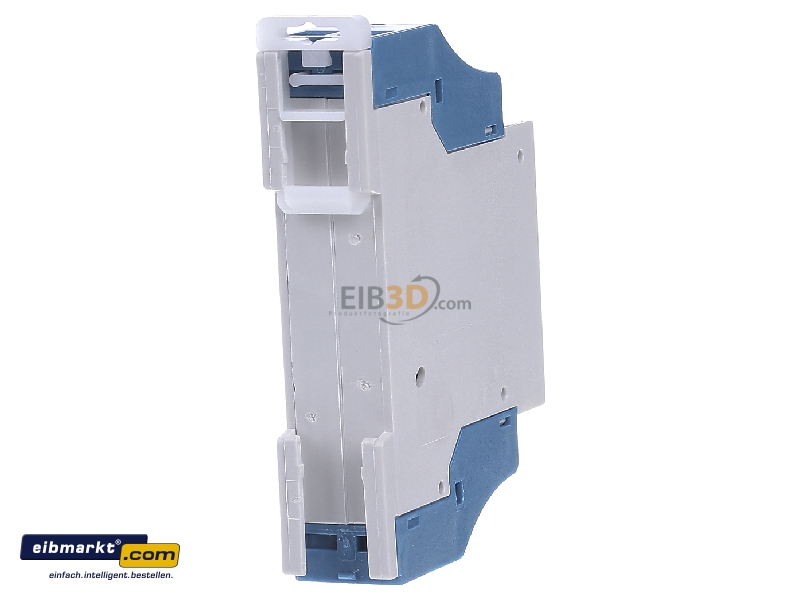

Back view Eltako S12-100-12V Latching relay 12V AC -
Back view

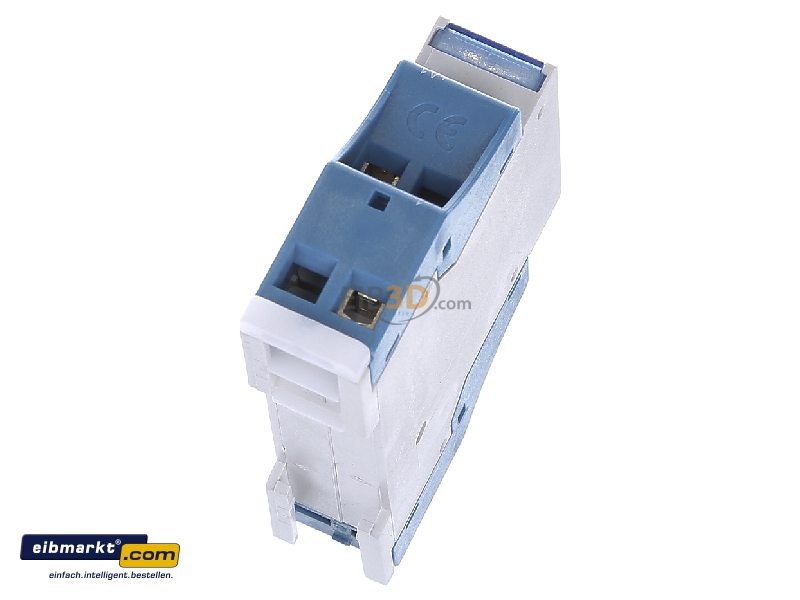

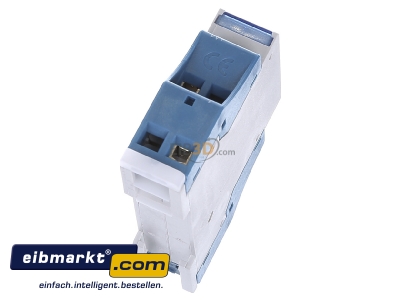

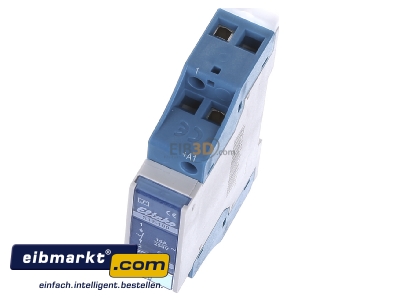

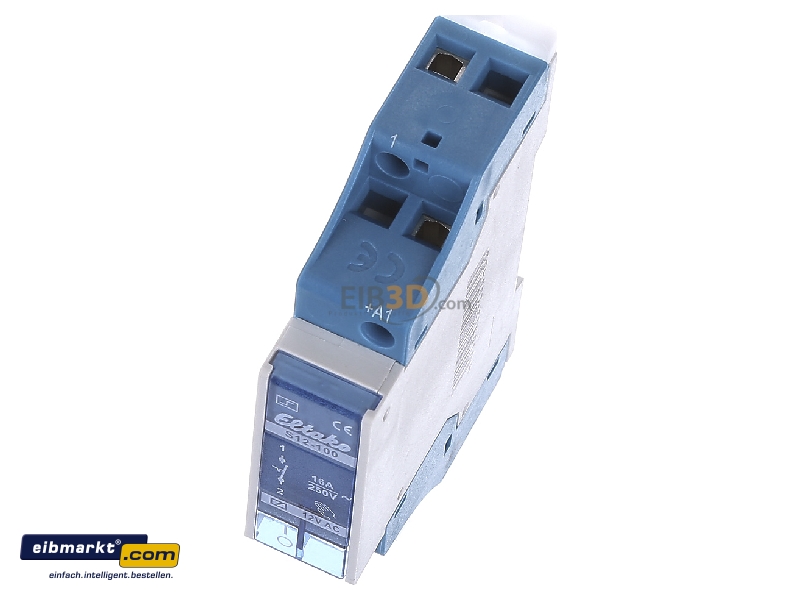

View up front Eltako S12-100-12V Latching relay 12V AC -
View up front

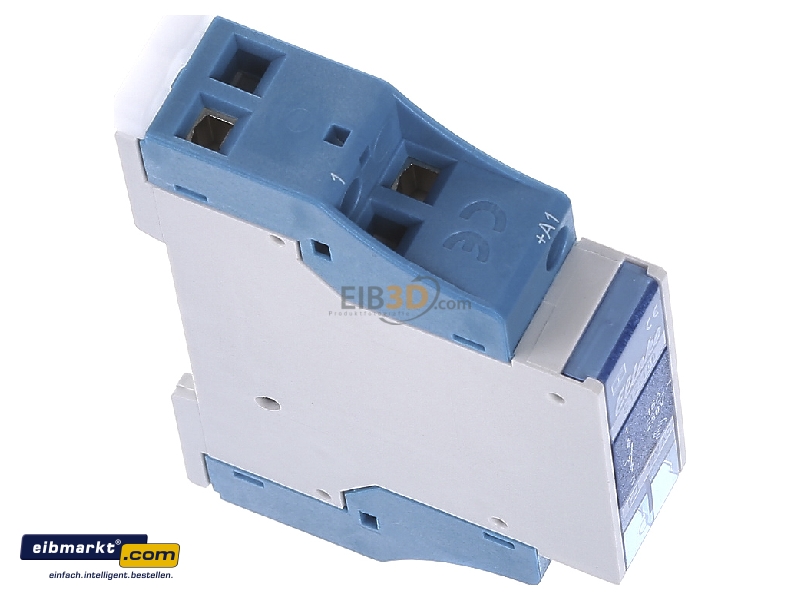

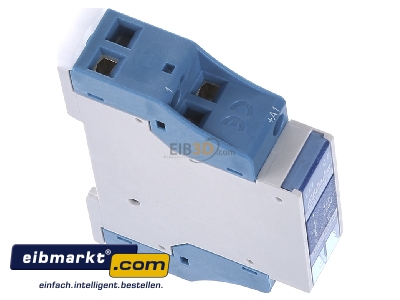

View top left Eltako S12-100-12V Latching relay 12V AC -
View top left

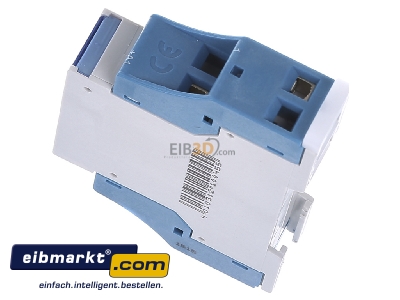

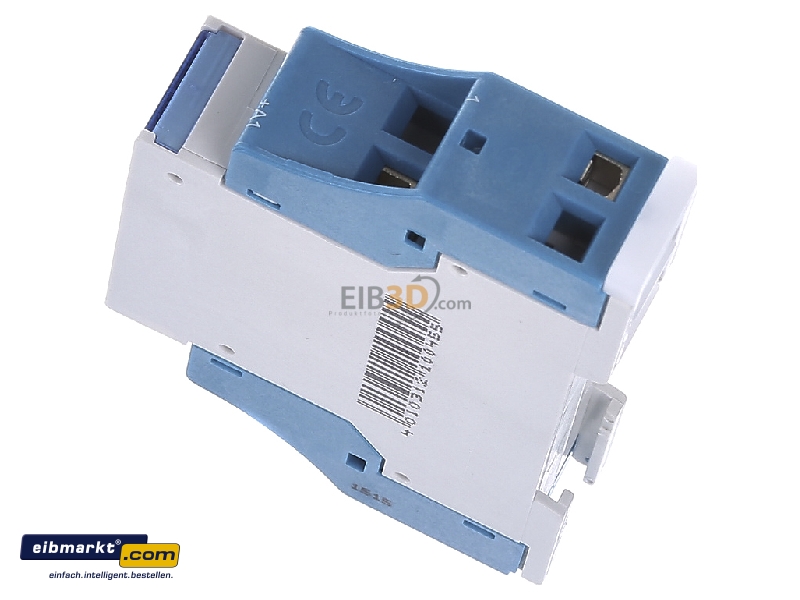

View top right Eltako S12-100-12V Latching relay 12V AC -
View top right
Top rear view Eltako S12-100-12V Latching relay 12V AC -
Top rear view
