Downlight/spot/floodlight S060102
Source photo:
EVN
(fig. might be different or similar)

Downlight/spot/floodlight S060102

EAN/GTIN: 4037293064668
WEEE: DE 63351424
Manufacturer: EVN
Manufacturer no.: S060102
Customs tariff no.: 94054239
Similar top items: Show now & compare
29,49 USD Price incl. VAT (0,00 USD)
plus shipping
Delivery time:
4-5 days [US] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

LED recessed light 230V 830, dim., ws S060102 Energy efficiency class of the light source according to EU Regulation 2019/2015 not relevant, Suitable for recessed mounting, Suitable for ceiling mounting, Adjustable swiveling, LED bulb not replaceable, With bulb, Housing material aluminum, Housing color white , Material of the cover: transparent plastic, nominal voltage 200 ... 240V, LED nominal current at constant current 350 ... 350mA, control gear LED control gear current-controlled, with control gear, replaceable control gear, dimming depending on the control gear, dimming phase-cutting edge, dimming phase-cutting edge, reflector high-gloss , light distributor reflector, light distribution symmetrical, beam angle medium beam 21-40°, light emission direct, rated service life L80/B10 at 25 °C 50,000h, luminous flux drop at average. Service life 50,000 h at 25 °C ambient temperature. 20%, protection class (IP) IP54, protection class II, max. system power 6W, light color white, color temperature 3000 ... 3000K, color rendering index CRI 80-89, luminous flux 683 ... 683lm, color temperature adjustable no, luminous flux adjustable no, beam angle adjustable no, height/depth 28mm, outer diameter 83mm, installation height/depth 26mm, installation diameter 68 ... 68mm, luminous efficacy 113lm/W, The COB-LED recessed ceiling light can be used for a variety of indoor applications, such as: B. Realize effect lighting, room lighting, accentuated lighting and much more. Since the MM marking is also given, it can even be used in furniture construction. Due to the seal on the back, the luminaire achieves protection class IP54 when installed in closed ceilings. There are no additional costs for lamps with this lamp, as the power is supplied by a permanently installed LED chip. Since the power supply is already included in the scope of delivery, there are no additional costs for this. The power supply and the lamp are connected to each other via a plug and socket. Furthermore, the system can also be dimmed using a trailing edge. The swivel angle is 25°. Dimensions power supply (diameter x H): 54 x 23mm. Housing color similar to RAL9003.

More product images:

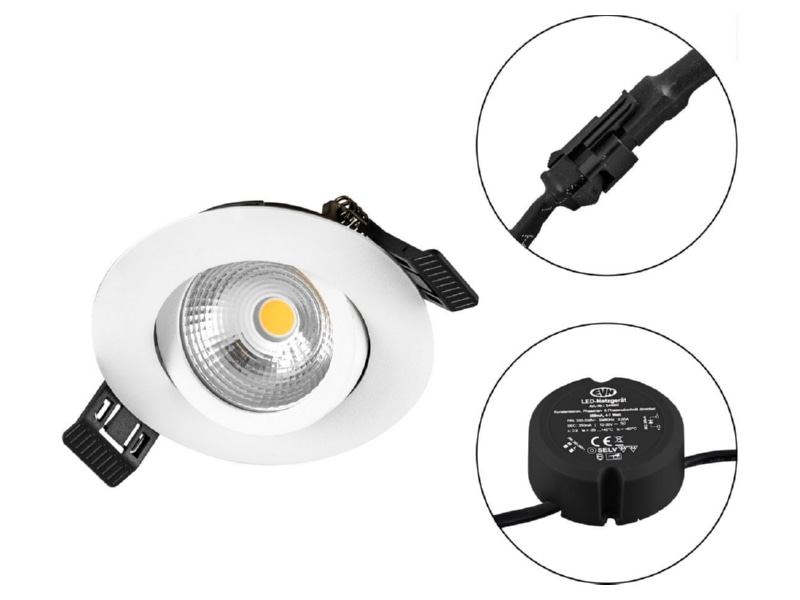

Product image EVN S060102 Downlight spot floodlight
Product image

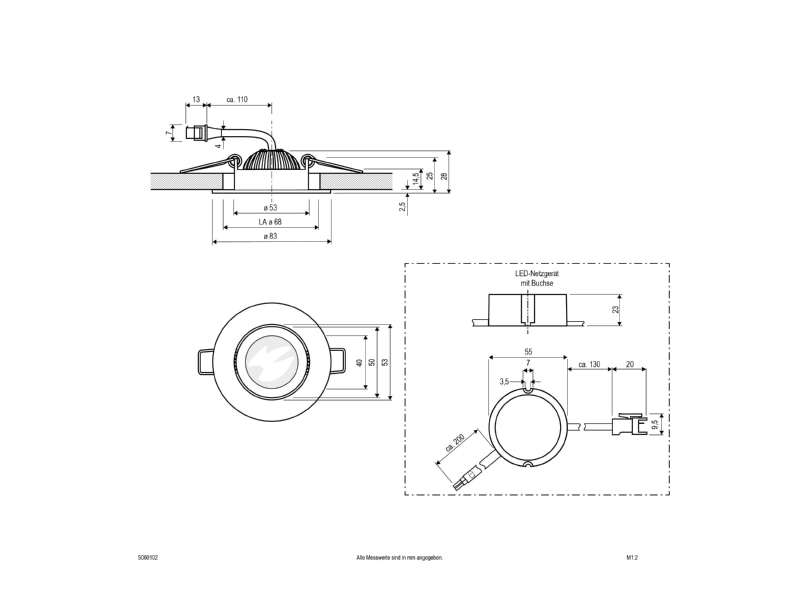

Dimensional drawing EVN S060102 Downlight spot floodlight
Dimensional drawing
