EIB, KNX ceiling presence detector, PD-C360i/8 mini KNX

EAN/GTIN: 4015120426155
WEEE: DE 36503340
Manufacturer: ESYLUX
Manufacturer no.: PD-C 360i/8 mini KNX
Manufact.-SKU: EP10426155
Customs tariff no.: 90314990
Similar top items: Show now & compare
87,45 USD Price incl. VAT (0,00 USD)
plus shipping
Delivery time:
4-5 days [US] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Movement sensor for home automation Bus system KNX, Other bus systems None, Model Presence detector, Mounting method Flush mounted (plaster), Material Plastic, Material quality Thermoplastic, Surface protection Untreated, Surface finishing Matt, Colour Other, RAL-number (akin) 9010, Bus connection included, Response value luminosity adjustable, Teach-function for response value luminosity, Optimum mounting height 3m, Max. transmission range sideways 4m, Max. transmission range frontally 2m, Diameter detection range on floor 8m, Detection angle vertical 0 ... 180°, Detection angle horizontal 180 ... 360°, Number of channels 4, Number of binary inputs 0, Switching power 0W, Min. switch-on time 30s, Max. duty cycle 720min, Min. depth of built-in installation box 45mm

More product images:

Front view ESYLUX PD-C 360i/8 mini KNX EIB, KNX ceiling presence detector, PD-C360i/8 mini KNX
Front view
View on the left ESYLUX PD-C 360i/8 mini KNX EIB, KNX ceiling presence detector, PD-C360i/8 mini KNX
View on the left
View on the right ESYLUX PD-C 360i/8 mini KNX EIB, KNX ceiling presence detector, PD-C360i/8 mini KNX
View on the right
Back view ESYLUX PD-C 360i/8 mini KNX EIB, KNX ceiling presence detector, PD-C360i/8 mini KNX
Back view
View up front ESYLUX PD-C 360i/8 mini KNX EIB, KNX ceiling presence detector, PD-C360i/8 mini KNX
View up front
View top left ESYLUX PD-C 360i/8 mini KNX EIB, KNX ceiling presence detector, PD-C360i/8 mini KNX
View top left
View top right ESYLUX PD-C 360i/8 mini KNX EIB, KNX ceiling presence detector, PD-C360i/8 mini KNX
View top right
Top rear view ESYLUX PD-C 360i/8 mini KNX EIB, KNX ceiling presence detector, PD-C360i/8 mini KNX
Top rear view

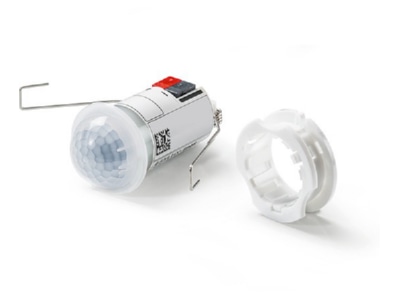

Product image ESYLUX PD C 360i 8 mini KNX EIB  KNX ceiling presence detector  PD C360i 8 mini KNX
Product image

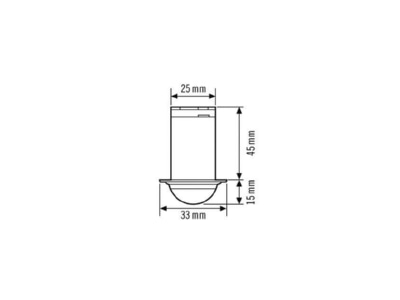

Dimensional drawing ESYLUX PD C 360i 8 mini KNX EIB  KNX ceiling presence detector  PD C360i 8 mini KNX
Dimensional drawing
