Residual current device, DFS4 040-4/0,03-AEV

EAN/GTIN: 4014712215955
WEEE: DE 85624250
Manufacturer: Doepke
Manufacturer no.: DFS4 040-4/0,03-A EV
Manufact.-SKU: 09134818
Customs tariff no.: 85363030
Similar top items: Show now & compare
303,34 USD Price incl. VAT (0,00 USD)
plus shipping
Delivery time:
4-5 days [US] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Residual current breaker 4-p Number of poles 4, Rated voltage 400V, Rated current 40A, Rated fault current 30mA, Rated insulation voltage Ui 400V, Rated impulse withstand voltage Uimp 4kV, Mounting method DIN rail, Leakage current type A, Short-circuit breaking capacity (Icw) 10kA, Surge current capacity 3kA, Frequency 50 Hz, Additional equipment possible, Degree of protection (IP) IP20, Width in number of modular spacings 4, Built-in depth 69mm, Ambient temperature during operating -25 ... 40°C, Pollution degree 2, Connectable conductor cross section multi-wired 1,5 ... 50mm², Connectable conductor cross section solid-core 1,5 ... 50mm²

More product images:

Front view Doepke DFS4 040-4/0,03-A EV Residual current device, DFS4 040-4/0,03-AEV
Front view
View on the left Doepke DFS4 040-4/0,03-A EV Residual current device, DFS4 040-4/0,03-AEV
View on the left
View on the right Doepke DFS4 040-4/0,03-A EV Residual current device, DFS4 040-4/0,03-AEV
View on the right
Back view Doepke DFS4 040-4/0,03-A EV Residual current device, DFS4 040-4/0,03-AEV
Back view
View up front Doepke DFS4 040-4/0,03-A EV Residual current device, DFS4 040-4/0,03-AEV
View up front
View top left Doepke DFS4 040-4/0,03-A EV Residual current device, DFS4 040-4/0,03-AEV
View top left
View top right Doepke DFS4 040-4/0,03-A EV Residual current device, DFS4 040-4/0,03-AEV
View top right
Top rear view Doepke DFS4 040-4/0,03-A EV Residual current device, DFS4 040-4/0,03-AEV
Top rear view
Product image Doepke DFS4 040 4 0 03 A EV Residual current device  DFS4 040 4 0 03 AEV
Product image

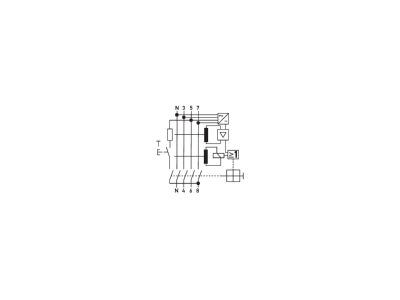

Circuit diagram Doepke DFS4 040 4 0 03 A EV Residual current device  DFS4 040 4 0 03 AEV
Circuit diagram

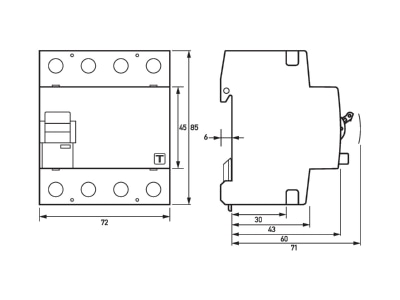

Dimensional drawing Doepke DFS4 040 4 0 03 A EV Residual current device  DFS4 040 4 0 03 AEV
Dimensional drawing
