Presence detector PD9M1CSDBIP65GHDE ed
Source photo:
BEG
(fig. might be different or similar)

Presence detector PD9M1CSDBIP65GHDE ed

EAN/GTIN: 4007529929320
WEEE: DE 90433340
Manufacturer: BEG
Manufacturer no.: PD9M1CSDBIP65GHDE ed
Manufact.-SKU: 92932
Customs tariff no.: 85365080
Similar top items: Show now & compare
160,98 USD Price incl. VAT (0,00 USD)
plus shipping
Delivery time:
14-15 days [US] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Model=Presence detector, Sensor type=Passive infrared, With DALI interface=no, HVAC-control=no, Forced switch off=yes, Animal zone=no, Creep-under protection=yes, Networkable=no, Optimum mounting height=6 m, Staircase light controller=yes, Bridging switch=no, Max. reach sideways=1,75 m, Max. presence range=0 m², Diameter reach on floor=6 m, Suitable for wireless transmission=no, Remote operation=yes, With remote control=no, Response value sensitivity adjustable=yes, Response value luminosity adjustable=yes, With signal unit=no, Teach-function for response value luminosity=no, Dim function with dimmer basic element=no, Mounting method=Other, Suitable for ceiling mounting=yes, Suitable for wall mounting=no, Material=Plastic, Material quality=Other, Halogen free=yes, Surface protection=Untreated, Surface finishing=Matt, Anti-bacterial treatment=no, Colour=Stainless steel, RAL-number (similar)=9022, Transparent=no, Degree of protection (IP)=IP65, Impact strength=IK03, Voltage type=AC, Frequency=50 Hz, Min. switch-on time=15 s, Max. duty cycle=30 min, Switch-off delay=0 s, Switching-on delay=0 s, Response value luminosity=20..2000 lx, Max. switching power=2300 W, Max. switching power LED=300 W, Suitable for C-load=no, Temperature=-25..50 °C, Number of switching zones=9, Max. starting current=80 A, Control current=10 mA, Substation input=yes, With alarm function=no, Height=40 mm, Diameter=36 mm, Compatible with Apple HomeKit=no, Compatible with Google Assistant=no, Compatible with Amazon Alexa=no, IFTTT support available=no

More product images:

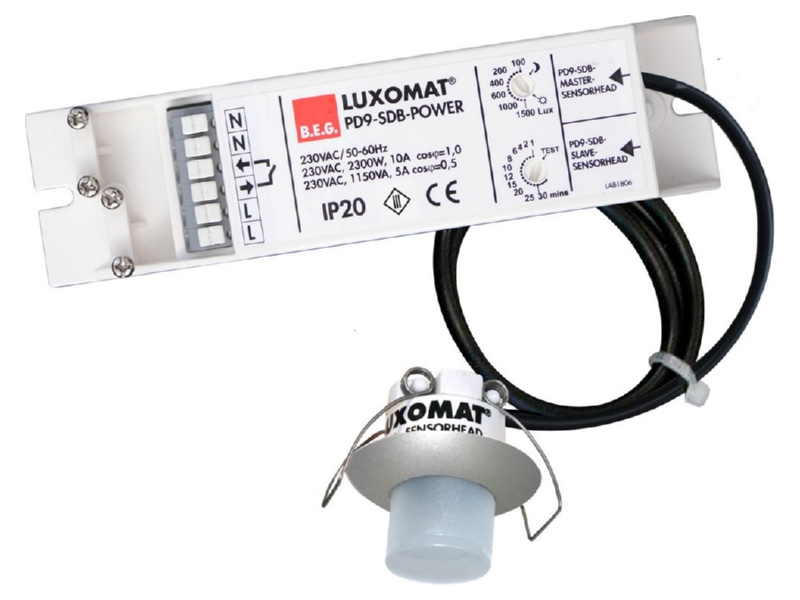

Product image BEG PD9M1CSDBIP65GHDE ed Presence detector
Product image

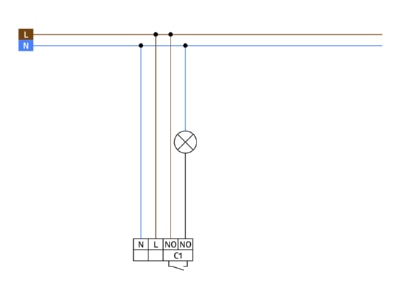

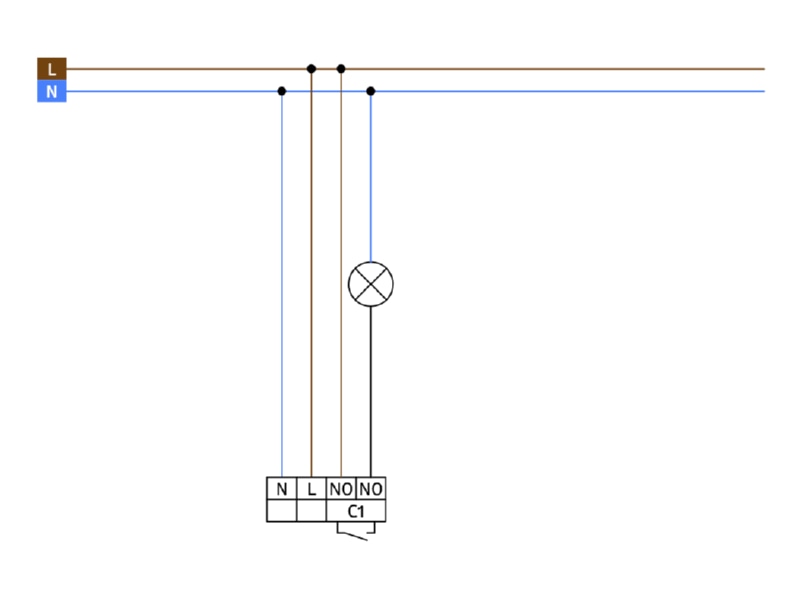

Wiring plan BEG PD9M1CSDBIP65GHDE ed Presence detector
Wiring plan

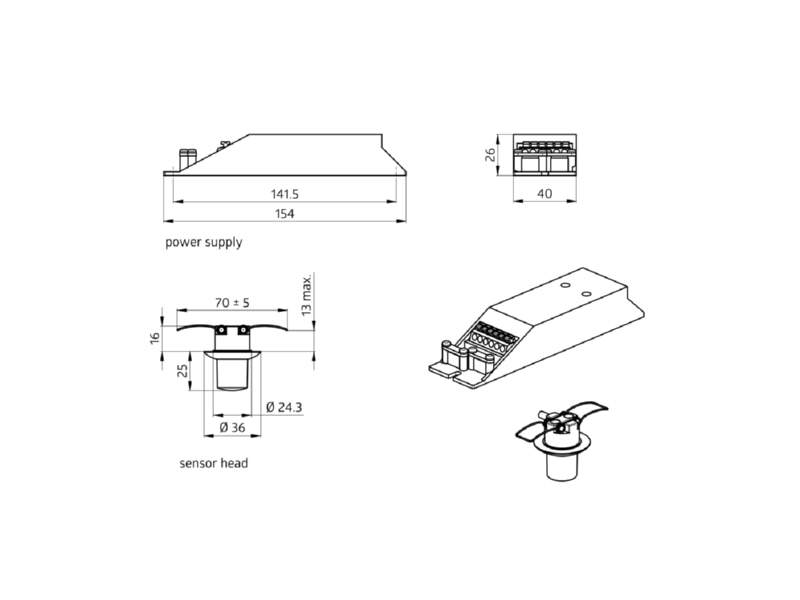

Dimensional drawing BEG PD9M1CSDBIP65GHDE ed Presence detector
Dimensional drawing

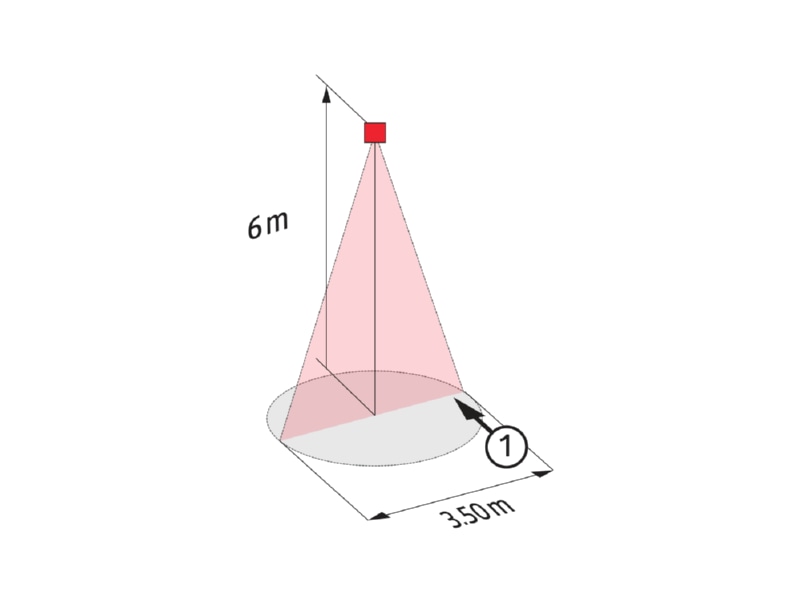

Cone diagram BEG PD9M1CSDBIP65GHDE ed Presence detector
Cone diagram
