Neutral disconnect terminal block 10mm 784-613

EAN/GTIN: 4045454016975
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 784-613
Customs tariff no.: 85365080
Similar top items: Show now & compare
2,23 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Neutral disconnect terminal block 10mm Connectable conductor cross section fine-strand without cable end sleeve 0,2 ... 10mm², Connectable conductor cross section fine-strand with cable end sleeve 0,2 ... 10mm², Connectable conductor cross section solid-core 0,2 ... 10mm², Connectable conductor cross section multi-wired 0,2 ... 10mm², Rated current In 57A, Rated voltage 400V, Type of electric connection Spring clamp connection, Number of clamp positions 1, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature 105 ... 105°C, Inflammability class of insulation material acc. with UL94 5V, Width/grid dimension 10mm, Height at lowest possible mounting height 43,5mm, Length 82,5mm, Connecting plate required, Colour Blue, Suitable for N-busbar 3x10 mm

More product images:

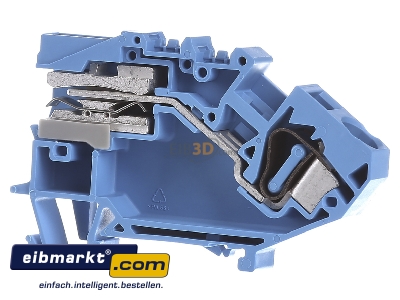

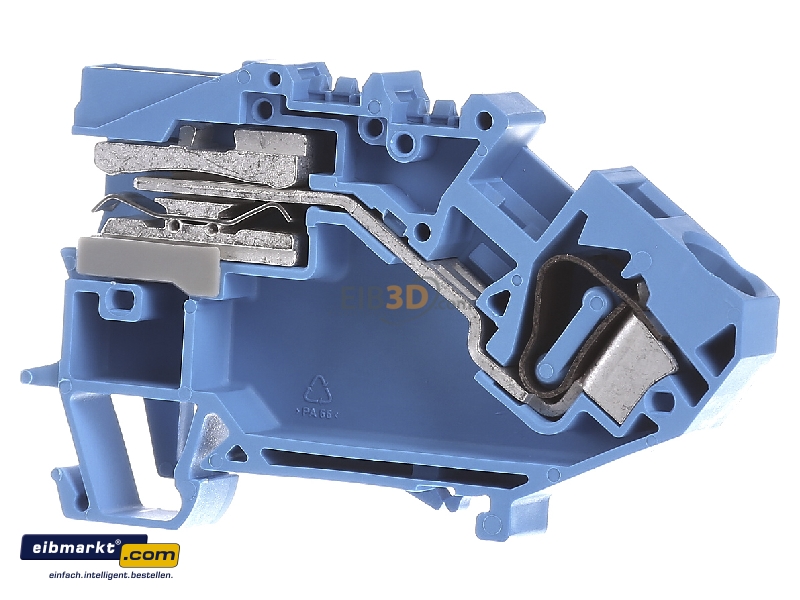

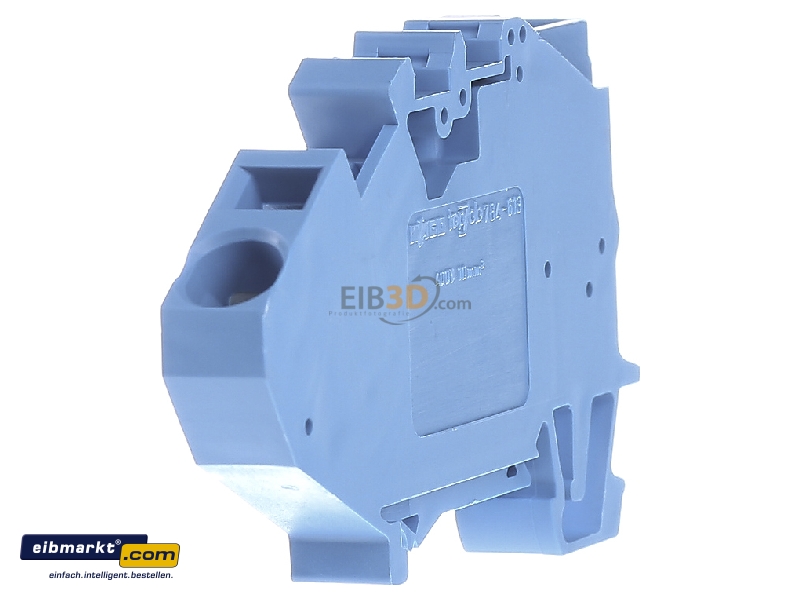

Front view WAGO Kontakttechnik 784-613 Neutral disconnect terminal block 10mm -
Front view

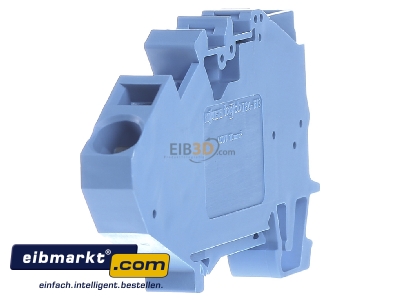

View on the left WAGO Kontakttechnik 784-613 Neutral disconnect terminal block 10mm -
View on the left

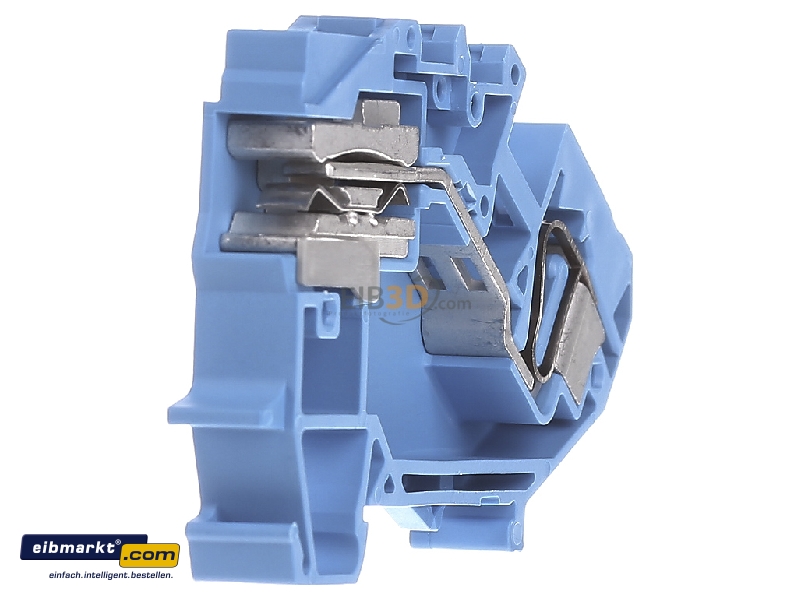

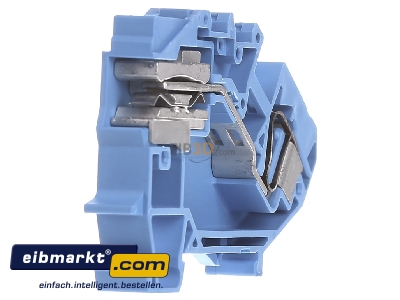

View on the right WAGO Kontakttechnik 784-613 Neutral disconnect terminal block 10mm -
View on the right

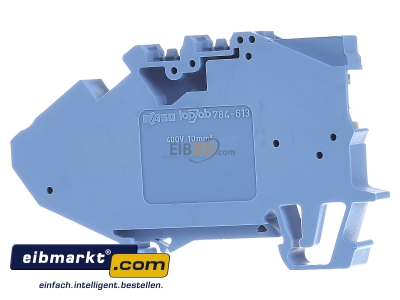

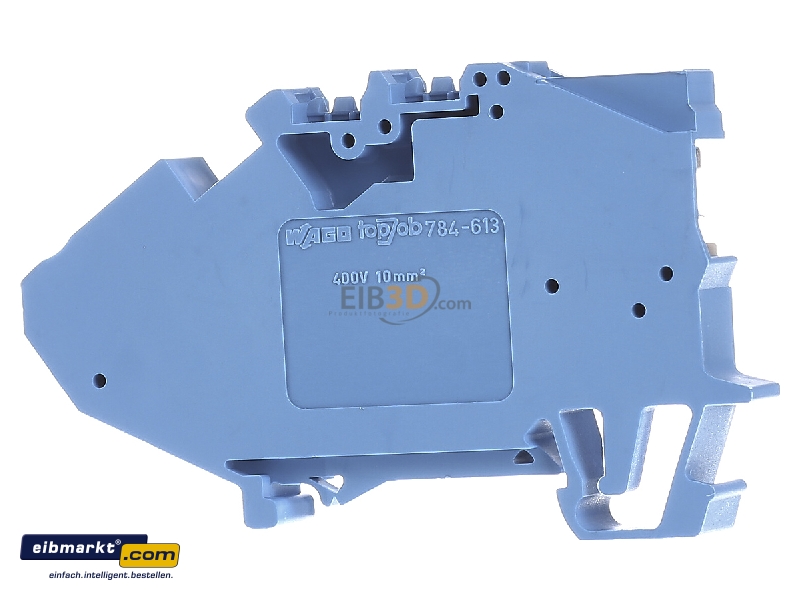

Back view WAGO Kontakttechnik 784-613 Neutral disconnect terminal block 10mm -
Back view

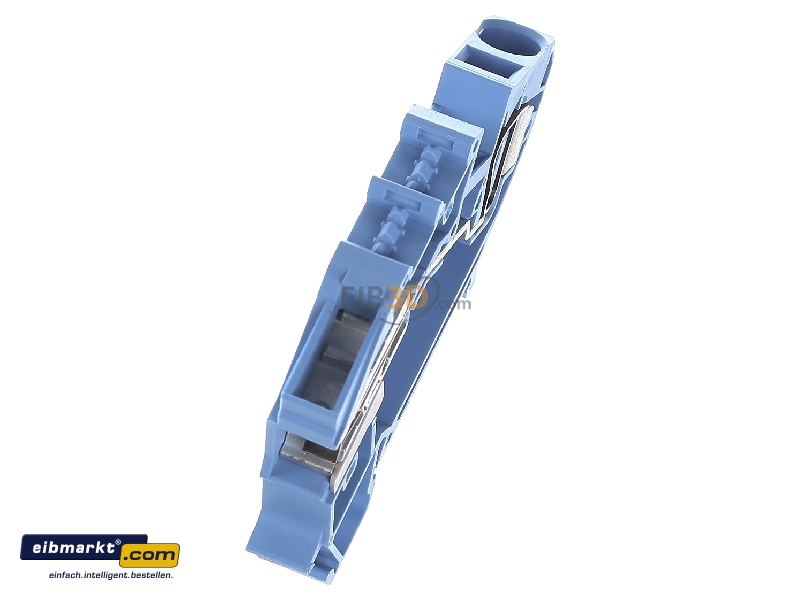

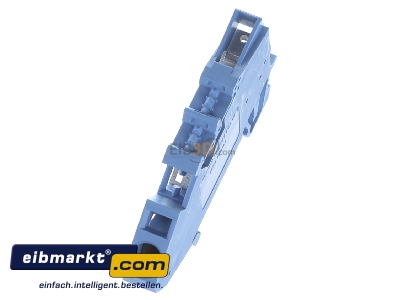

View up front WAGO Kontakttechnik 784-613 Neutral disconnect terminal block 10mm -
View up front

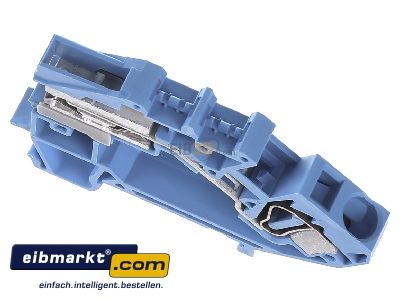

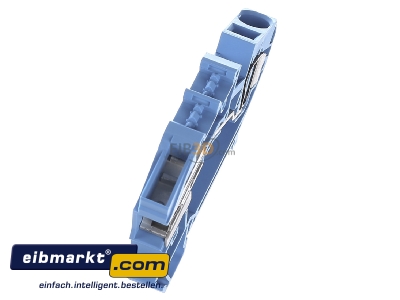

View top left WAGO Kontakttechnik 784-613 Neutral disconnect terminal block 10mm -
View top left
View top right WAGO Kontakttechnik 784-613 Neutral disconnect terminal block 10mm -
View top right

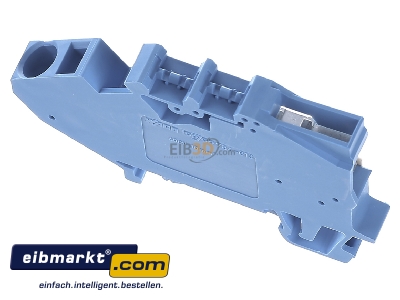

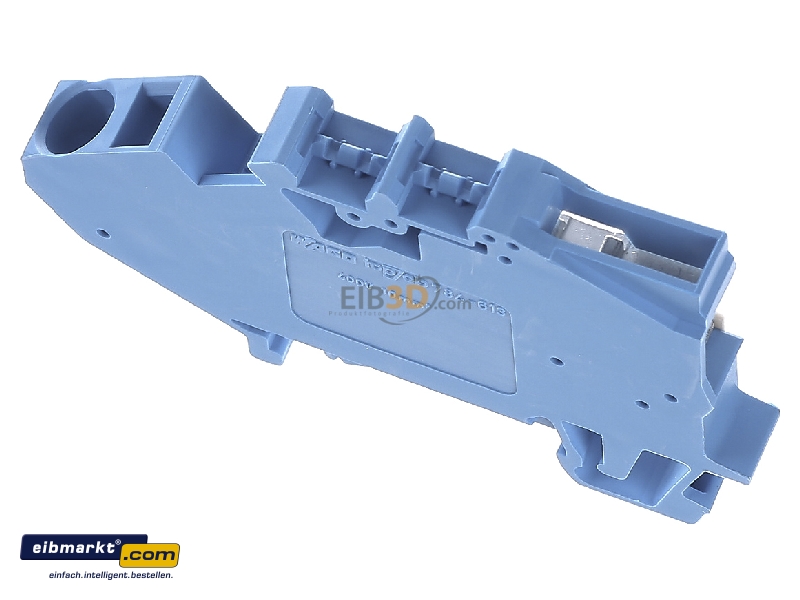

Top rear view WAGO Kontakttechnik 784-613 Neutral disconnect terminal block 10mm -
Top rear view

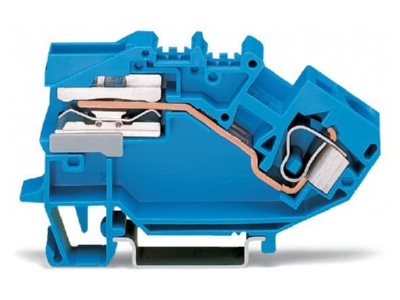

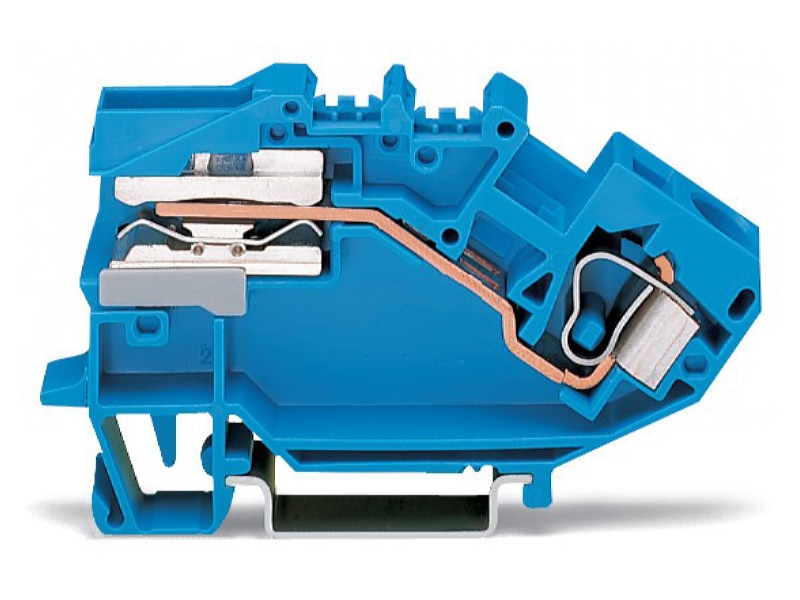

Product image WAGO 784 613 Neutral disconnect terminal block 10mm
Product image

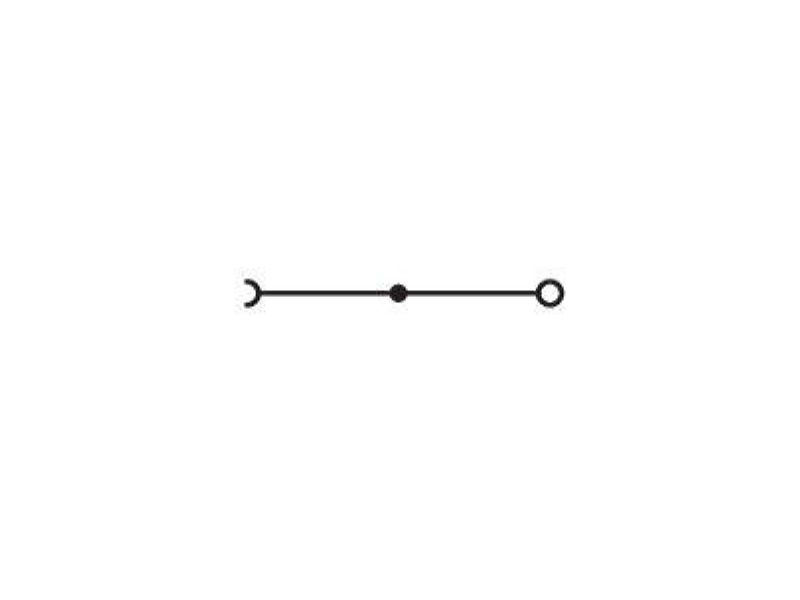

Circuit diagram WAGO 784 613 Neutral disconnect terminal block 10mm
Circuit diagram
