Fieldbus digital module 0 In / 2 Out 750-512
Source photo:
WAGO
(fig. might be different or similar)

Fieldbus digital module 0 In / 2 Out 750-512

EAN/GTIN: 4045454428938
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 750-512
Customs tariff no.: 85371098
Similar top items: Show now & compare
52,44 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
20-22 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Fieldbus digital module 0 In / 2 Out Supply voltage DC 24 ... 24V, Voltage type of supply voltage DC, Number of digital inputs 0, Number of digital outputs 2, Type of digital output Relay, Output current 0,5A, Permitted voltage at output 230 ... 230V, Type of output voltage AC, Number of HW-interfaces industrial Ethernet 0, Number of interfaces PROFINET 0, Number of HW-interfaces RS-232 0, Number of HW-interfaces RS-422 0, Number of HW-interfaces RS-485 0, Number of HW-interfaces serial TTY 0, Number of HW-interfaces parallel 0, Number of HW-interfaces Wireless 0, Number of HW-interfaces USB 0, Number of HW-interfaces other 0, Supporting protocol for other bus systems, System accessory, Degree of protection (IP) IP20, Type of electric connection Spring clamp connection, Fieldbus connection over separate bus coupler possible, Rail mounting possible, Explosion safety category for gas ATEX gas-ex-protection, Cat. 3G, Explosion safety category for dust ATEX dust-ex-protection, Cat. 3D, Width 12mm, Height 73mm, Depth 100mm

More product images:

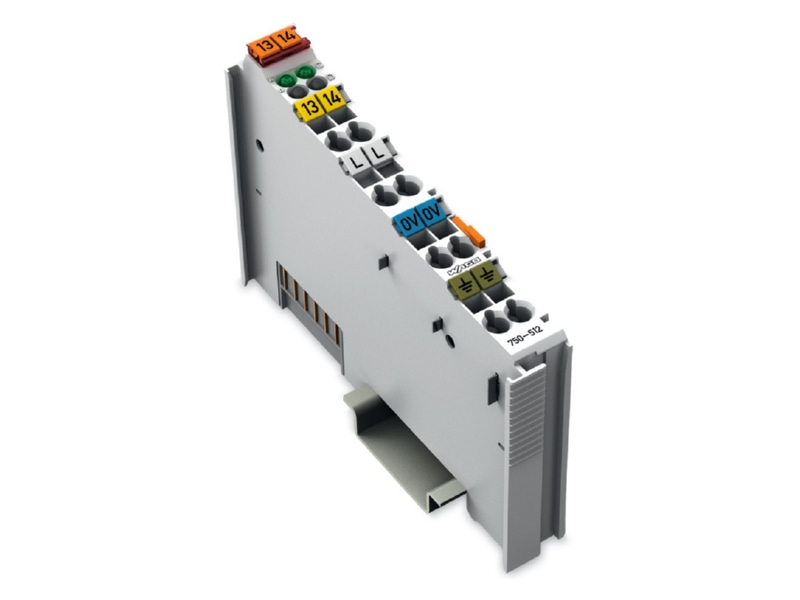

Product image WAGO 750 512 Fieldbus digital module 0 In   2 Out
Product image

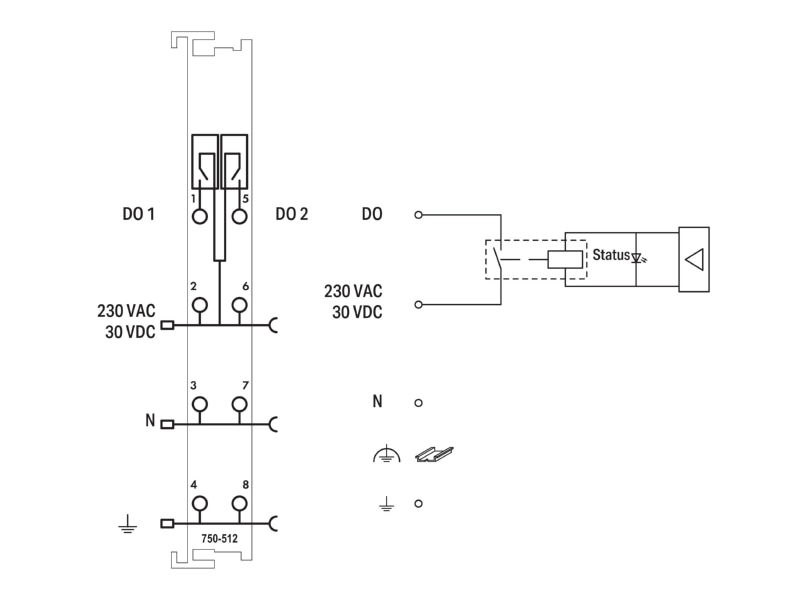

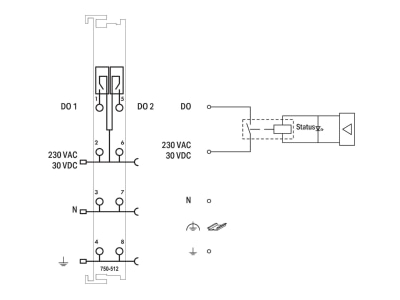

Circuit diagram WAGO 750 512 Fieldbus digital module 0 In   2 Out
Circuit diagram
