Fieldbus analogue module 2 In / 0 Out 750-466

EAN/GTIN: 4045454392949
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 750-466
Customs tariff no.: 85389099
Similar top items: Show now & compare
182,52 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
20-22 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Fieldbus analogue module 2 In / 0 Out Supply voltage DC 24 ... 24V, Voltage type of supply voltage DC, Input, current, Resolution of the analogue inputs 12Bit, Number of analogue inputs 2, Number of analogue outputs 0, Number of HW-interfaces industrial Ethernet 0, Number of interfaces PROFINET 0, Number of HW-interfaces RS-232 0, Number of HW-interfaces RS-422 0, Number of HW-interfaces RS-485 0, Number of HW-interfaces serial TTY 0, Number of HW-interfaces parallel 0, Number of HW-interfaces Wireless 0, Number of HW-interfaces other 0, System accessory, Degree of protection (IP) IP20, Type of electric connection Spring clamp connection, Fieldbus connection over separate bus coupler possible, Rail mounting possible, Explosion safety category for gas ATEX gas-ex-protection, Cat. 3G, Explosion safety category for dust ATEX dust-ex-protection, Cat. 3D, Width 12mm, Height 64mm, Depth 100mm

More product images:

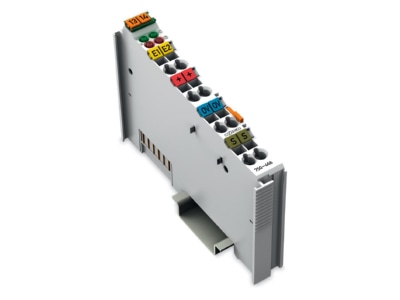

Front view WAGO 750-466 Fieldbus analogue module 2 In / 0 Out
Front view
View on the left WAGO 750-466 Fieldbus analogue module 2 In / 0 Out
View on the left
View on the right WAGO 750-466 Fieldbus analogue module 2 In / 0 Out
View on the right
Back view WAGO 750-466 Fieldbus analogue module 2 In / 0 Out
Back view
View up front WAGO 750-466 Fieldbus analogue module 2 In / 0 Out
View up front
View top left WAGO 750-466 Fieldbus analogue module 2 In / 0 Out
View top left
View top right WAGO 750-466 Fieldbus analogue module 2 In / 0 Out
View top right
Top rear view WAGO 750-466 Fieldbus analogue module 2 In / 0 Out
Top rear view
Product image WAGO 750 466 Fieldbus analogue module 2 In   0 Out
Product image

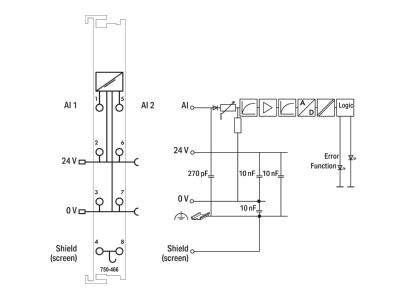

Circuit diagram WAGO 750 466 Fieldbus analogue module 2 In   0 Out
Circuit diagram
