Feed-through terminal block 4,2mm 18A 2001-1202

EAN/GTIN: 4017332997300
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 2001-1202
Customs tariff no.: 85369010
Order level:
(minimum)
100 pce
Similar top items: Show now & compare
42,58 GBP Price incl. VAT (0,00 GBP)
(for 100 pce)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 100 pce orderable.
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Feed-through terminal block 4,2mm 18A Connectable conductor cross section fine-strand without cable end sleeve 0,25 ... 2,5mm², Connectable conductor cross section fine-strand with cable end sleeve 0,75 ... 1,5mm², Connectable conductor cross section solid-core 0,5 ... 2,5mm², Connectable conductor cross section multi-wired 0,25 ... 1,5mm², Rated current In 18A, Rated voltage 800V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Above, Number of levels 1, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature 105 ... 105°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 4,2mm, Height at lowest possible mounting height 32,9mm, Length 48,5mm, Explosion-tested version ´Ex e´, Closing plate required, Colour Orange, Internally connected stages

More product images:

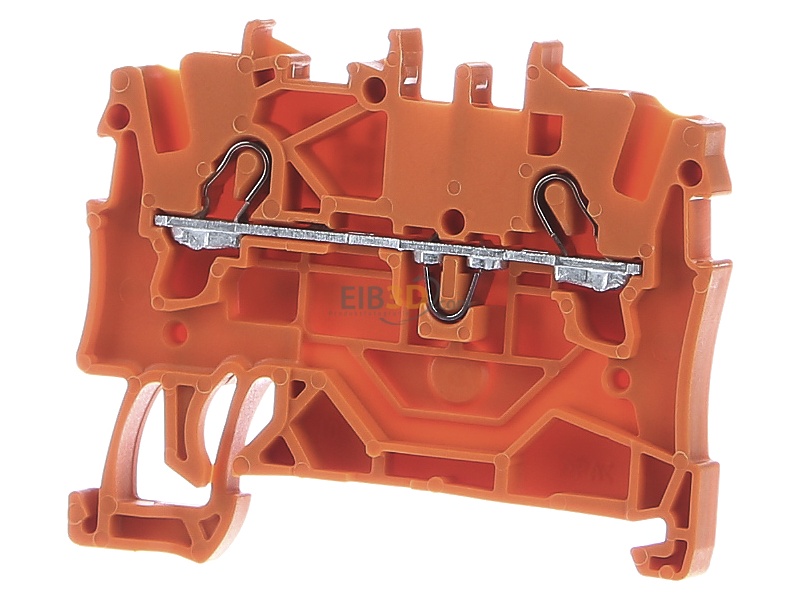

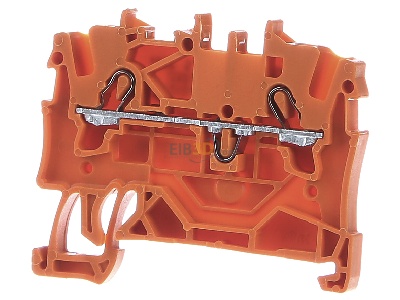

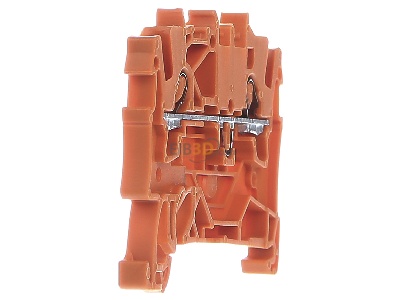

Front view WAGO Kontakttechnik 2001-1202 Feed-through terminal block 4,2mm 18A
Front view

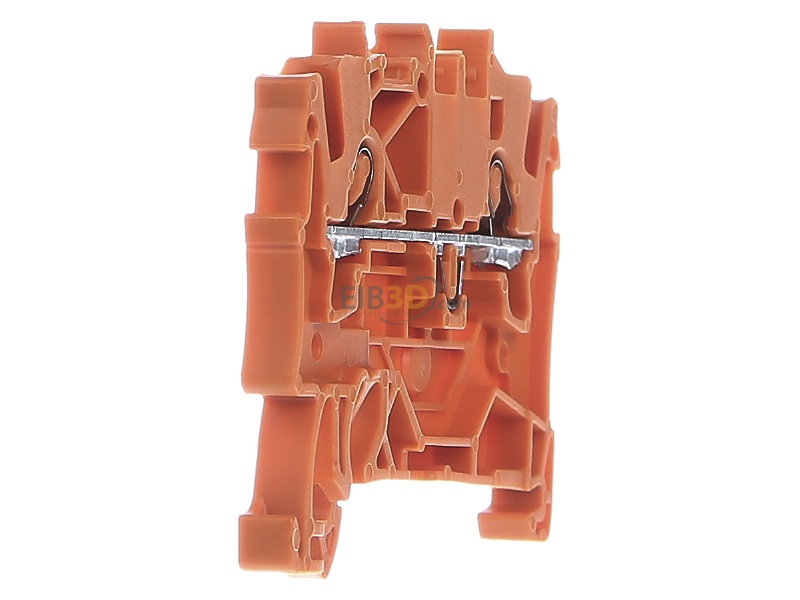

View on the left WAGO Kontakttechnik 2001-1202 Feed-through terminal block 4,2mm 18A
View on the left

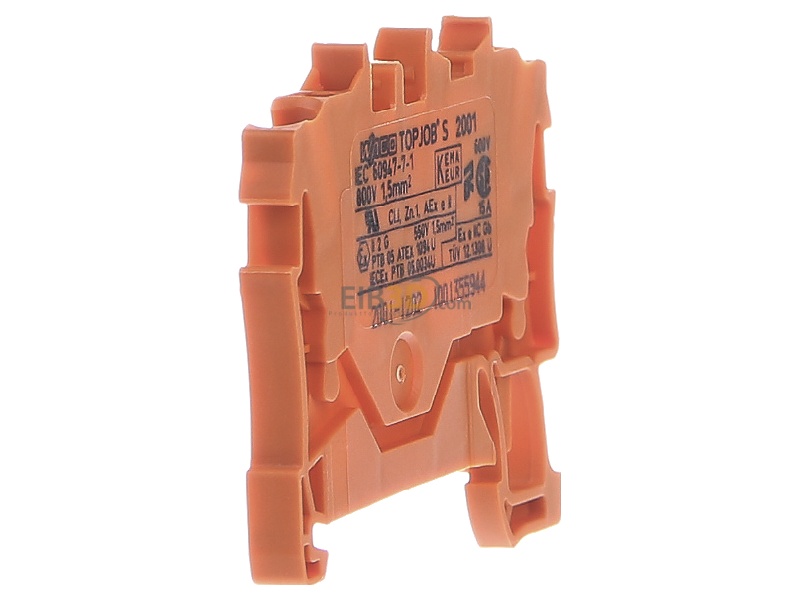

View on the right WAGO Kontakttechnik 2001-1202 Feed-through terminal block 4,2mm 18A
View on the right

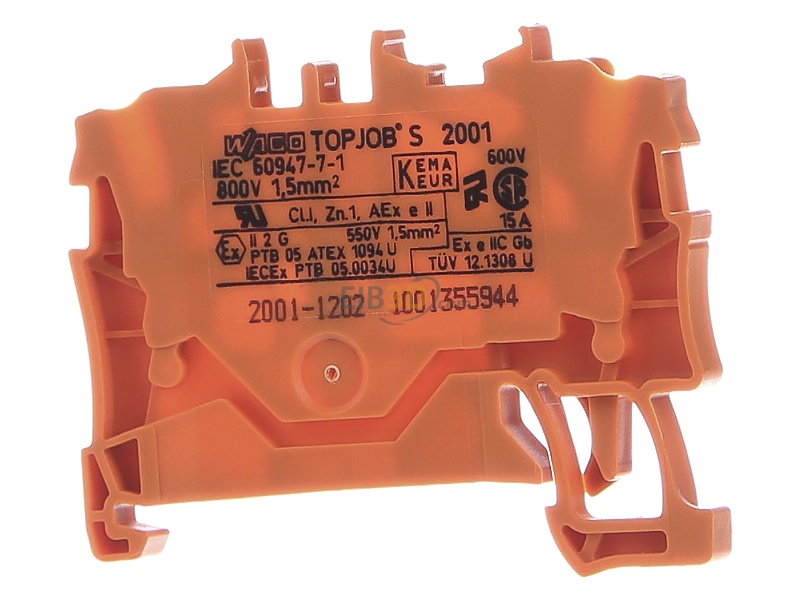

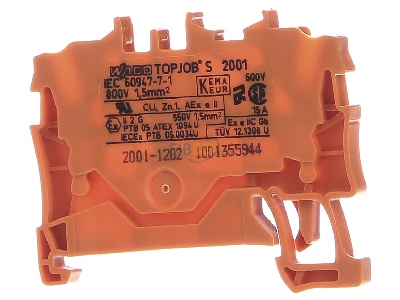

Back view WAGO Kontakttechnik 2001-1202 Feed-through terminal block 4,2mm 18A
Back view

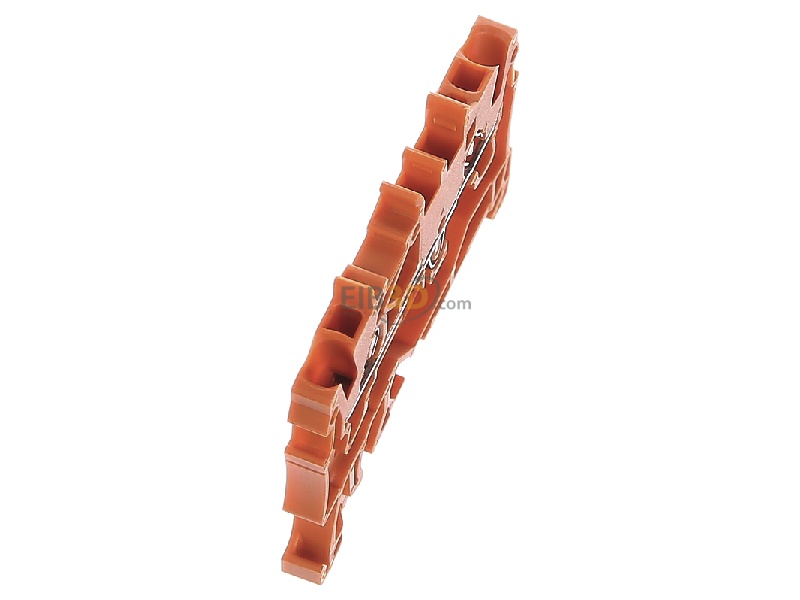

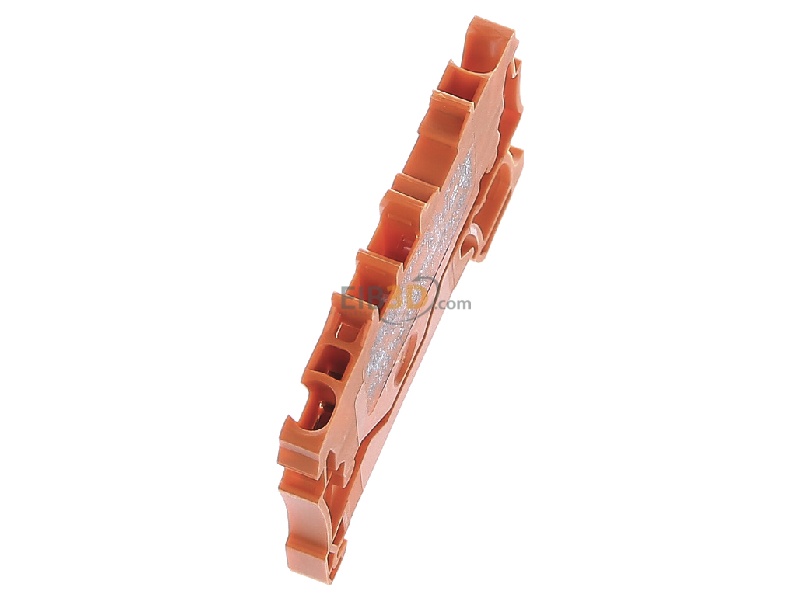

View up front WAGO Kontakttechnik 2001-1202 Feed-through terminal block 4,2mm 18A
View up front

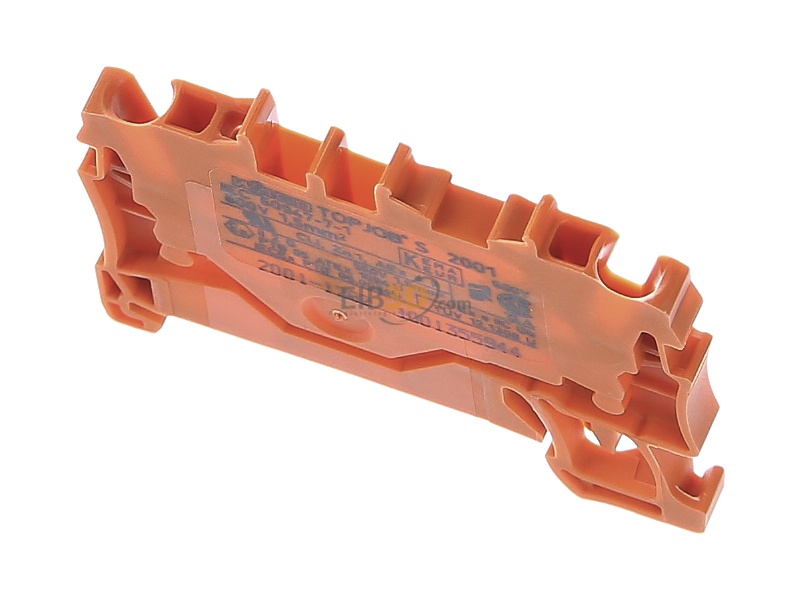

View top left WAGO Kontakttechnik 2001-1202 Feed-through terminal block 4,2mm 18A
View top left

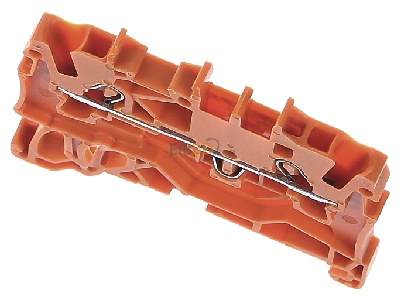

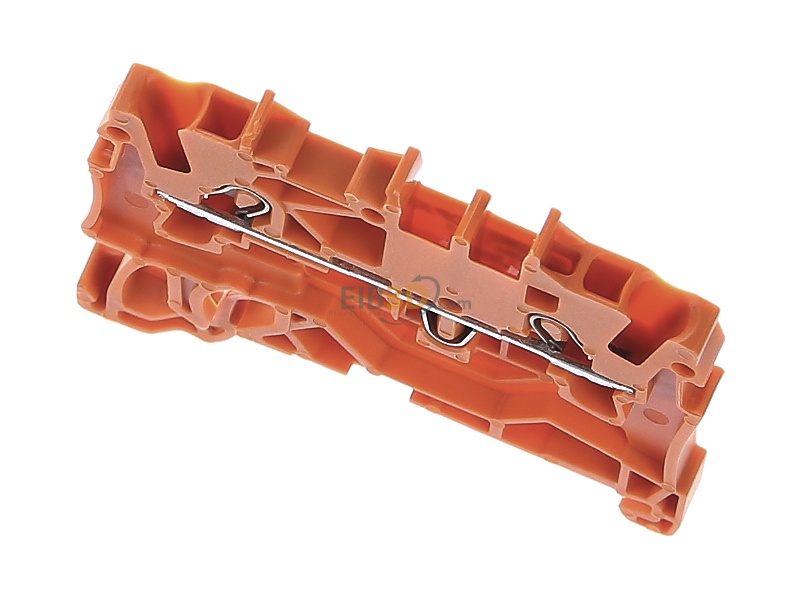

View top right WAGO Kontakttechnik 2001-1202 Feed-through terminal block 4,2mm 18A
View top right

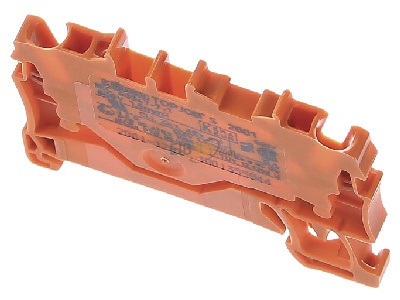

Top rear view WAGO Kontakttechnik 2001-1202 Feed-through terminal block 4,2mm 18A
Top rear view

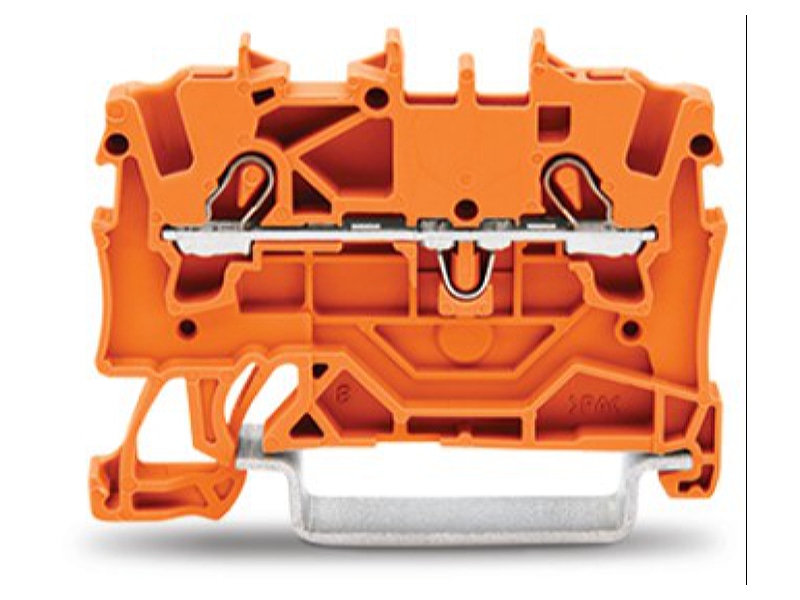

Product image WAGO 2001 1202 Feed through terminal block 4 2mm 18A
Product image

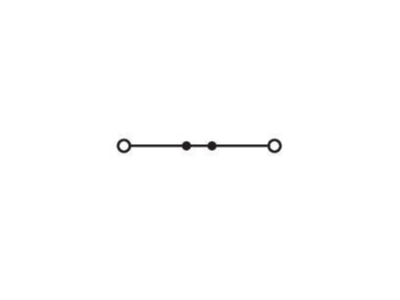

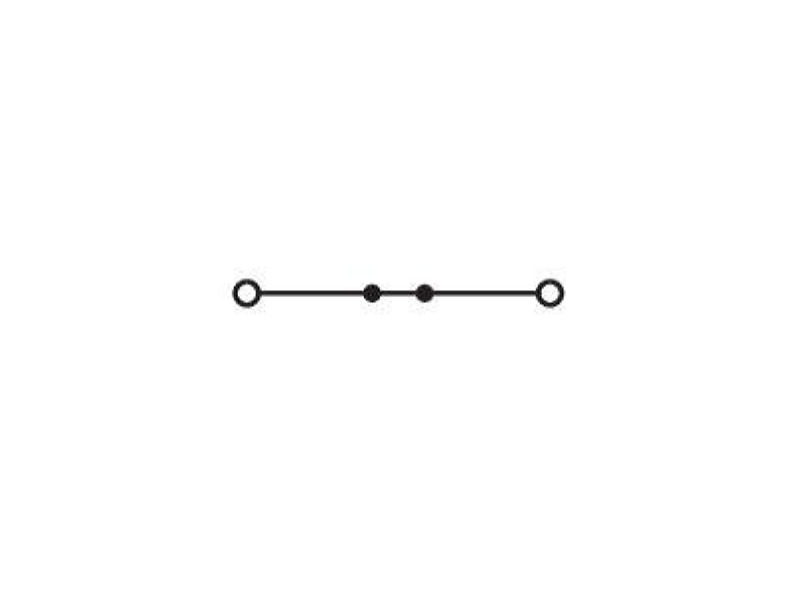

Circuit diagram WAGO 2001 1202 Feed through terminal block 4 2mm 18A
Circuit diagram
