DC-power supply 85...264V/22...29,5V 787-834
Source photo:
WAGO
(fig. might be different or similar)

DC-power supply 85...264V/22...29,5V 787-834

EAN/GTIN: 4050821085225
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 787-834
Customs tariff no.: 85044083
Similar top items: Show now & compare
361,38 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Voltage type of supply voltage=AC/DC, 1st secondary output voltage=22..29,5 V, Max. output current 1=20 A, Secondary voltage adjustable=yes, Nominal value output voltage 1=24 V, Nominal value output current 1=20 A, Short-circuit-proof=yes, Rated supply voltage at AC 50 Hz=85..264 V, Rated supply voltage at AC 60 Hz=85..264 V, Rated supply voltage at DC=120..350 V, Output voltage stabilized=yes, Stabilized=yes, Type of electric connection=Spring clamp connection, Rail mounting possible=yes, Wall mounting possible=no, Modular version=no, Width in number of modular spacings=6, Direct mounting possible=no, Width=97 mm, Height=171 mm, Depth=187 mm, Suitable for safety functions=no, Degree of protection (IP)=IP20

More product images:

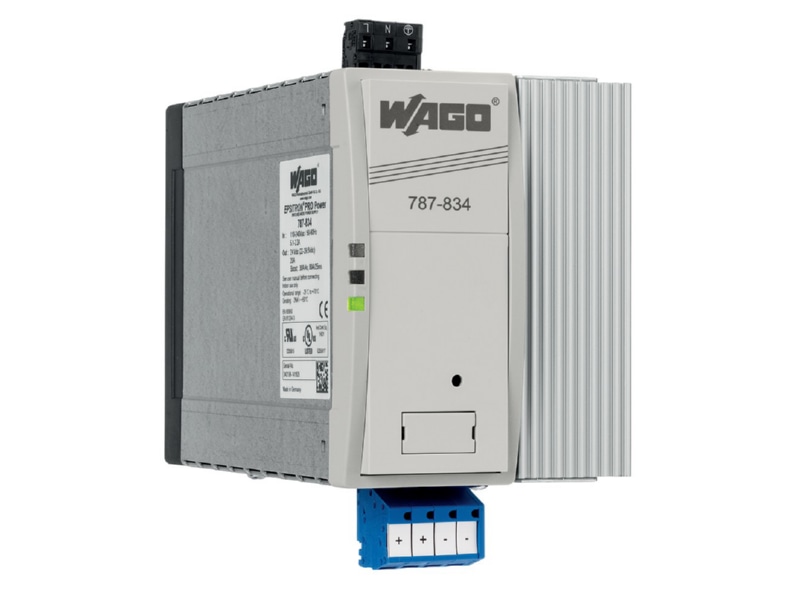

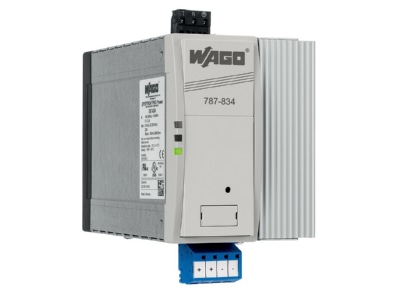

Product image WAGO 787 834 DC power supply 85   264V 22   29 5V
Product image

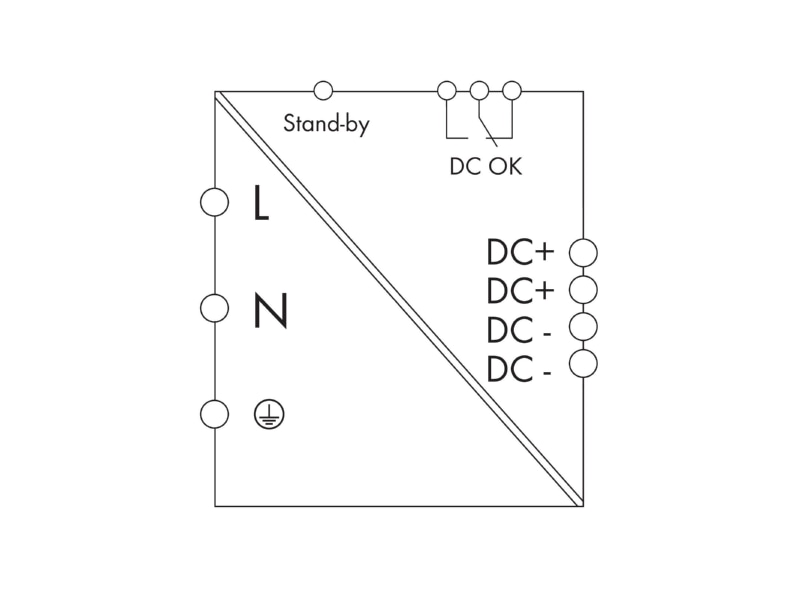

Circuit diagram WAGO 787 834 DC power supply 85   264V 22   29 5V
Circuit diagram
