Disconnect terminal block 16A 1-p 5,2mm 2002-1771
Source photo:
WAGO
(fig. might be different or similar)

Disconnect terminal block 16A 1-p 5,2mm 2002-1771

EAN/GTIN: 4050821707530
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 2002-1771
Customs tariff no.: 85365080
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
89,48 GBP Price incl. VAT (0,00 GBP)
(for 50 pce)
plus shipping
Delivery time:
20-22 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Disconnect terminal block 16A 1-p 5,2mm Connectable conductor cross section fine-strand without cable end sleeve 0,25 ... 4mm², Connectable conductor cross section fine-strand with cable end sleeve 0,75 ... 2,5mm², Connectable conductor cross section solid-core 0,75 ... 4mm², Connectable conductor cross section multi-wired 0,25 ... 2,5mm², Rated current In 16A, Rated voltage 400V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Above, Number of levels 1, Number of clamp positions per level 3, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Operation temperature 105 ... 105°C, Width/grid dimension 5,2mm, Height at lowest possible mounting height 32,9mm, Closing plate required, Colour Grey, Type of slitting None, Type of cross disconnection None, Length 76,8mm

More product images:

Product image WAGO 2002 1771 Disconnect terminal block 16A 1 p 5 2mm
Product image

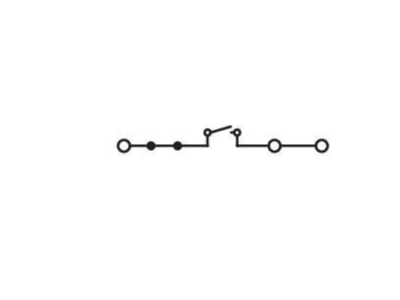

Circuit diagram WAGO 2002 1771 Disconnect terminal block 16A 1 p 5 2mm
Circuit diagram
