Boiler electric VEN 5 U excl+ 5L U
Source photo:
Vaillant
(fig. might be different or similar)

Boiler electric VEN 5 U excl+ 5L U

EAN/GTIN: 4024074802397
WEEE: DE 63643866
Manufacturer: Vaillant
Manufacturer no.: VEN 5 U excl+ 5L U
Manufact.-SKU: 0010021138
Customs tariff no.: 85169000
Similar top items: Show now & compare
117,79 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
20-22 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Boiler electric Energy efficiency class A, Energy efficiency class spectrum A+ to F, Material boiler tank Plastic, Surface material Plastic, Tank volume 5l, Nominal power 2kW, Connection voltage 230 ... 230V, Frequency 50 Hz, Design form Hanging, Heat-up time from 10°C ¿ 65°C 9min, Tap capacity at 60°C, continuous 5l/min, Wall set-up, Position, vertical, Temperature limit, Max. allowable operating pressure 0bar, With cleaning opening, Height 400mm, Width 240mm, Depth 232mm, Diameter 240mm, Cold tap water connection External thread, Nominal inner diameter, cold tap water 3/8 inch (10), External cold tap water tube diameter 16,7mm, Hot tap water connection External thread, Nominal internal diameter hot tap water 3/8 inch (10), Outer pipe diameter, hot tap water 16,7mm, Circulation pipe connection Other, Nominal inner diameter circulation pipe Other, Connection, drainage connection External thread, Nominal internal diameter drainage connection 3/8 inch (10), Degree of protection (IP) IP24, Water heating energy efficiency (Nwh) 38%, Capacity profile XXS

Attention! Application notice:
This item is a pressureless device (maximum permissible operating pressure = 0 bar). It must only be used with pressureless fittings (low-pressure fittings).

Please note the difference between high-pressure and low-pressure fittings. The high-pressure fitting mixes the water inside the fitting. The low-pressure fitting is connected to a water tank (boiler) and has 3 connections. When heated in the tank, the water expands, which can cause the fitting to drip.

More product images:

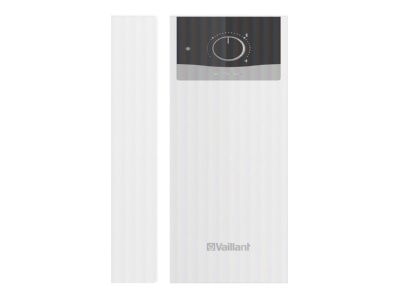

Product image Vaillant VEN 5 U excl  5L U Boiler electric
Product image

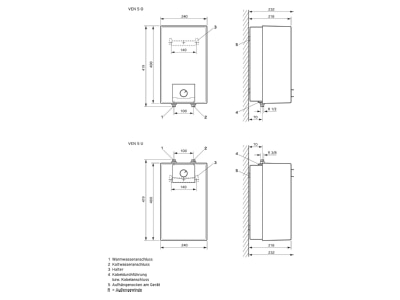

Dimensional drawing Vaillant VEN 5 U excl  5L U Boiler electric
Dimensional drawing
