Source photo: www.EIB3D.com

EIB, KNX outdoor motion detector, 300 degrees, white, theLuxa P300 KNX WH

EAN/GTIN: 4003468100370
WEEE: DE 48221059
Manufacturer: THEBEN
Manufacturer no.: theLuxa P300 KNX WH
Manufact.-SKU: 1019610
Customs tariff no.: 90314990
Similar top items: Show now & compare
101,28 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Movement sensor for home automation Bus system KNX, Model Movement sensor, Mounting method Surface mounted (plaster), Material Plastic, Material quality Thermoplastic, Surface protection Other, Surface finishing Matt, Colour White, RAL-number (akin) 9010, Bus connection included, Creep-under protection, Staircase monitoring, Response value luminosity adjustable, Teach-function for response value luminosity, Optimum mounting height 2,5m, Max. transmission range sideways 16m, Max. transmission range frontally 16m, Diameter detection range on floor 32m, Detection angle horizontal 0 ... 300°, Number of channels 2, Min. switch-on time 1s, Max. duty cycle 20min

More product images:

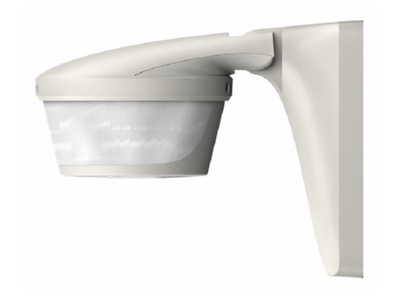

Front view Theben theLuxa P300 KNX WH EIB, KNX outdoor motion detector, 300 degrees, white,
Front view
View on the left Theben theLuxa P300 KNX WH EIB, KNX outdoor motion detector, 300 degrees, white,
View on the left
View on the right Theben theLuxa P300 KNX WH EIB, KNX outdoor motion detector, 300 degrees, white,
View on the right
Back view Theben theLuxa P300 KNX WH EIB, KNX outdoor motion detector, 300 degrees, white,
Back view
View up front Theben theLuxa P300 KNX WH EIB, KNX outdoor motion detector, 300 degrees, white,
View up front
View top left Theben theLuxa P300 KNX WH EIB, KNX outdoor motion detector, 300 degrees, white,
View top left
View top right Theben theLuxa P300 KNX WH EIB, KNX outdoor motion detector, 300 degrees, white,
View top right
Top rear view Theben theLuxa P300 KNX WH EIB, KNX outdoor motion detector, 300 degrees, white,
Top rear view
Product image Theben theLuxa P300 KNX WH EIB  KNX outdoor motion detector  300 degrees  white
Product image

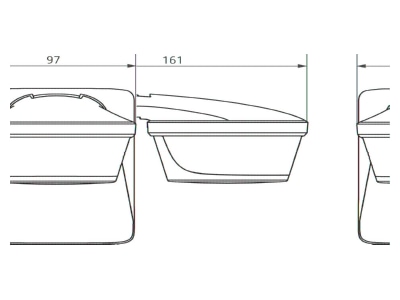

Dimensional drawing Theben theLuxa P300 KNX WH EIB  KNX outdoor motion detector  300 degrees  white
Dimensional drawing
