Movement sensor 4m theMovaS360-101AP WH

EAN/GTIN: 7612748005075
WEEE: DE 48221059
Manufacturer: THEBEN
Manufacturer no.: theMovaS360-101AP WH
Manufact.-SKU: 1030555
Customs tariff no.: 90314990
Similar top items: Show now & compare
73,92 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
20-22 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Movement sensor 4m Model Movement sensor, Sensor type Passive infrared, HVAC-control, Networkable, Optimum mounting height 2,5m, Staircase monitoring, Max. transmission range sideways 4m, Max. transmission range frontally 4m, Diameter detection range on floor 8m, Remote operation, Response value sensitivity adjustable, Response value luminosity adjustable, Teach-function for response value luminosity, Mounting method Surface mounted (plaster), Material Plastic, Material quality Thermoplastic, Surface protection Untreated, Surface finishing Matt, Colour White, RAL-number (akin) 9010, Degree of protection (IP) IP54, Voltage type AC, Frequency 50 ... 60Hz, Nominal voltage 230V, Min. switch-on time 10s, Max. duty cycle 60min, Switch-off delay 3600s, Switching-on delay 600s, Detection angle horizontal 0 ... 360°, Response value luminosity 5 ... 3000lx, Max. switching power 2300W, Temperature -15 ... 50°C, Max. starting current 10A

More product images:

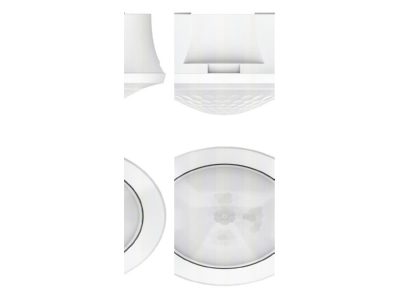

Front view Theben theMovaS360-101AP WH Motion sensor complete 0...360° white
Front view
View on the left Theben theMovaS360-101AP WH Motion sensor complete 0...360° white
View on the left
View on the right Theben theMovaS360-101AP WH Motion sensor complete 0...360° white
View on the right
Back view Theben theMovaS360-101AP WH Motion sensor complete 0...360° white
Back view
View up front Theben theMovaS360-101AP WH Motion sensor complete 0...360° white
View up front
View top left Theben theMovaS360-101AP WH Motion sensor complete 0...360° white
View top left
View top right Theben theMovaS360-101AP WH Motion sensor complete 0...360° white
View top right
Top rear view Theben theMovaS360-101AP WH Motion sensor complete 0...360° white
Top rear view
Product image Theben theMovaS360 101AP WH Movement sensor 4m
Product image

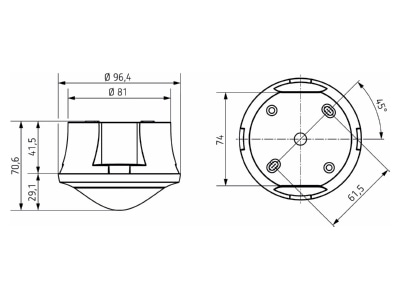

Dimensional drawing Theben theMovaS360 101AP WH Movement sensor 4m
Dimensional drawing
