Movement sensor 14m IS 140-2 SW
Source photo:
Steinel
(fig. might be different or similar)

Movement sensor 14m IS 140-2 SW

EAN/GTIN: 4007841608811
WEEE: DE 39896667
Manufacturer: Steinel
Manufacturer no.: IS 140-2 SW
Manufact.-SKU: 608811
Customs tariff no.: 85365080
Similar top items: Show now & compare
41,50 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Movement sensor 14m Model Movement sensor, Sensor type Passive infrared, Forced switch off, Creep-under protection, Optimum mounting height 2m, Max. transmission range sideways 14m, Max. transmission range frontally 14m, Diameter detection range on floor 6m, Response value luminosity adjustable, Suitable for wall mounting, Mounting method Surface mounted (plaster), Connection type Other, Material Plastic, Material quality Thermoplastic, Halogen free, Surface protection Other, Surface finishing Matt, Colour Black, RAL-number (akin) 9005, Degree of protection (IP) IP54, Voltage type AC, Frequency 50 ... 50Hz, Nominal voltage 240V, Min. switch-on time 8s, Max. duty cycle 35min, Switch-off delay 480s, Detection angle horizontal 140 ... 140°, Pivoting range sensor, horizontal 180 ... 180°, Pivoting range sensor, vertical 90 ... 90°, Response value luminosity 2 ... 2000lx, Max. switching power 1000W, Suitable for C-load, Temperature -20 ... 50°C, Number of switching zones 144, Max. starting current 120A, Width 86mm, Height 95mm

More product images:

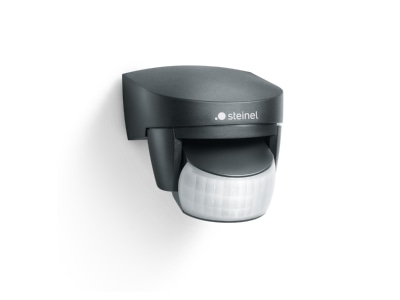

Product image Steinel IS 140 2 SW Movement sensor 14m
Product image

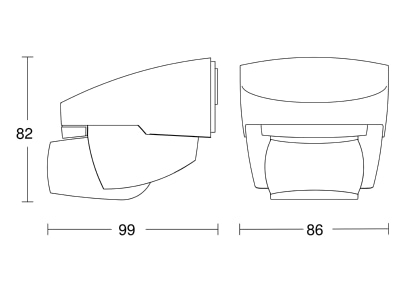

Dimensional drawing Steinel IS 140 2 SW Movement sensor 14m
Dimensional drawing
