Source photo: www.EIB3D.com

Safety relay 24V DC EN954-1 Cat 4 SRB 301MC

EAN/GTIN: 4250116202249
WEEE: DE 24486642
Manufacturer: Schmersal
Manufacturer no.: SRB 301MC
Manufact.-SKU: 101190684
Customs tariff no.: 85371098
Similar top items: Show now & compare
164,41 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Safety relay 24V DC EN954-1 Cat 4 Model Basic device, Suitable for monitoring of position switches, Suitable for monitoring of emergency-stop circuits, Suitable for monitoring of tactile sensors, Type of electric connection Screw connection, Rail mounting possible, Rated control supply voltage Us at AC 50HZ 24 ... 24V, Rated control supply voltage Us at AC 60HZ 24 ... 24V, Rated control supply voltage Us at DC 24 ... 24V, Voltage type for actuating DC, Evaluation inputs 1-channel, Number of outputs, safety related, instantaneous, with contact 3, Number of outputs, safety related, delayed, with contact 0, Number of outputs, safety related, instantaneous, semiconductors 0, Number of outputs, safety related, delayed, semiconductors 0, Number of outputs, signalling function, instantaneous, with contact 1, Number of outputs, signalling function, delayed, with contact 0, Number of outputs, signalling function, instantaneous, semiconductors 0, Number of outputs, signalling function, delayed, semiconductors 0, Category according to EN 954-1 4, Stop category acc. IEC 60204 0, Performance level acc. EN ISO 13849-1 Level e, With approval for BG BIA, With approval according to UL, Width 22,5mm, Height 100mm, Depth 121mm

More product images:

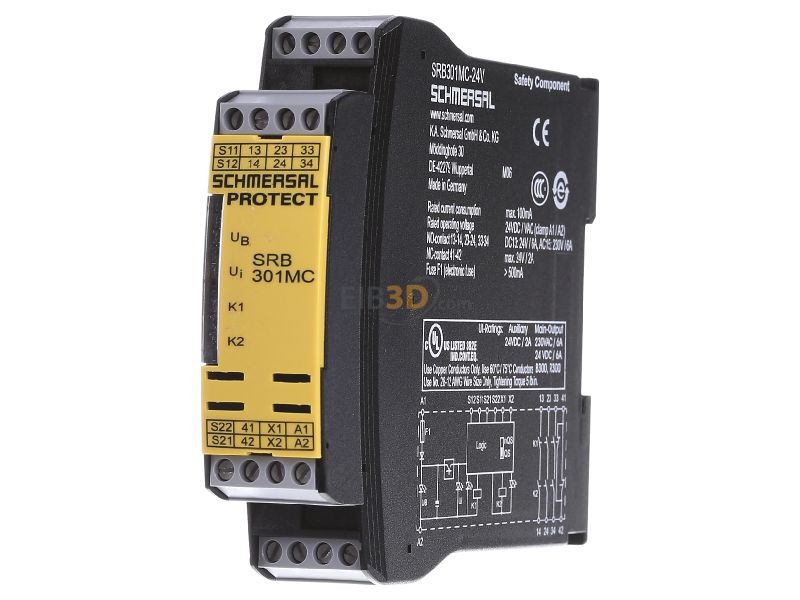

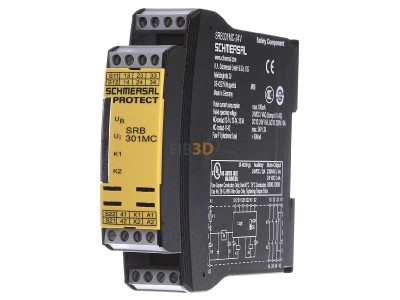

Front view Schmersal SRB 301MC Safety relay 24V DC EN954-1 Cat 4
Front view

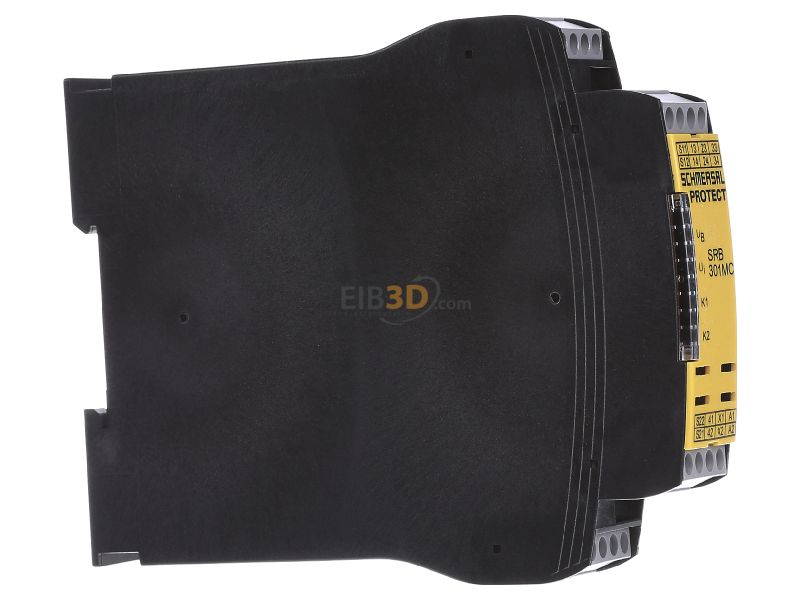

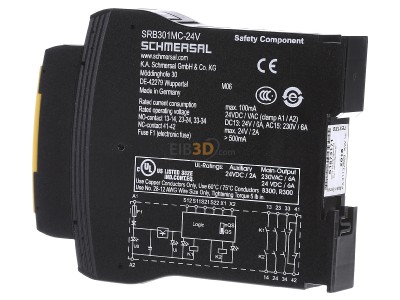

View on the left Schmersal SRB 301MC Safety relay 24V DC EN954-1 Cat 4
View on the left

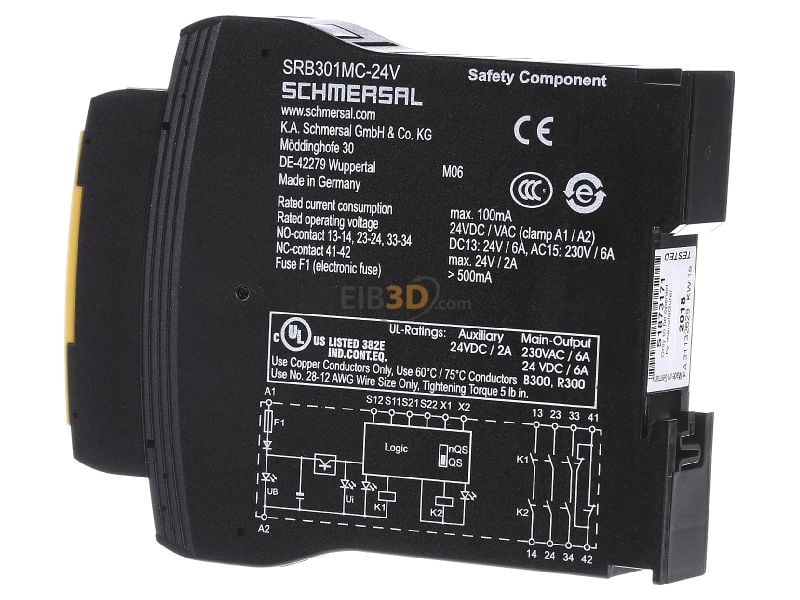

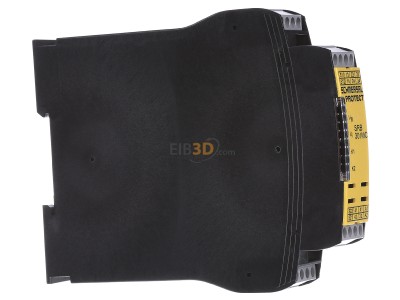

View on the right Schmersal SRB 301MC Safety relay 24V DC EN954-1 Cat 4
View on the right

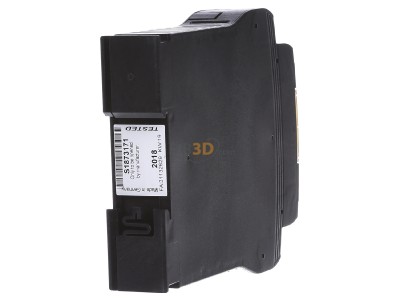

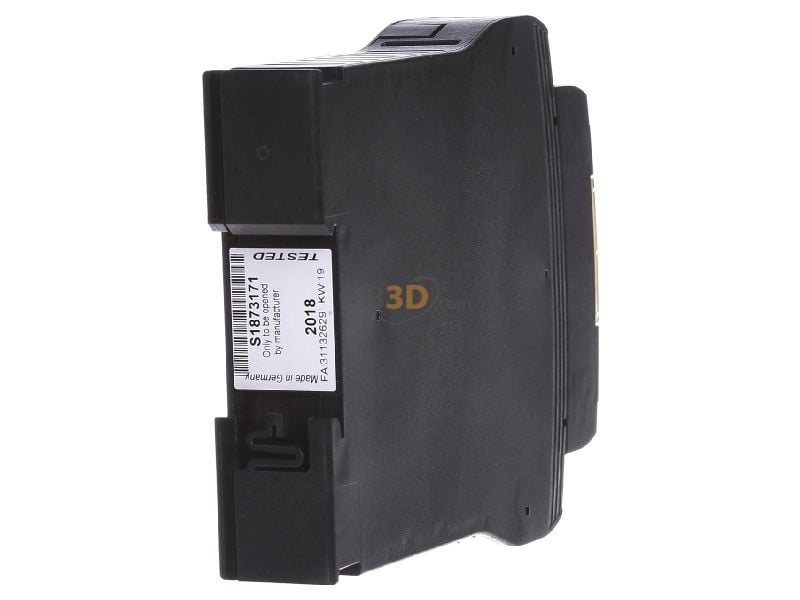

Back view Schmersal SRB 301MC Safety relay 24V DC EN954-1 Cat 4
Back view
View up front Schmersal SRB 301MC Safety relay 24V DC EN954-1 Cat 4
View up front

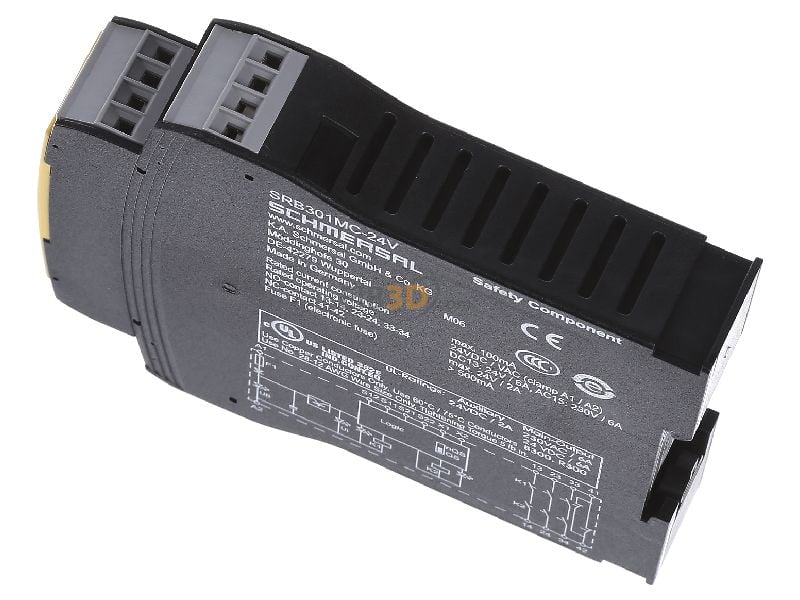

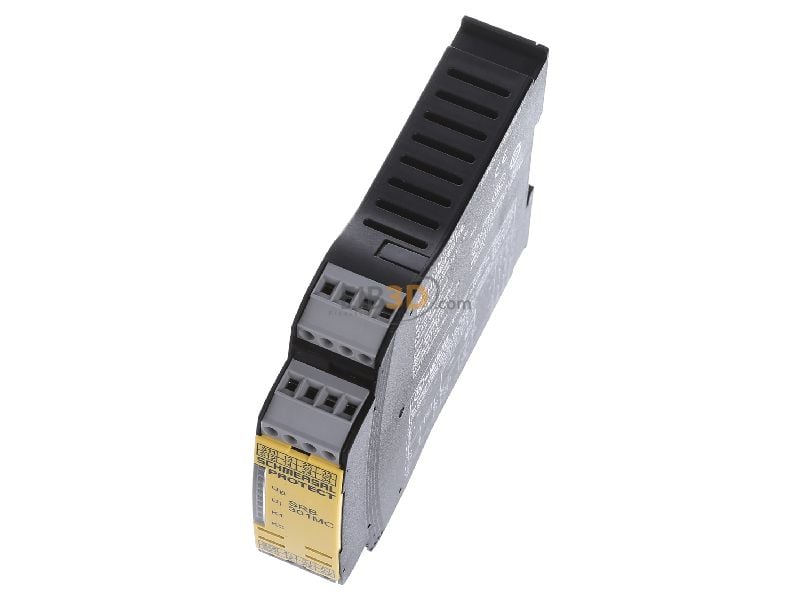

View top left Schmersal SRB 301MC Safety relay 24V DC EN954-1 Cat 4
View top left

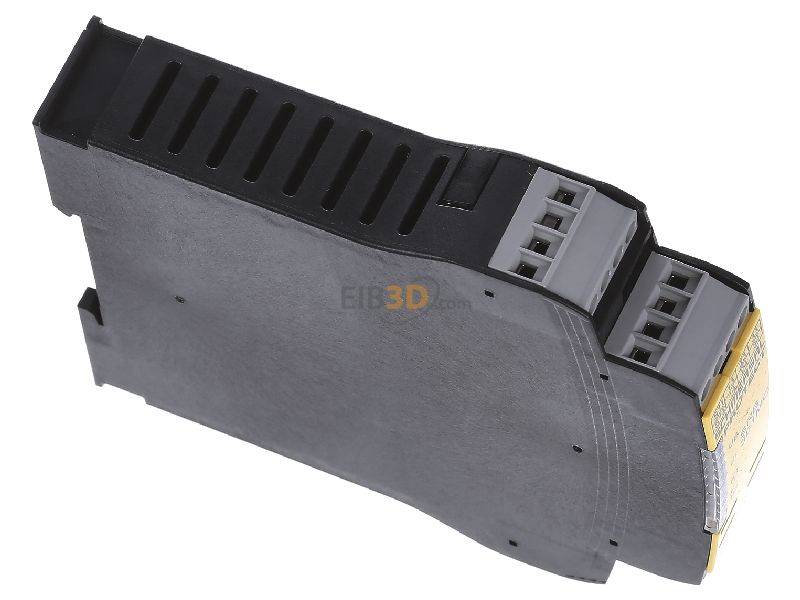

View top right Schmersal SRB 301MC Safety relay 24V DC EN954-1 Cat 4
View top right

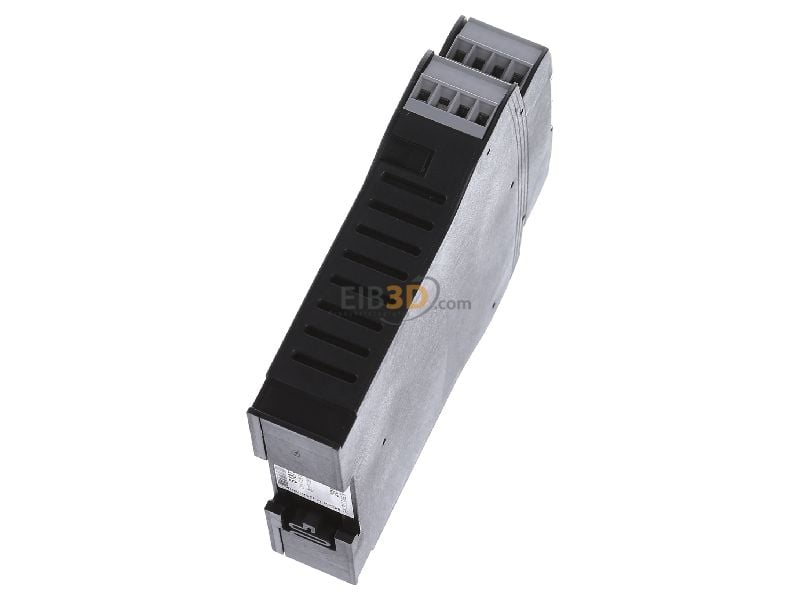

Top rear view Schmersal SRB 301MC Safety relay 24V DC EN954-1 Cat 4
Top rear view

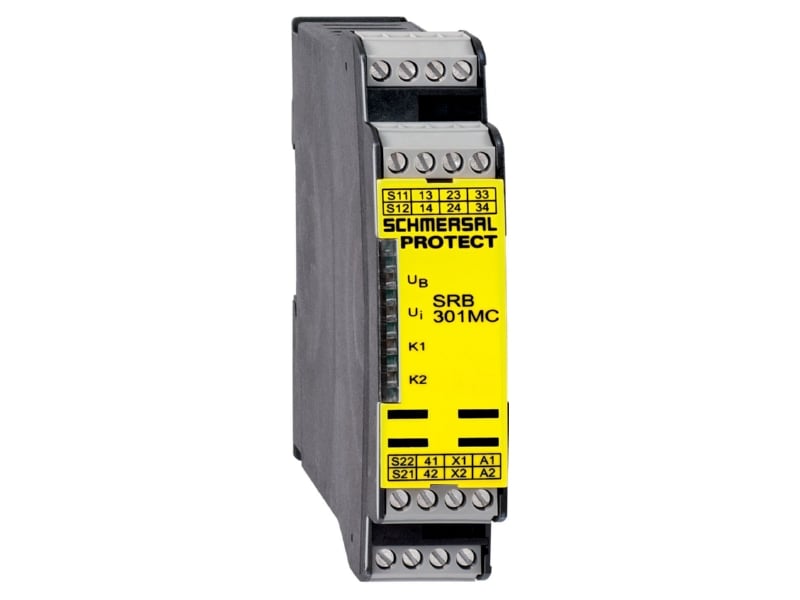

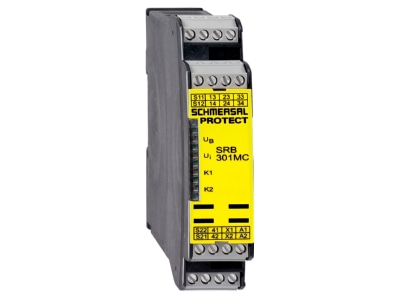

Product image Schmersal SRB 301MC Safety relay 24V DC EN954 1 Cat 4
Product image

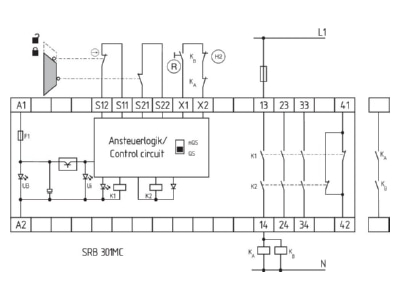

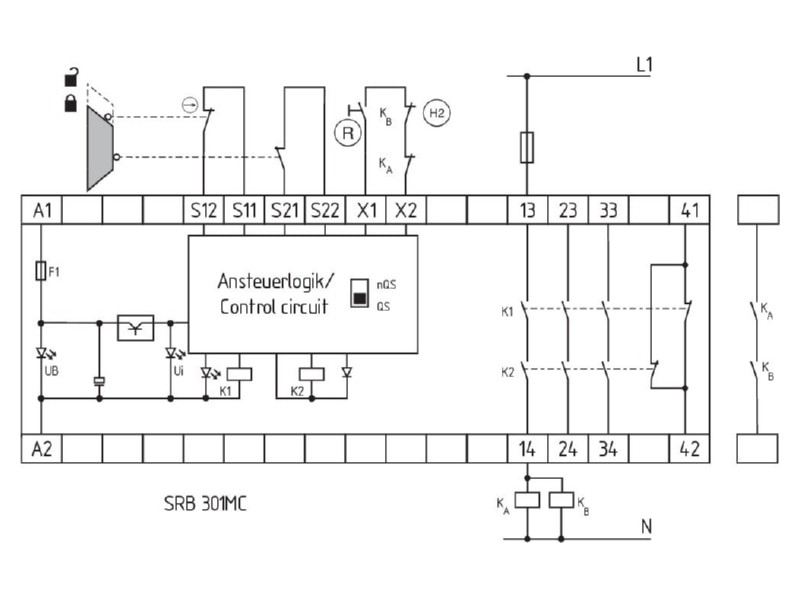

Wiring plan Schmersal SRB 301MC Safety relay 24V DC EN954 1 Cat 4
Wiring plan
