Source photo: www.EIB3D.com

Inductive proximity switch 20mm XS8C4A1PCG13

EAN/GTIN: 3389119058230
Manufacturer: STHU
Manufacturer no.: XS8C4A1PCG13
Customs tariff no.: 85365019
Similar top items: Show now & compare
44,80 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Width sensor=117 mm, Height of sensor=40 mm, Length of sensor=40 mm, Mechanical mounting condition for sensor=Concise, Switching distance=20 mm, Suitable for safety functions=no, Type of switch function=Other, Type of switching output=PNP/PNP, Type of electric connection=Screw connection, Number of semiconductor outputs with signalling function=2, Number of protected semiconductor outputs=2, Type of actuation=Metallic Target, Type of interface=None, Type of interface for safety communication=None, Construction type housing=Cuboid, Coating housing=Other, Cascadable=no, SIL according to IEC 61508=None, Performance level according to EN ISO 13849-1=None, Max. output current at protected output=200 mA, Supply voltage=12..48 V, Rated control supply voltage Us at DC=12..48 V, Voltage type=AC/DC, Switching frequency=300 Hz, With monitoring function downstream switching devices=no, Material housing=Plastic, Compression-resistant=no, Explosion safety category for gas=None, Explosion safety category for dust=None, Interference resistance to magnetic fields=Immune against magnetic DC-field

More product images:

Front view STHU XS8C4A1PCG13 Inductive proximity switch 20mm
Front view
View on the left STHU XS8C4A1PCG13 Inductive proximity switch 20mm
View on the left
View on the right STHU XS8C4A1PCG13 Inductive proximity switch 20mm
View on the right
Back view STHU XS8C4A1PCG13 Inductive proximity switch 20mm
Back view

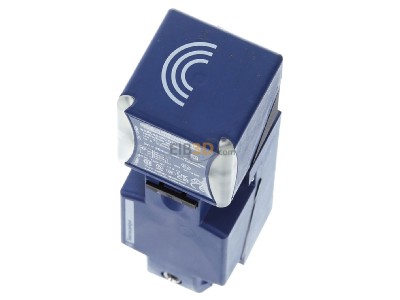

View up front STHU XS8C4A1PCG13 Inductive proximity switch 20mm
View up front

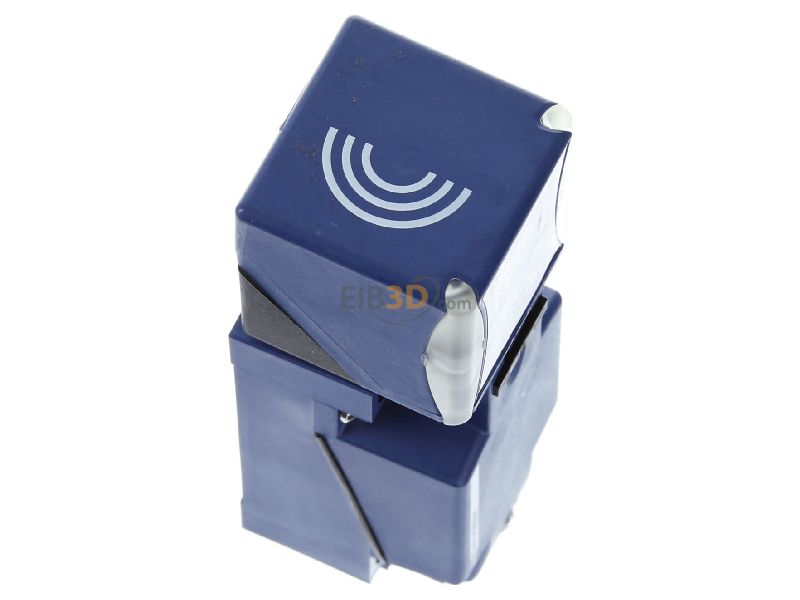

View top left STHU XS8C4A1PCG13 Inductive proximity switch 20mm
View top left

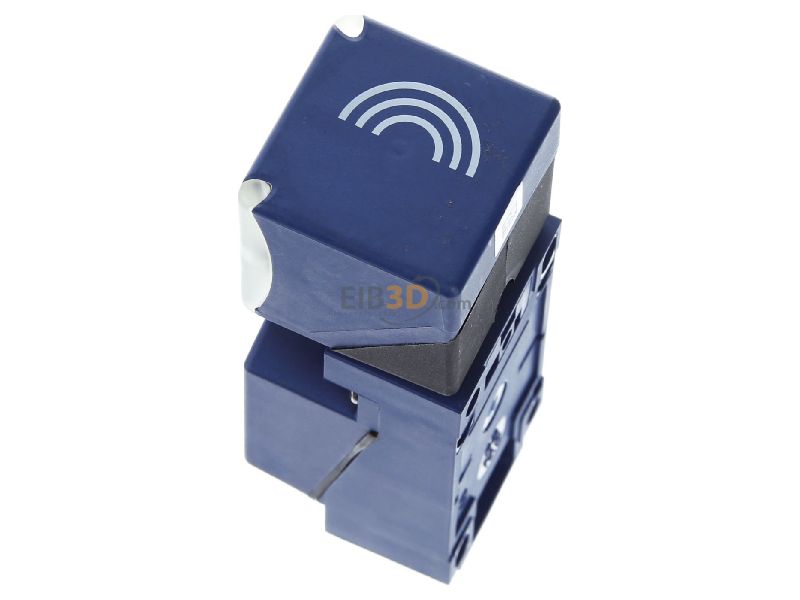

View top right STHU XS8C4A1PCG13 Inductive proximity switch 20mm
View top right
Top rear view STHU XS8C4A1PCG13 Inductive proximity switch 20mm
Top rear view
