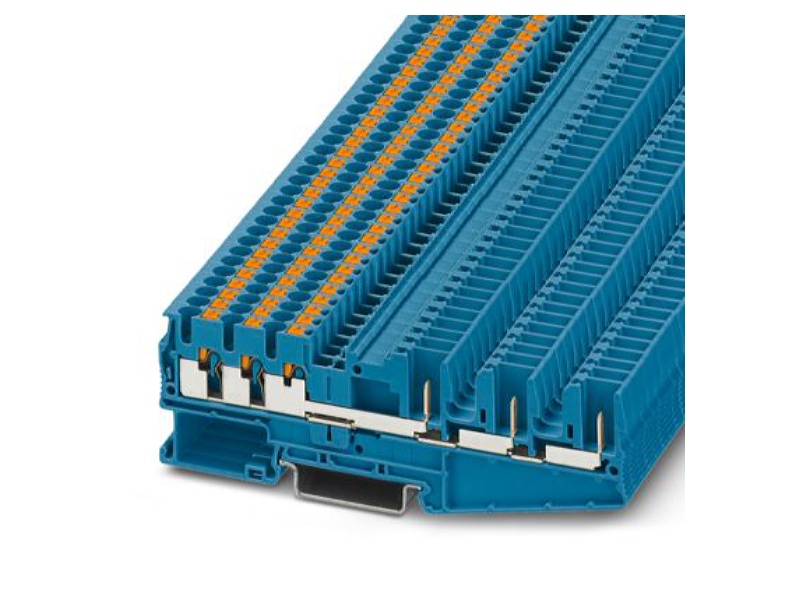

Feed-through terminal block 5,2mm 24A PT 2,5-HEXA/3P BU
Source photo:
Phoenix
(fig. might be different or similar)

Feed-through terminal block 5,2mm 24A PT 2,5-HEXA/3P BU

EAN/GTIN: 4046356925532
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: PT 2,5-HEXA/3P BU
Manufact.-SKU: 3040048
Customs tariff no.: 85369010
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
50,77 GBP Price incl. VAT (0,00 GBP)
(for 50 pce)
plus shipping
Delivery time:
14-16 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Feed-through terminal block 5,2mm 24A Connectable conductor cross section fine-strand without cable end sleeve 0,14 ... 2,5mm², Connectable conductor cross section fine-strand with cable end sleeve 0,14 ... 2,5mm², Connectable conductor cross section solid-core 0,14 ... 2,5mm², Connectable conductor cross section multi-wired 0,14 ... 2,5mm², Rated current In 24A, Rated voltage 500V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Number of levels 1, Number of clamp positions per level 6, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 5,2mm, Height at lowest possible mounting height 35,3mm, Length 111,2mm, Closing plate required, Colour Blue
