EIB/KNX Switch Actuator 8-fold, 8SU MDRC, 16/20A, 230VAC, C-load, 200µF, AKI-0816.04

EAN/GTIN: 4251916130176
WEEE: DE 14025511
Manufacturer: MDT
Manufacturer no.: AKI-0816.04
Customs tariff no.: 85371091
Similar top items: Show now & compare
171,72 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

KNX Switch Actuator 8-fold, 8SU MDRC, 16/20 A, 230 V AC, C-load, industrie, 200 µF. Switch Actuator with bistable relays, for heavy C-loads. Current max. 16/20 A, capacitive load max. 200 µF. Comprehensive function extension. Mechanical manual operation for direct actuation of the relay contact, status visible. NO and NC contact operation. Time functions (switch-on/switch-off delay). Extensive staircase light and impulse functions. Extended logical and scene functions for each channel. Extended status functions (inverted, cyclic, at block). Treshold switch (Byte/2 Byte/2 Byte float). Hour meter for switching. Priority/forced operation with automatic release time. 4 mm² / 2x2,5 mm² screw terminals. Separate supply phases. Power supply via KNX bus. Quick application download (long frame support for ETS5).

More product images:

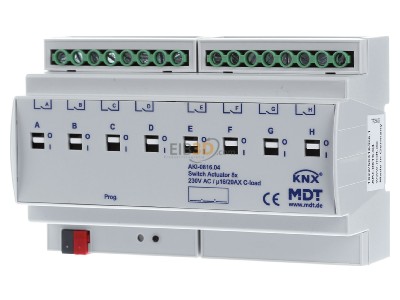

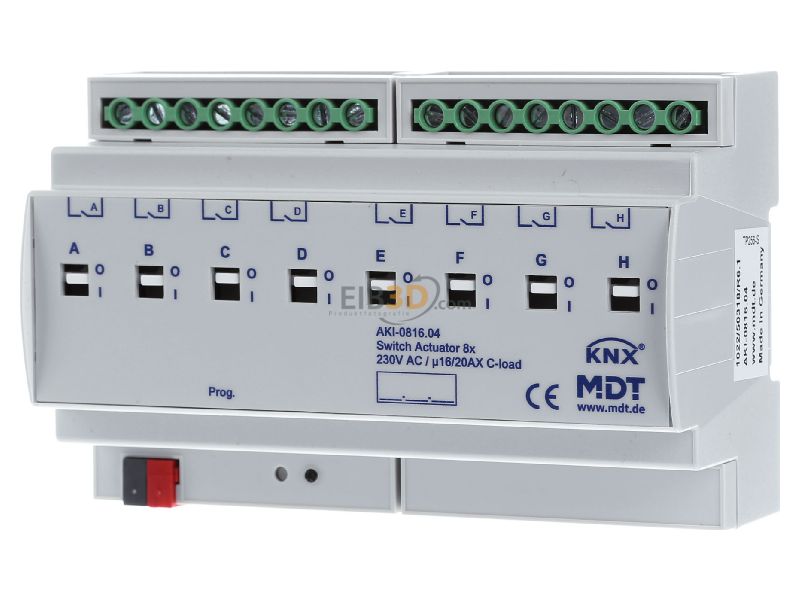

Front view MDT AKI-0816.04 EIB/KNX Switch Actuator 8-fold, 8SU MDRC, 16/20A, 230VAC, C-load, 200µF,
Front view

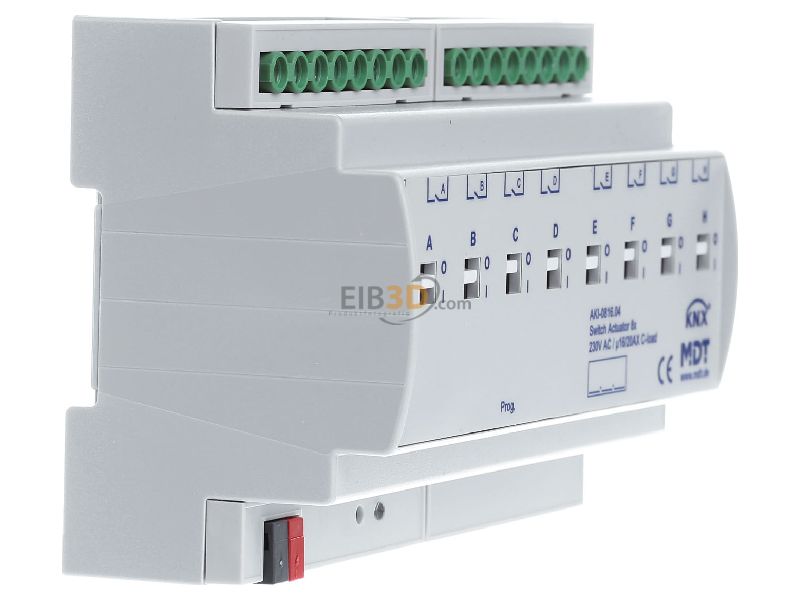

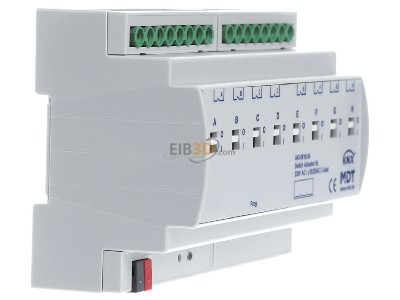

View on the left MDT AKI-0816.04 EIB/KNX Switch Actuator 8-fold, 8SU MDRC, 16/20A, 230VAC, C-load, 200µF,
View on the left

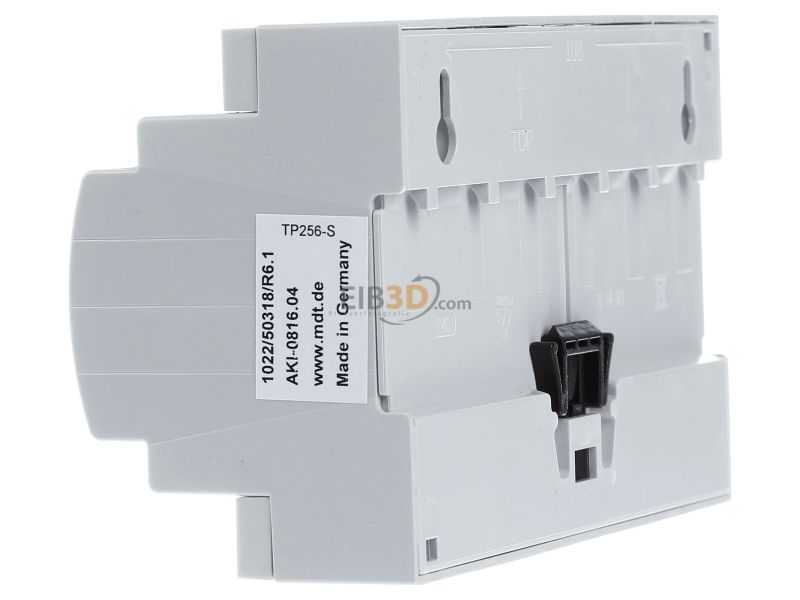

View on the right MDT AKI-0816.04 EIB/KNX Switch Actuator 8-fold, 8SU MDRC, 16/20A, 230VAC, C-load, 200µF,
View on the right

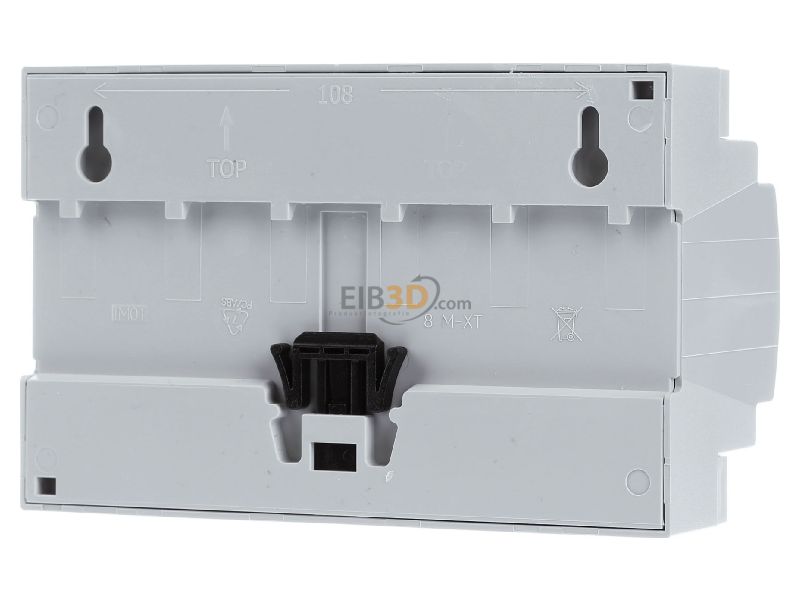

Back view MDT AKI-0816.04 EIB/KNX Switch Actuator 8-fold, 8SU MDRC, 16/20A, 230VAC, C-load, 200µF,
Back view

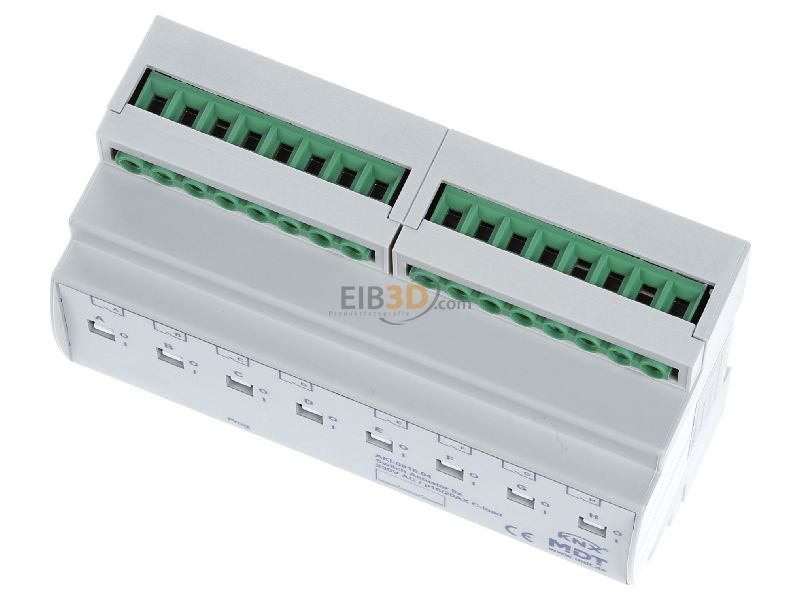

View up front MDT AKI-0816.04 EIB/KNX Switch Actuator 8-fold, 8SU MDRC, 16/20A, 230VAC, C-load, 200µF,
View up front

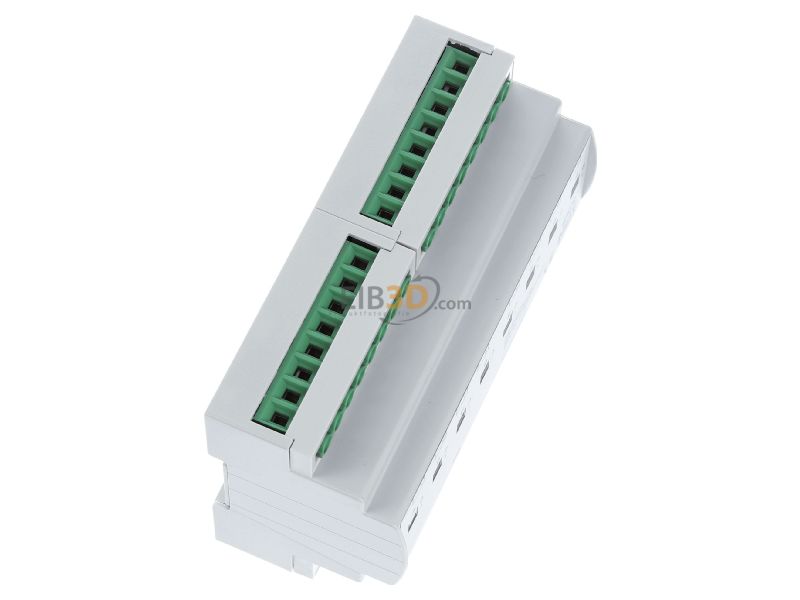

View top left MDT AKI-0816.04 EIB/KNX Switch Actuator 8-fold, 8SU MDRC, 16/20A, 230VAC, C-load, 200µF,
View top left

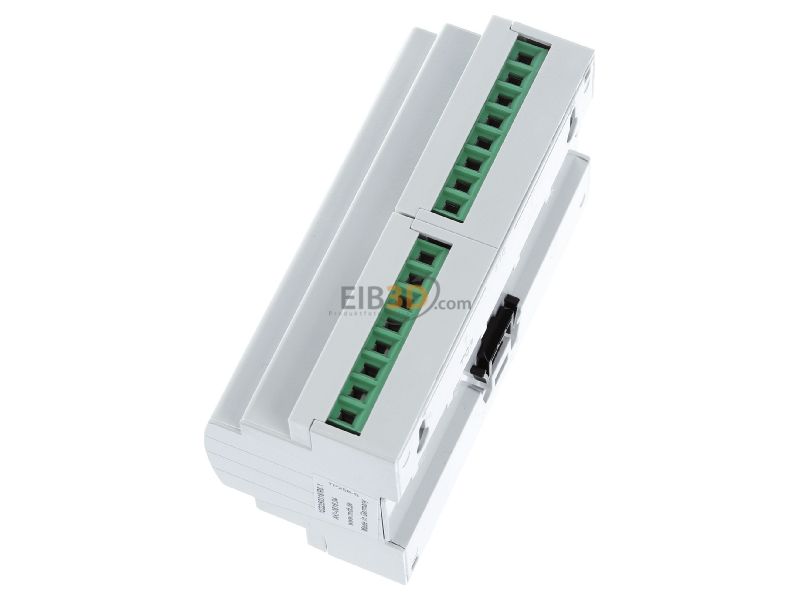

View top right MDT AKI-0816.04 EIB/KNX Switch Actuator 8-fold, 8SU MDRC, 16/20A, 230VAC, C-load, 200µF,
View top right

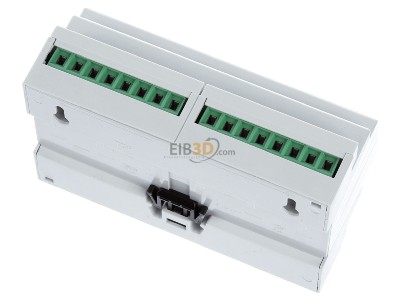

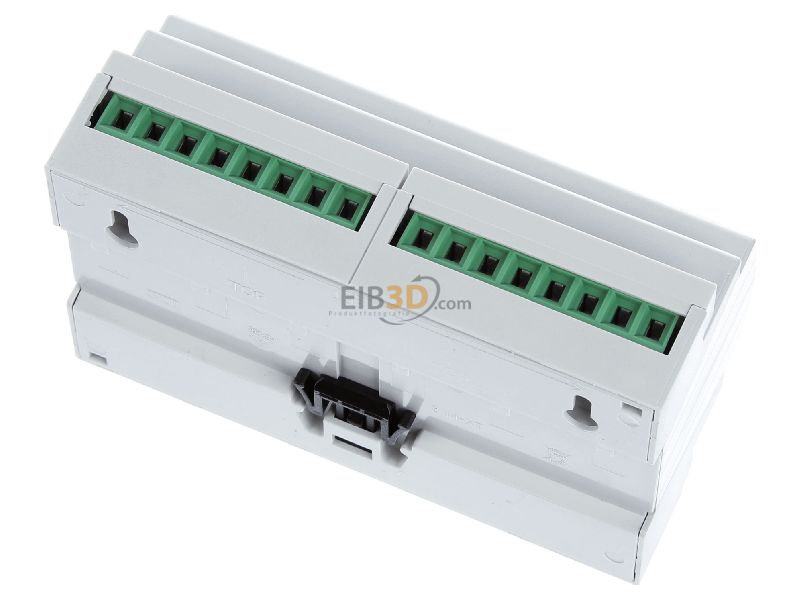

Top rear view MDT AKI-0816.04 EIB/KNX Switch Actuator 8-fold, 8SU MDRC, 16/20A, 230VAC, C-load, 200µF,
Top rear view
