EIB/KNX Heating Actuator 4-fold, 2SU MDRC, 24-230VAC - AKH-0400.03

EAN/GTIN: 4251916130114
WEEE: DE 14025511
Manufacturer: MDT
Manufacturer no.: AKH-0400.03
Customs tariff no.: 85371091
Similar top items: Show now & compare
89,44 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

KNX Heating Actuator 4-fold, 2SU MDRC, 24-230 V AC. Heating Actuator to control electrothermic valve drives. LED indicator for each channel. New generation with extended functionality. Each channel controls up to 4 electrothermic valve drives (230 V AC). Free assignment of the outputs to the controller channel. Controllable with 1 Bit (Switching/PWM) / 1 Byte actuating variable or direct control with temperature value via KNX bus. Integrated PI temperature controller (Heating and Cooling). Comfort-, night- and frost protection. Summer-/winter operation. 1 Bit +/-, 1 Byte or 2 Byte absolute object to set the given value. Setpoint values are stored at bus voltage failure. Emergency operation if cyclic actuating variable fails. Overload protection with fault message object (230 V AC). Mains voltage failure detection with fault message object (230 V AC). Objects for heating request and cyclic movement of the valves. Comprehensive scene functions. Compatible with many visualisations. Minimum flow temperature. Diagnostics for each channel with 14 Byte plain text object. Quick application download (long frame support for ETS5).

More product images:

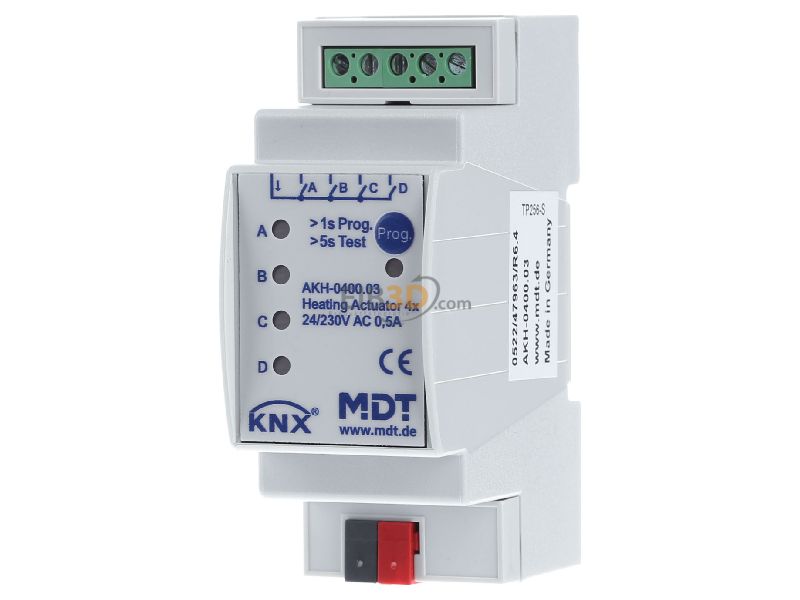

Front view MDT AKH-0400.03 EIB/KNX Heating Actuator 4-fold, 2SU MDRC, 24-230VAC -
Front view

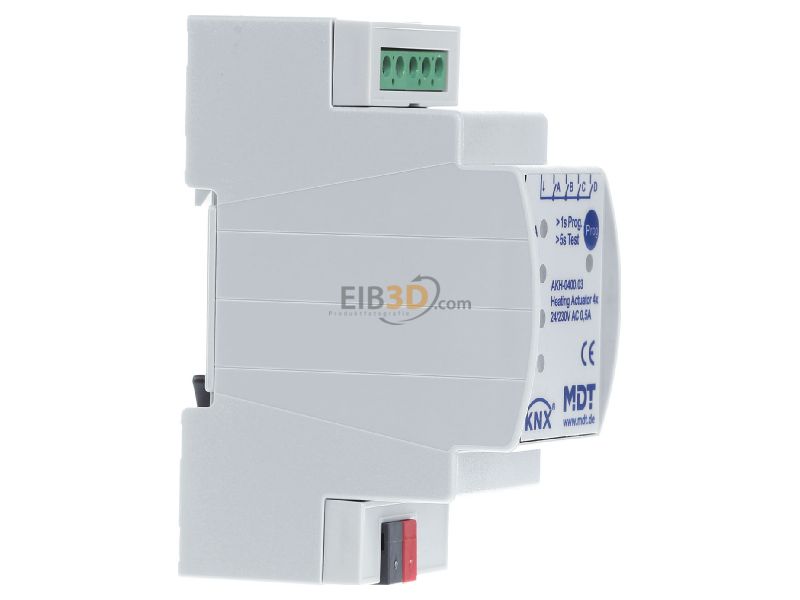

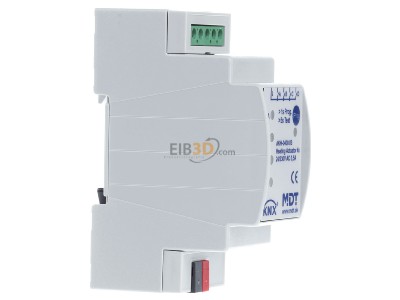

View on the left MDT AKH-0400.03 EIB/KNX Heating Actuator 4-fold, 2SU MDRC, 24-230VAC -
View on the left

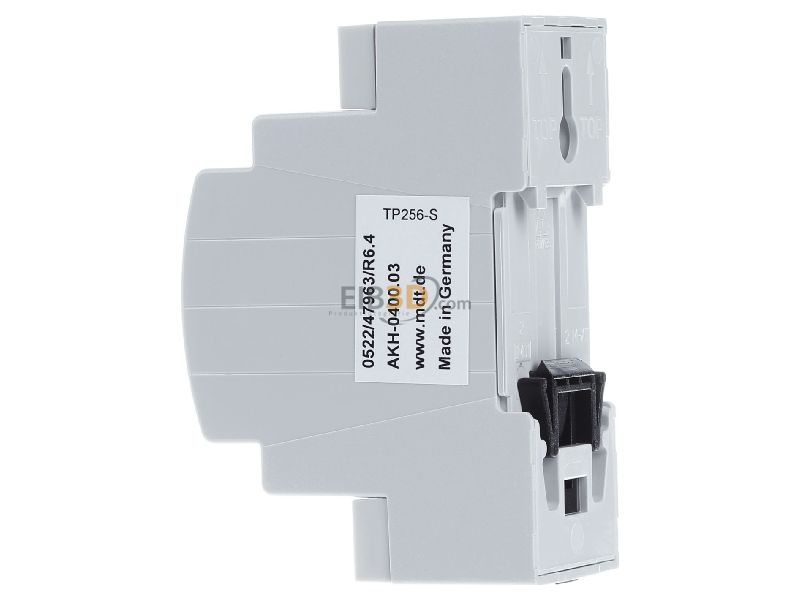

View on the right MDT AKH-0400.03 EIB/KNX Heating Actuator 4-fold, 2SU MDRC, 24-230VAC -
View on the right

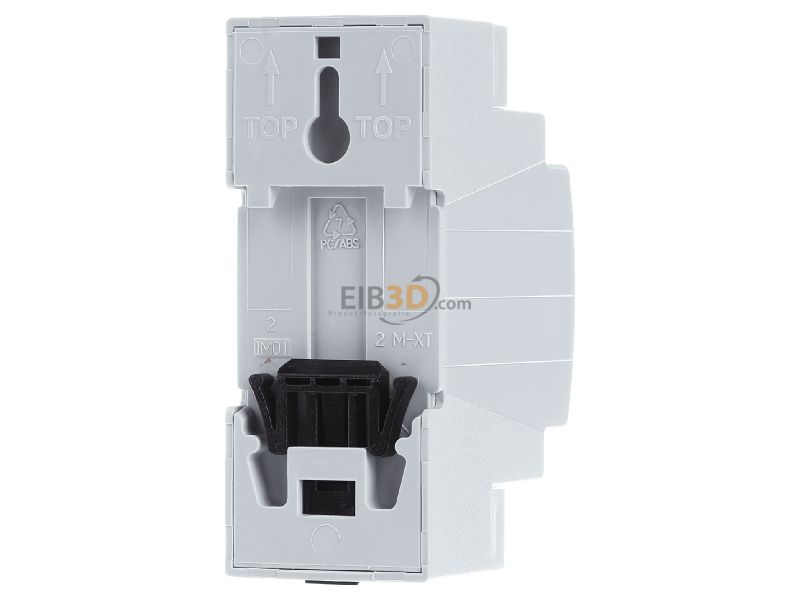

Back view MDT AKH-0400.03 EIB/KNX Heating Actuator 4-fold, 2SU MDRC, 24-230VAC -
Back view

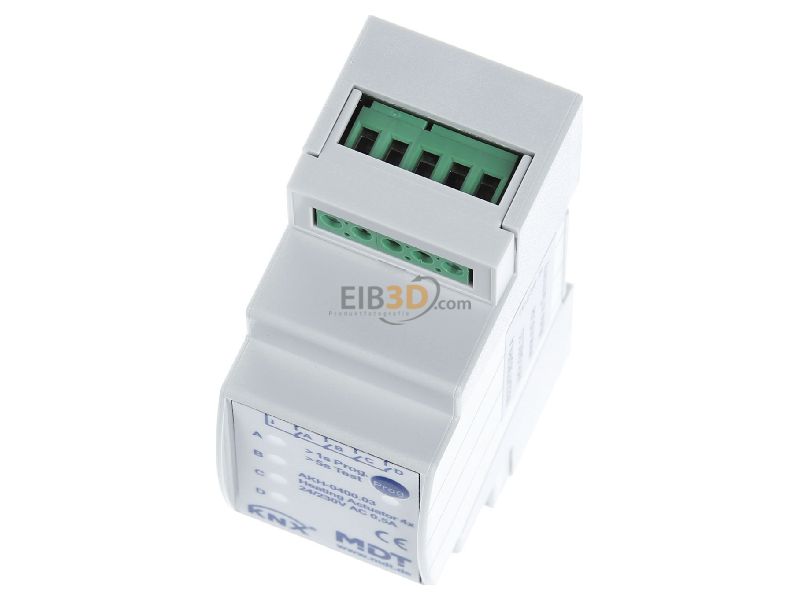

View up front MDT AKH-0400.03 EIB/KNX Heating Actuator 4-fold, 2SU MDRC, 24-230VAC -
View up front

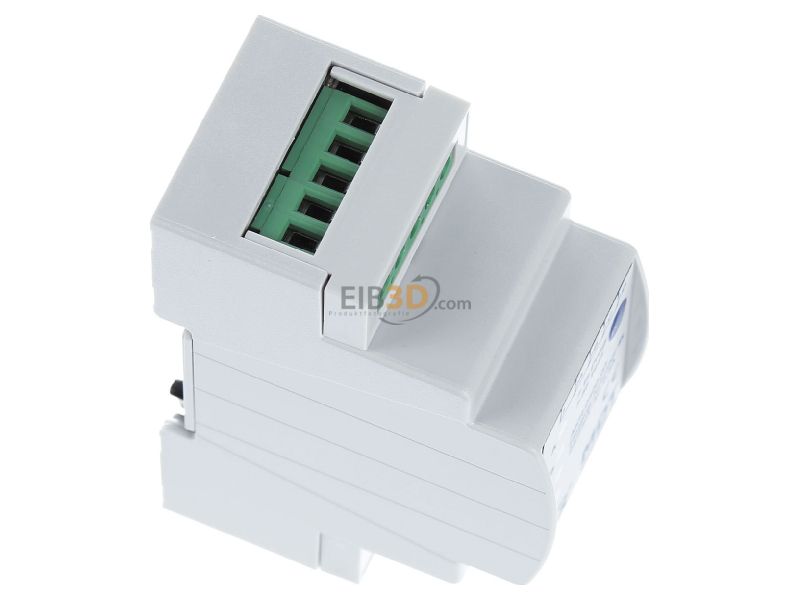

View top left MDT AKH-0400.03 EIB/KNX Heating Actuator 4-fold, 2SU MDRC, 24-230VAC -
View top left

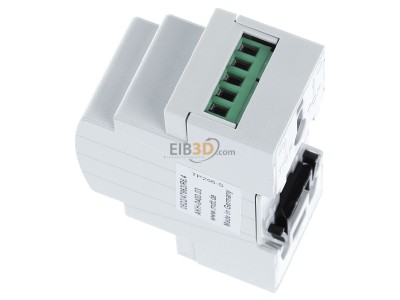

View top right MDT AKH-0400.03 EIB/KNX Heating Actuator 4-fold, 2SU MDRC, 24-230VAC -
View top right

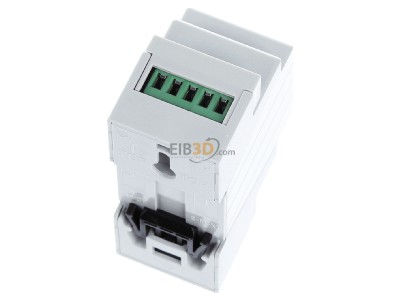

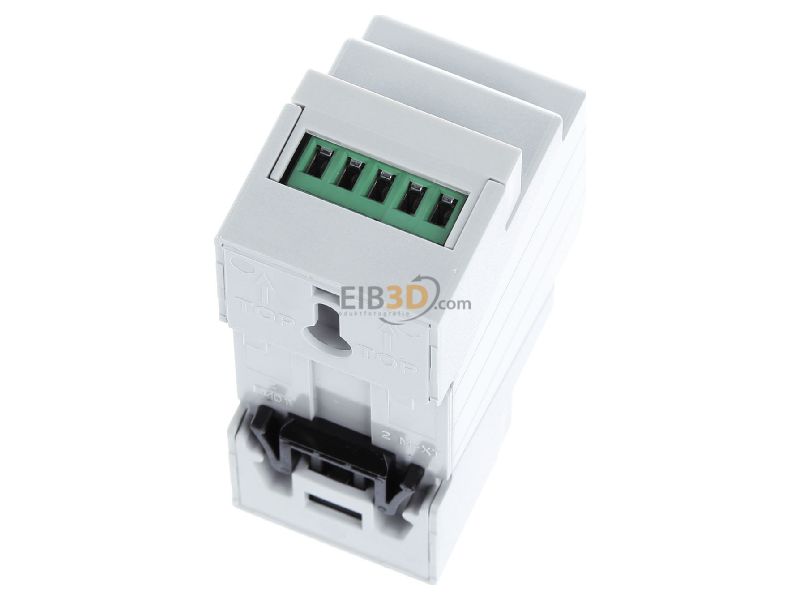

Top rear view MDT AKH-0400.03 EIB/KNX Heating Actuator 4-fold, 2SU MDRC, 24-230VAC -
Top rear view
