EIB/KNX Binary Input 4-fold, 2SU MDRC, Inputs 230VAC, BE-04230.02

EAN/GTIN: 4251916110055
WEEE: DE 14025511
Manufacturer: MDT
Manufacturer no.: BE-04230.02
Customs tariff no.: 85176200
Similar top items: Show now & compare
86,37 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

KNX Binary Input 4-fold, 2SU MDRC, Inputs 230 V AC. KNX Binary Input detection of 230 V AC signals. LED indicator for each channel, max. input cable length 100 m. To connect Push Buttons or window/auxiliary contacts. New multi touch function, sends up to 4 values/DPTs on the same or different objects. Innovative group control with long/extra long button press. 4 integrated logical modules, e.g. interpretation of the inputs (e.g. window closed or sending second object). NO or NC contact operation, sending contact status. Operation of blinds and shutters, 1 and 2 button operation. Forced setting function for each output. Scenes, block communication object for each channel. Operation with short/long button push and 2 objects. Counting of pulses, suitable for 30 ms S0 pulses. Cyclical sending, sending after reset. Internally generated query voltage of 12 V.

More product images:

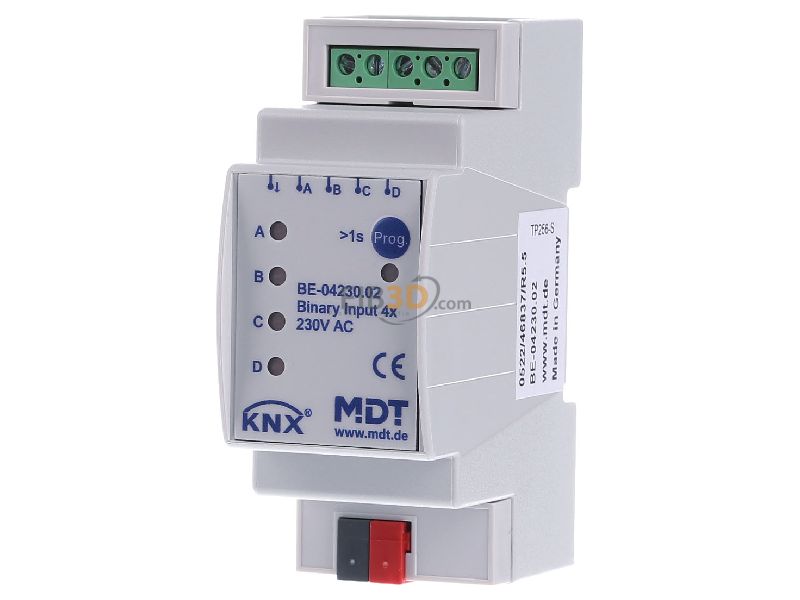

Front view MDT BE-04230.02 EIB/KNX Binary Input 4-fold, 2SU MDRC, Inputs 230VAC,
Front view
View on the left MDT BE-04230.02 EIB/KNX Binary Input 4-fold, 2SU MDRC, Inputs 230VAC,
View on the left
View on the right MDT BE-04230.02 EIB/KNX Binary Input 4-fold, 2SU MDRC, Inputs 230VAC,
View on the right
Back view MDT BE-04230.02 EIB/KNX Binary Input 4-fold, 2SU MDRC, Inputs 230VAC,
Back view
View up front MDT BE-04230.02 EIB/KNX Binary Input 4-fold, 2SU MDRC, Inputs 230VAC,
View up front
View top left MDT BE-04230.02 EIB/KNX Binary Input 4-fold, 2SU MDRC, Inputs 230VAC,
View top left

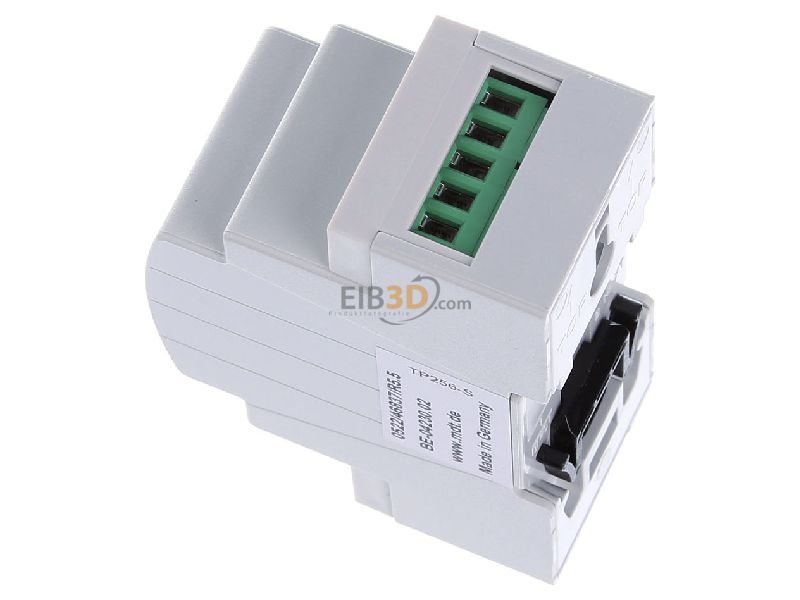

View top right MDT BE-04230.02 EIB/KNX Binary Input 4-fold, 2SU MDRC, Inputs 230VAC,
View top right
Top rear view MDT BE-04230.02 EIB/KNX Binary Input 4-fold, 2SU MDRC, Inputs 230VAC,
Top rear view
