Socket outlet (receptacle) NEMA white A 521-20 WW
Source photo:
JUNG
(fig. might be different or similar)

Socket outlet (receptacle) NEMA white A 521-20 WW

EAN/GTIN: 4011377049857
WEEE: DE 64244154
Manufacturer: JUNG
Manufacturer no.: A 521-20 WW
Customs tariff no.: 85366990
Similar top items: Show now & compare
26,33 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
20-22 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Socket outlet (receptacle) NEMA white Model NEMA, Number of units 1, Number of modules (module system) 0, Number of socket outlets switchable 0, Imprint/indication Without imprint, Connection type Screwed terminal, Colour White, RAL-number (akin) 9010, Special power supply No special power supply, Mounting method Flush mounted (plaster), Type of fastening Mounting with screw, Material Plastic, Material quality Duroplast, Halogen free, Surface protection Other, Surface finishing Glossy, Nominal current 20A, Nominal voltage 125V, Frequency 50 ... 60Hz, Suitable for degree of protection (IP) IP20, Width of device 55mm, Height of device 55mm, Cover Central cover plate

More product images:

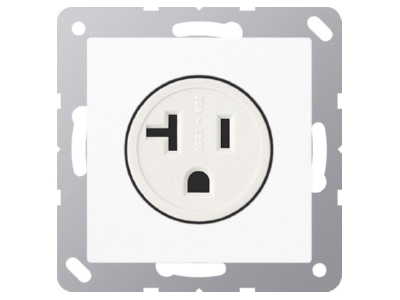

Product image Jung A 521 20 WW Socket outlet  receptacle  NEMA white
Product image

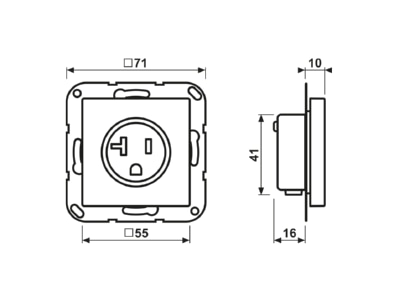

Dimensional drawing Jung A 521 20 WW Socket outlet  receptacle  NEMA white
Dimensional drawing
