KNX LED universal dimming actuator 4-fold, 39004 1S R - special offer

EAN/GTIN: 4011377179103
WEEE: DE 64244154
Manufacturer: JUNG
Manufacturer no.: 39004 1S R
Manufact.-SKU: 390041SR
Customs tariff no.: 85371091
Similar top items: Show now & compare
216,51 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

KNX LED universal dimming actuator, 4-gang 39004 1S R, 4 x 225 W, HV LED lamps typ. 4 x 1 ... 35 W (leading edge phase control), 4 x 1 ... 200 W (trailing edge phase control), 1 x 855 W, with manual electronic operation and LED status indication, Project design and commissioning with ETS5 or a more recent version. Rail mounting device, 4 rail units, ETS product family: Illumination, Product type: Dimmer, The device is compatible with KNX Data Secure. KNX Data Secure offers protection against manipulation in buidling automation. A dedicated application is required for secure operation. Additional information is available at: KNX Secure, Intended use: Switching and dimming of incandescent lamps, HV halogen lamps, dimmable HV LED lamps, dimmable compact fluorescent lamps, dimmable inductive transformers with LV halogen or LV LED lamps, dimmable electronic transformers with LV halogen or LV LED lamps, Mounting on DIN rail according to EN 60715 in distribution boxes, Product characteristics: Outputs can be operated manually, construction site mode, Feedback in manual mode and in bus mode, Disabling of individual outputs manually or via bus, Status feedback, KNX Data Secure compatible with ETS 5.7.3 or higher, Can be updated with the ETS Service App, Dimming operation characteristic: Automatic or manual setting of the dimming principle suitable for the load, Protected against no-load, short-circuit and overheating, Signal in the event of a short-circuit, power failure and overload, Feedback of the switching position and the dimming value, Parameterisable switch-on and dimming behaviour, Time functions: switch-on delay, switch-off delay, staircase lighting timer with pre-warning function, Light scene operation, Status indication of the outputs via LED, Operating hours counter, Mains failure longer than approx. 5 seconds leads to switch-off of the dimmer actuator. Depending on the parameter setting, the connected load is calibrated after resumption of power supply. Increase in output power possible through parallel switching of multiple outputs, Power extension possible by means of power boosters (ref.-no. ULZ 1755 REG), Optional accessory: compensation module LED, ref.-no.: KM LED 230 U, Logic function characteristics: Logic gates, Transformer (conversion), Disabling element, Comparator, Limit value switch, Technical data, Rated voltage: AC 110 ... 230 V ~, Mains frequency: 50/60 Hz, Power loss: max. 7 W, Stand-by power: approx. 0.16 W per channel, Ambient temperature: -5 ... +45 °C, Storage/transport temperature: -25 ... +70 °C, Lamp loads, Operation modes ´´universal ´´, ´´leading edge phase control ´´, ´´LED leading edge phase control ´´, Connected load, 230 V per output, Incandescent lamps: 20 ... 225 W, HV halogen lamps: 20 ... 225 W, If the operating mode for LED and HV halogen lamps is set to ´´leading edge phase control ´´ or ´´LED leading edge phase control ´´, the maximum connected load falls to 20 ... 210 W., Inductive transformers: 20 ... 210 VA, Inductive transformers with LV LED: 20 ... 100 VA, Electronic transformers: 20 ... 210 W, Electronic transformers with LV LED: 20 ... 100 W, Dimmable HV LED lamps: typical 1 ... 35 W, Dimmable compact fluorescent lamps: typical 20 ... 80 W, Mixed load types, Capacitive-inductive: not permitted, If the maximum connected load is lowered to 110 V, the lamp loads fall by 50 %., For inductive transformers and inductive transformers with LV LED, the operation mode ´´leading edge phase control ´´ is not permitted., Operation modes ´´trailing edge phase control ´´, ´´LED trailing edge phase control ´´, Connected load, 230 V per output, Incandescent lamps: 20 ... 225 W, HV halogen lamps: 20 ... 225 W, Electronic transformers: 20 ... 225 W, Electronic transformers with LV LED: 20 ... 200 W, Dimmable HV LED lamps: typical 1 ... 200 W, Dimmable compact fluorescent lamps: typical 20 ... 150 W, If the maximum connected load is lowered to 110 V, the lamp loads fall by 50 %., Mounting width: 72 mm (4 rail units), KNX, KNX medium: TP 256, Commissioning mode: S-mode, Rated voltage KNX: DC 21 ... 32 V SELV, Current consumption KNX: 15 mA, Connection, Connection mode: connection terminal, single wire: 1 x 0.5 ... 4 mm², stranded without ferrule: 1 x 0.5 ... 4 mm², stranded with ferrule: 1 x 0.5 ... 2.5 mm²

More product images:

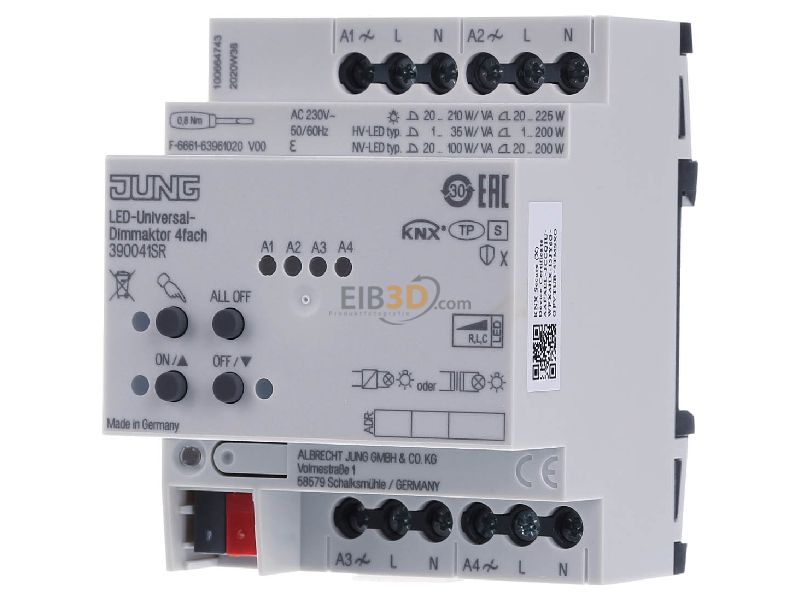

Front view Jung 39004 1S R Dimming actuator KNX bus system 1...225W
Front view

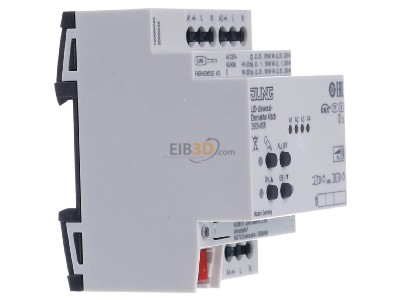

View on the left Jung 39004 1S R Dimming actuator KNX bus system 1...225W
View on the left

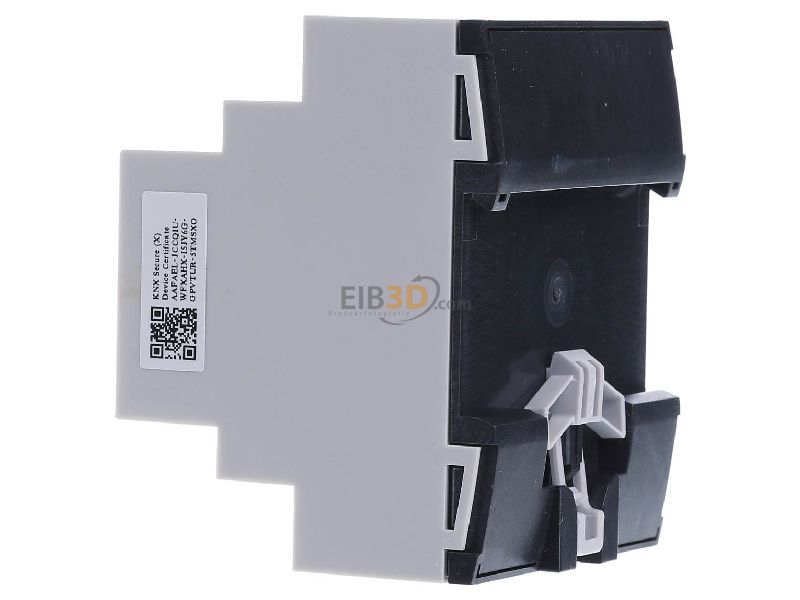

View on the right Jung 39004 1S R Dimming actuator KNX bus system 1...225W
View on the right

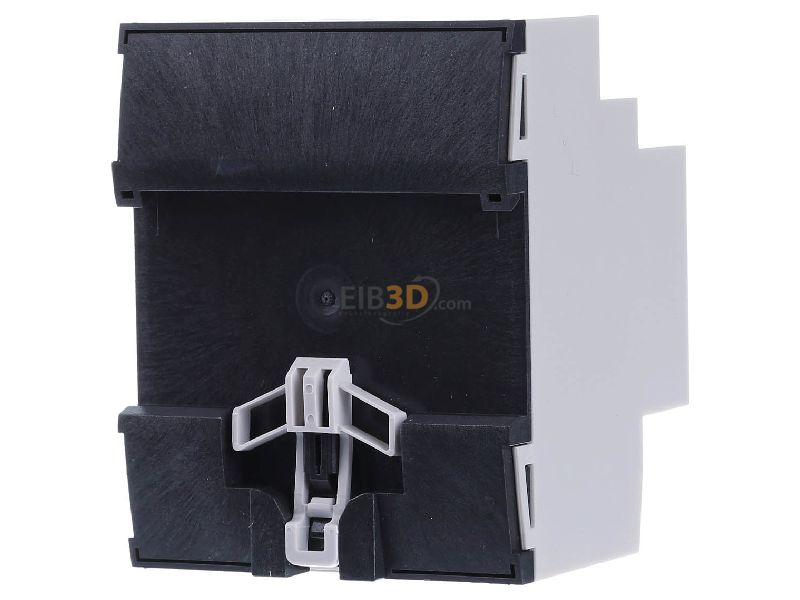

Back view Jung 39004 1S R Dimming actuator KNX bus system 1...225W
Back view

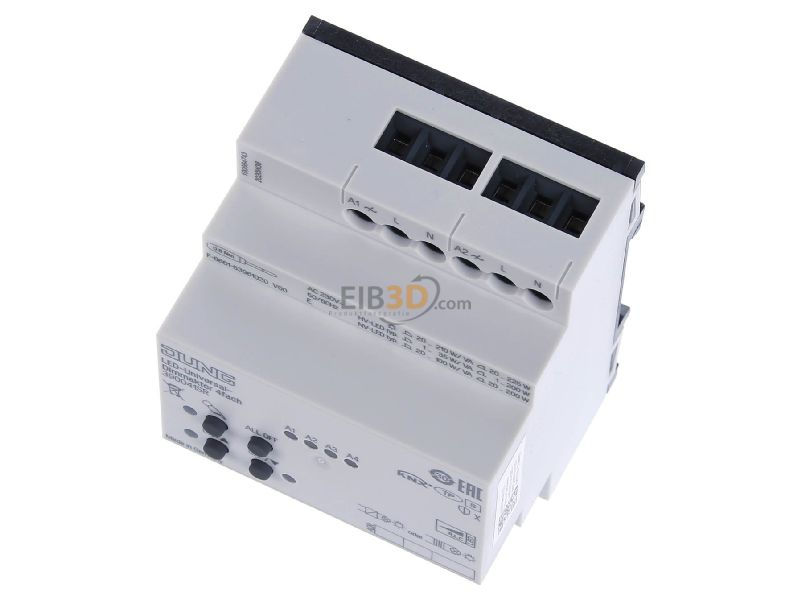

View up front Jung 39004 1S R Dimming actuator KNX bus system 1...225W
View up front

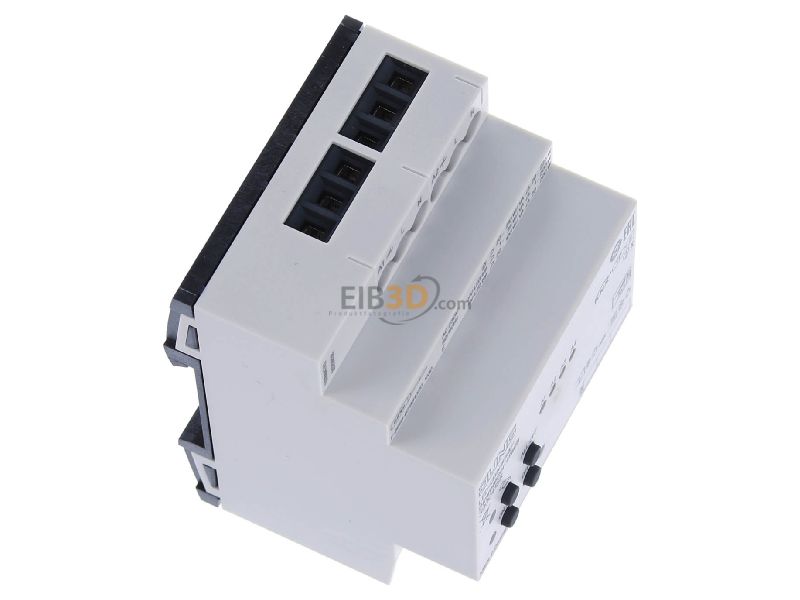

View top left Jung 39004 1S R Dimming actuator KNX bus system 1...225W
View top left

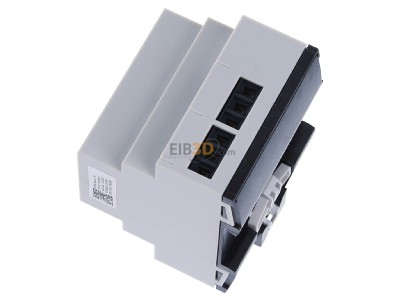

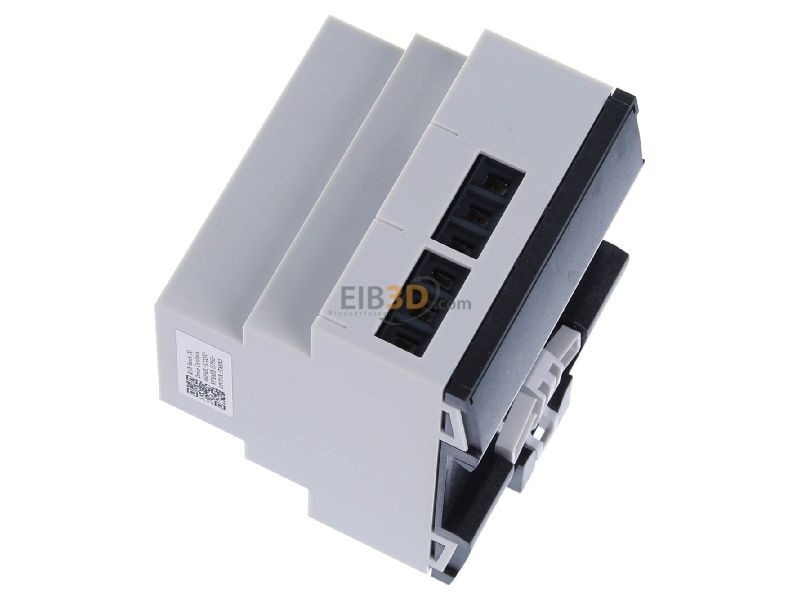

View top right Jung 39004 1S R Dimming actuator KNX bus system 1...225W
View top right

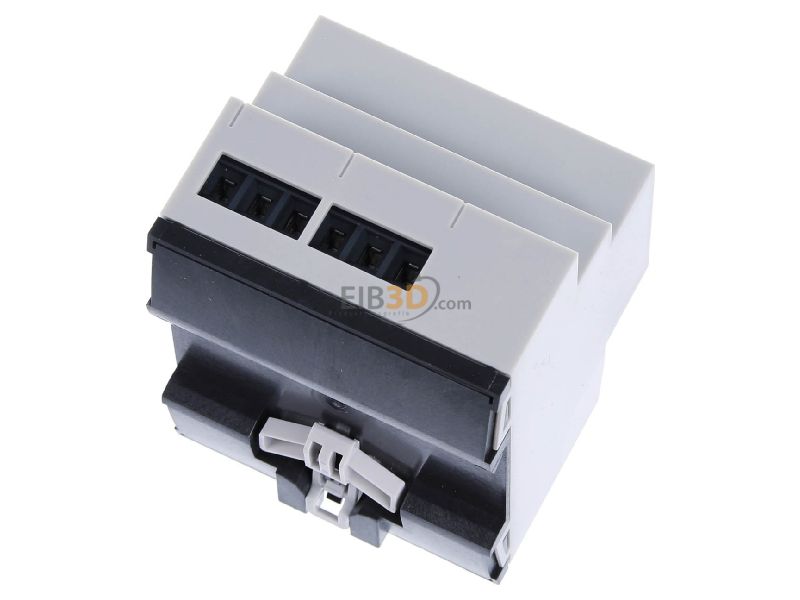

Top rear view Jung 39004 1S R Dimming actuator KNX bus system 1...225W
Top rear view
