Source photo: www.EIB3D.com

Staircase lighting timer 0,5...20min 14.71.8.230.0000

EAN/GTIN: 8012823236759
WEEE: DE 43501029
Manufacturer: Finder
Manufacturer no.: 14.71.8.230.0000
Customs tariff no.: 85364900
Similar top items: Show now & compare
20,41 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Staircase lighting timer 0,5...20min Function Electronic, Mounting method DIN rail, Width in number of modular spacings 1, Built-in depth 60,8mm, Number of contacts as normally open contact 1, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Control voltage 1 230 ... 230V, Type of control voltage 1 AC, Frequency control voltage 1 50 ... 60Hz, Rated switch current 16A, Max. switching current (cos phi = 0.6) 12A, Release-delay 0,5 ... 20min, Push button glow-lamp current 30mA, Wiring system 3 and 4 wire configuration, Pre-warning of switching-off None, Repetitive Repetitive + continuous light + time extension, Supply voltage 230 ... 230V, Voltage type of supply voltage AC, Max. incandescent lamp load 3000W, Max. load fluorescent lamp 1000VA, Max. load fluorescent lamp (Duo circuit) 1000VA, Max. load fluorescent lamp (parallel compensated) 1000VA

More product images:

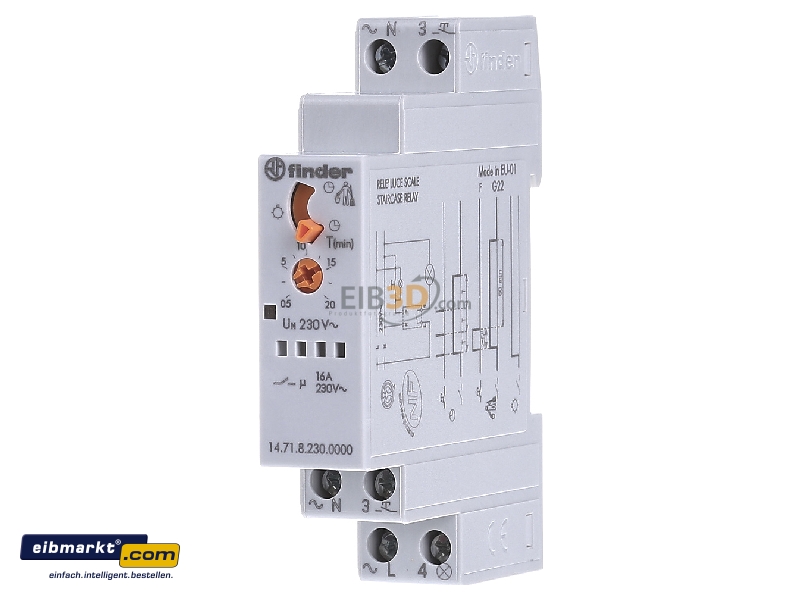

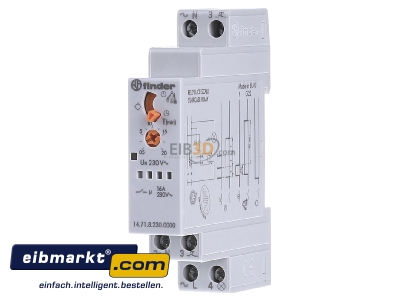

Front view Finder 14.71.8.230.0000 Staircase lighting timer 0,5...20min -
Front view

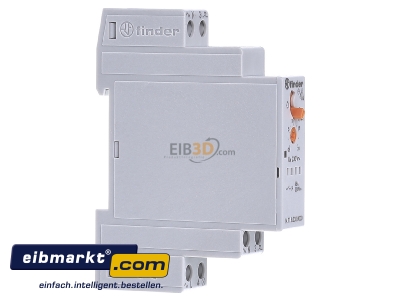

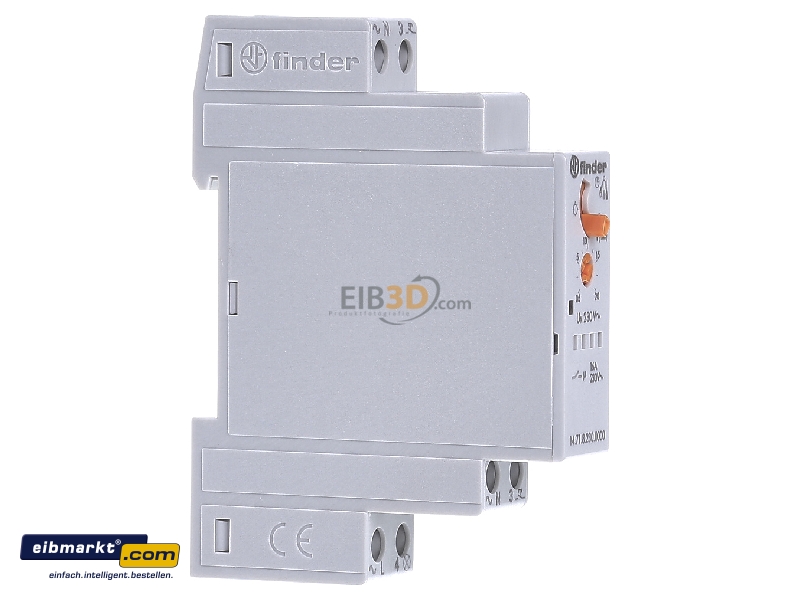

View on the left Finder 14.71.8.230.0000 Staircase lighting timer 0,5...20min -
View on the left

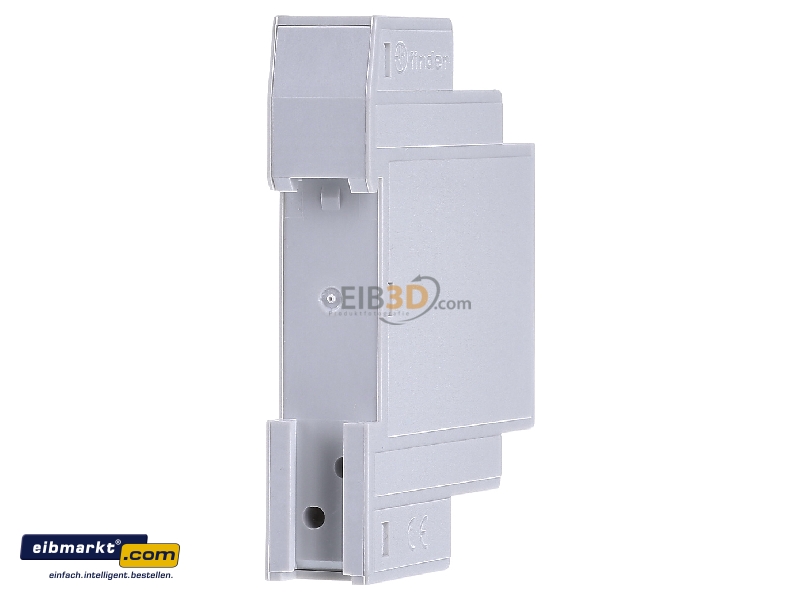

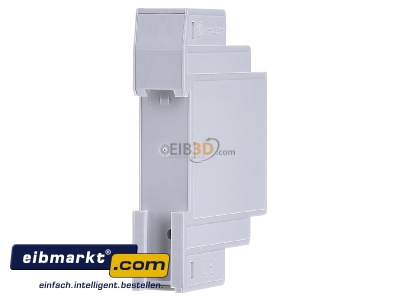

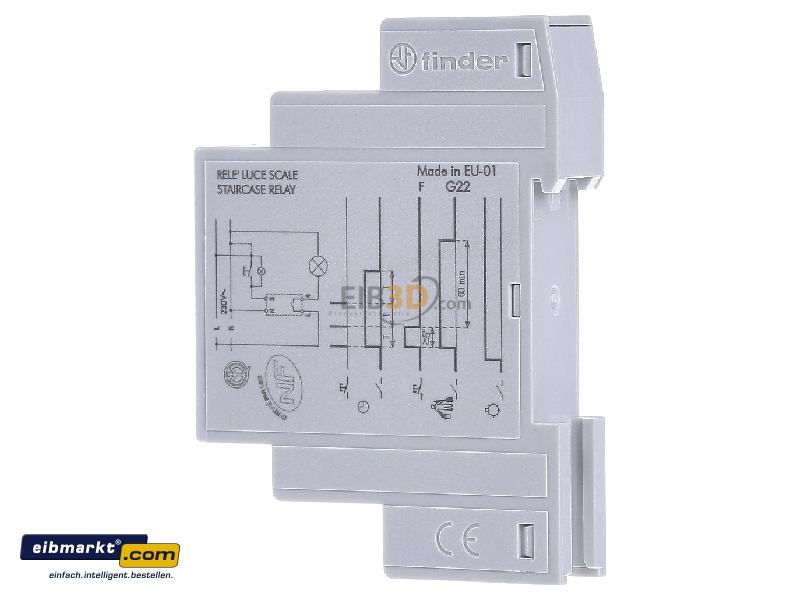

View on the right Finder 14.71.8.230.0000 Staircase lighting timer 0,5...20min -
View on the right
Back view Finder 14.71.8.230.0000 Staircase lighting timer 0,5...20min -
Back view

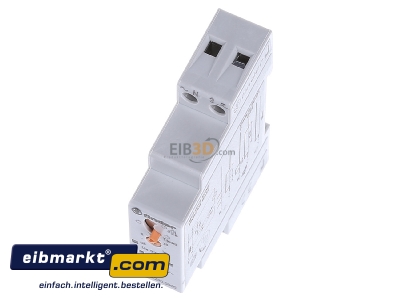

View up front Finder 14.71.8.230.0000 Staircase lighting timer 0,5...20min -
View up front

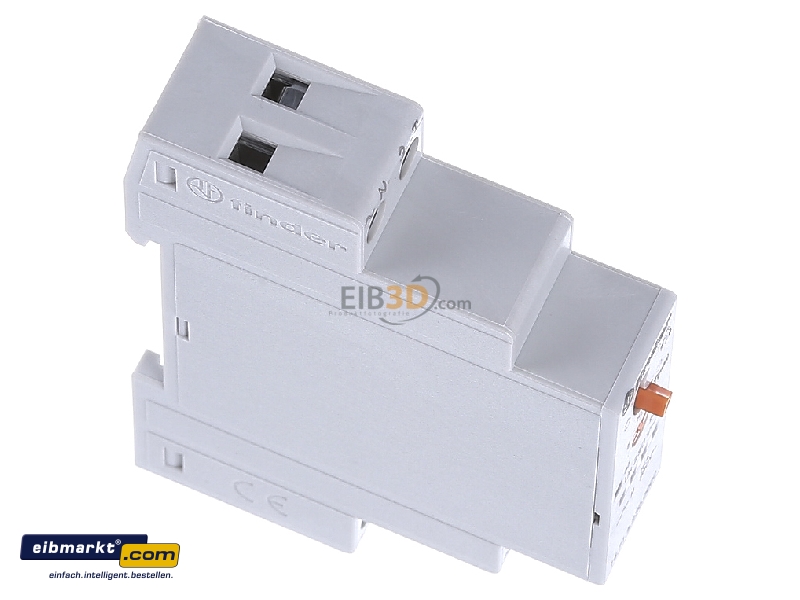

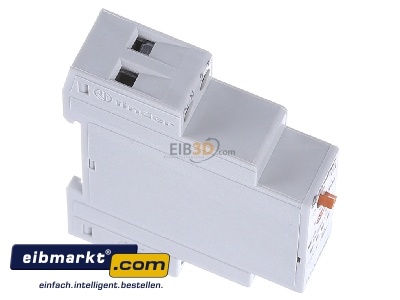

View top left Finder 14.71.8.230.0000 Staircase lighting timer 0,5...20min -
View top left

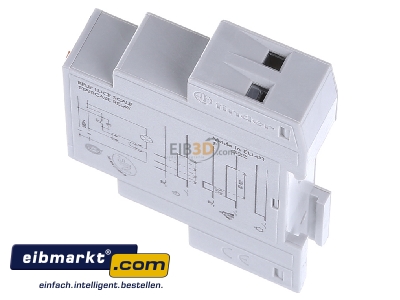

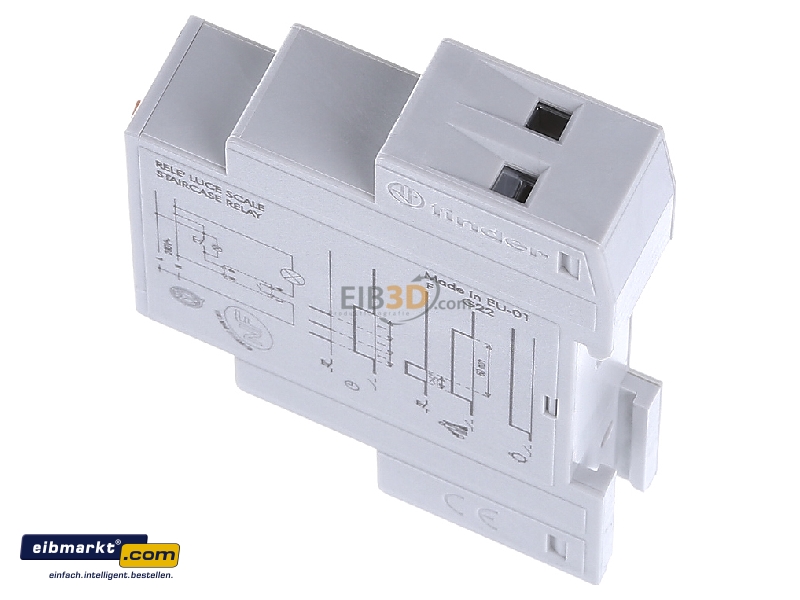

View top right Finder 14.71.8.230.0000 Staircase lighting timer 0,5...20min -
View top right

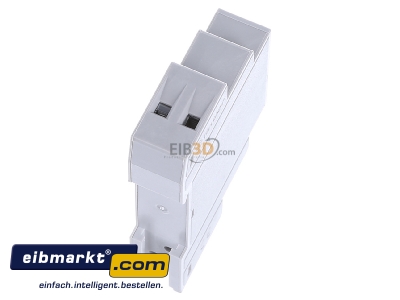

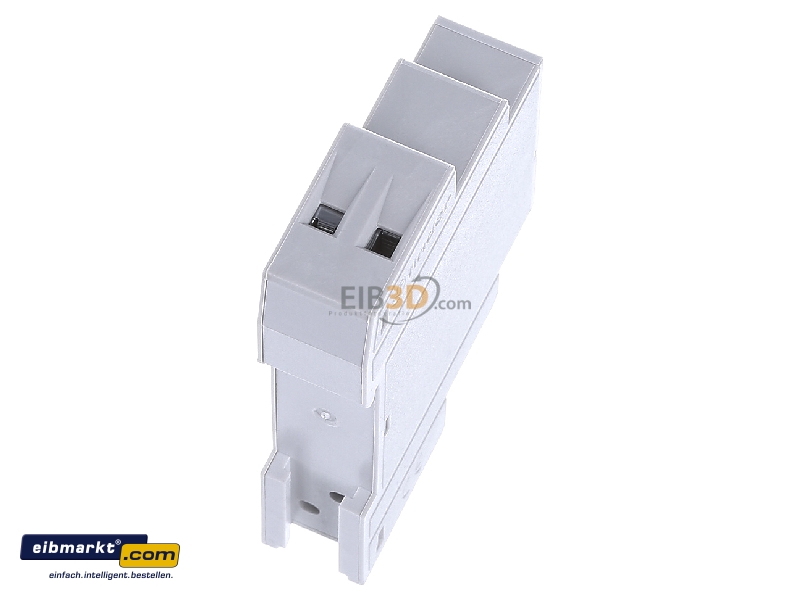

Top rear view Finder 14.71.8.230.0000 Staircase lighting timer 0,5...20min -
Top rear view
