Source photo: www.EIB3D.com

Latching relay 230V AC S91-100-230V

EAN/GTIN: 4010312103531
WEEE: DE 30298319
Manufacturer: Eltako
Manufacturer no.: S91-100-230V
Manufact.-SKU: 91100030
Customs tariff no.: 85365080
Similar top items: Show now & compare
13,09 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Latching relay 230V AC Function Other, Mounting method Surface mounted (plaster), Width in number of modular spacings 2,3, Built-in depth 32mm, Number of contacts as normally open contact 1, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Control voltage 1 230 ... 230V, Type of control voltage 1 AC, Frequency control voltage 1 50 ... 50Hz, Rated switch current 10A, Max. incandescent lamp load 2300W, Max. load fluorescent lamp 2300VA, Max. load fluorescent lamp (Duo circuit) 2300VA, Max. load fluorescent lamp (parallel compensated) 500VA, Max. switching current (cos phi = 0.6) 10A, Manual operation possible

More product images:

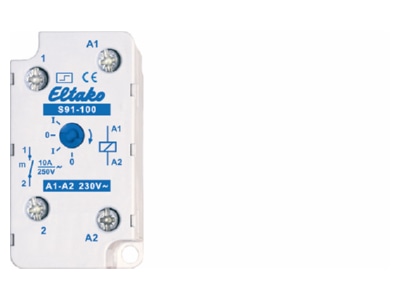

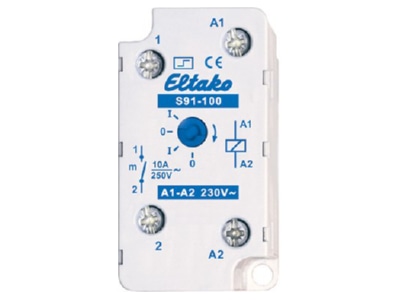

Front view Eltako S91-100-230V Latching relay 230V AC
Front view
View on the left Eltako S91-100-230V Latching relay 230V AC
View on the left
View on the right Eltako S91-100-230V Latching relay 230V AC
View on the right
Back view Eltako S91-100-230V Latching relay 230V AC
Back view
View up front Eltako S91-100-230V Latching relay 230V AC
View up front
View top left Eltako S91-100-230V Latching relay 230V AC
View top left
View top right Eltako S91-100-230V Latching relay 230V AC
View top right
Top rear view Eltako S91-100-230V Latching relay 230V AC
Top rear view
