Latching relay 12V DC S12-100-12V DC

EAN/GTIN: 4010312101254
WEEE: DE 30298319
Manufacturer: Eltako
Manufacturer no.: S12-100-12V DC
Manufact.-SKU: 21100054
Customs tariff no.: 85365080
Similar top items: Show now & compare
15,46 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
20-22 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Latching relay 12V DC Function Other, Mounting method DIN rail, Width in number of modular spacings 1, Built-in depth 55mm, Number of contacts as normally open contact 1, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Control voltage 1 12 ... 12V, Type of control voltage 1 DC, Rated switch current 16A, Max. incandescent lamp load 2300W, Max. load fluorescent lamp 2300VA, Max. load fluorescent lamp (Duo circuit) 2300VA, Max. load fluorescent lamp (parallel compensated) 500VA, Max. switching current (cos phi = 0.6) 10A, Manual operation possible

More product images:

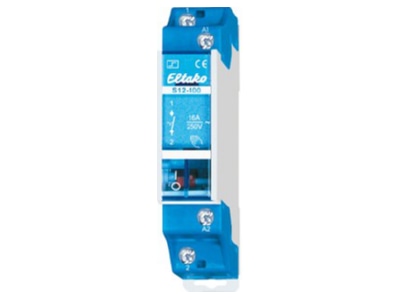

Front view Eltako S12-100-12V DC Latching relay 12V DC -
Front view

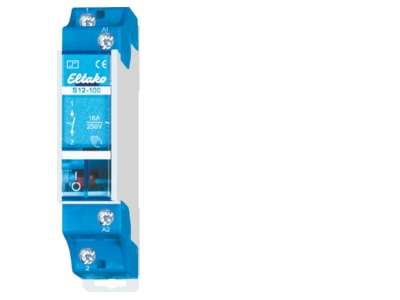

View on the left Eltako S12-100-12V DC Latching relay 12V DC -
View on the left
View on the right Eltako S12-100-12V DC Latching relay 12V DC -
View on the right
Back view Eltako S12-100-12V DC Latching relay 12V DC -
Back view
View up front Eltako S12-100-12V DC Latching relay 12V DC -
View up front
View top left Eltako S12-100-12V DC Latching relay 12V DC -
View top left
View top right Eltako S12-100-12V DC Latching relay 12V DC -
View top right
Top rear view Eltako S12-100-12V DC Latching relay 12V DC -
Top rear view
