Source photo: www.EIB3D.com

Installation relay 12VDC R12-100-12VDC

EAN/GTIN: 4010312200995
WEEE: DE 30298319
Manufacturer: Eltako
Manufacturer no.: R12-100-12VDC
Manufact.-SKU: 22100054
Customs tariff no.: 85364900
Similar top items: Show now & compare
15,37 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Installation relay 12VDC Function Other, Mounting method DIN rail, Width in number of modular spacings 1, Built-in depth 55mm, Number of contacts as normally open contact 1, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Control voltage 1 12 ... 12V, Type of control voltage 1 DC, Frequency control voltage 1 50 ... 50Hz, Rated current 16A, Supply voltage 230 ... 230V, Voltage type of supply voltage AC, Max. incandescent lamp load 2300W, Max. load fluorescent lamp 2300VA, Max. load fluorescent lamp (Duo circuit) 2300VA, Max. load fluorescent lamp (parallel compensated) 500VA, Max. switching current (cos phi = 0.6) 10A

More product images:

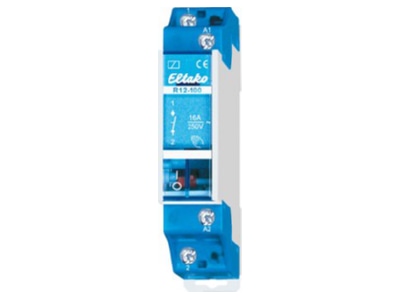

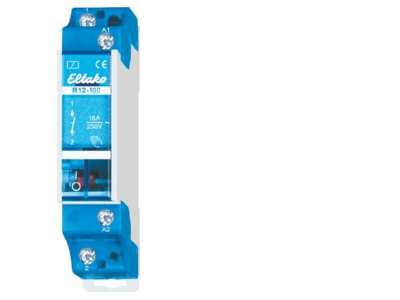

Front view Eltako R12-100-12VDC Installation relay 12VDC
Front view
View on the left Eltako R12-100-12VDC Installation relay 12VDC
View on the left
View on the right Eltako R12-100-12VDC Installation relay 12VDC
View on the right
Back view Eltako R12-100-12VDC Installation relay 12VDC
Back view
View up front Eltako R12-100-12VDC Installation relay 12VDC
View up front
View top left Eltako R12-100-12VDC Installation relay 12VDC
View top left
View top right Eltako R12-100-12VDC Installation relay 12VDC
View top right
Top rear view Eltako R12-100-12VDC Installation relay 12VDC
Top rear view
