Motor protection circuit-breaker 200A NZMN2-M200
Source photo:
Eaton
(fig. might be different or similar)

Motor protection circuit-breaker 200A NZMN2-M200

EAN/GTIN: 4015082657253
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: NZMN2-M200
Manufact.-SKU: 265725
Customs tariff no.: 85362090
Similar top items: Show now & compare
796,08 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Overload release current setting=160..200 A, Adjustment range undelayed short-circuit release=1600..2800 A, With thermal protection=yes, Phase failure sensitive=no, Switch off technique=Thermomagnetic, Rated operating voltage=690 V, Rated permanent current Iu=200 A, Rated operation power at AC-3, 230 V=55 kW, Rated operation power at AC-3, 400 V=110 kW, Type of electrical connection of main circuit=Screw connection, Type of control element=Rocker lever, Device construction=Built-in device fixed built-in technique, With integrated auxiliary switch=no, With integrated under voltage release=no, Number of poles=3, Rated short-circuit breaking capacity lcu at 400 V, AC=50 kA, Degree of protection (IP)=IP20, Height=184 mm, Width=105 mm, Depth=149 mm

More product images:

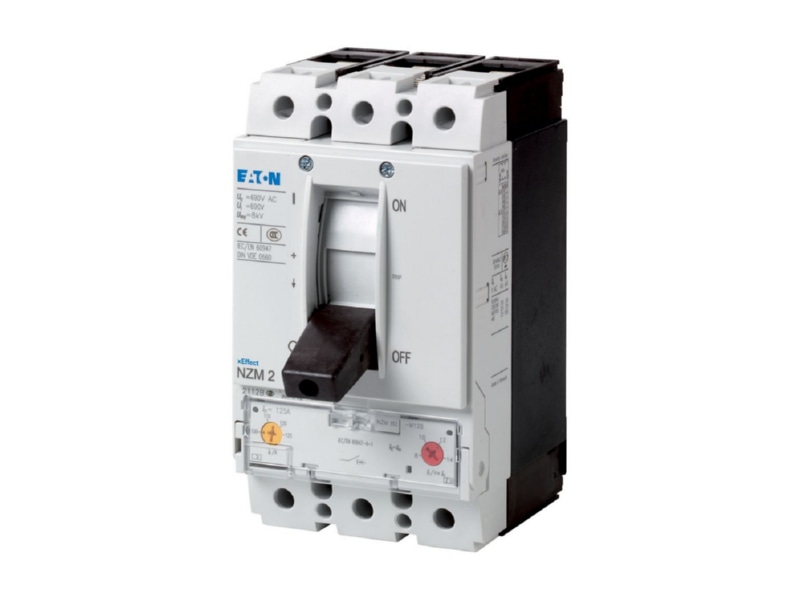

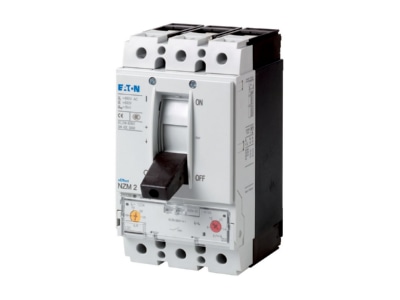

Product image Eaton NZMN2 M200 Motor protection circuit breaker 200A
Product image

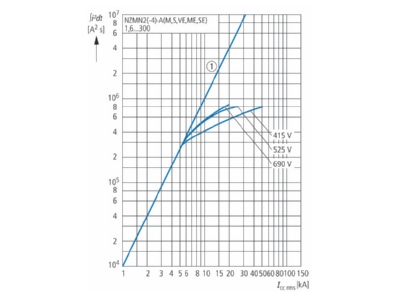

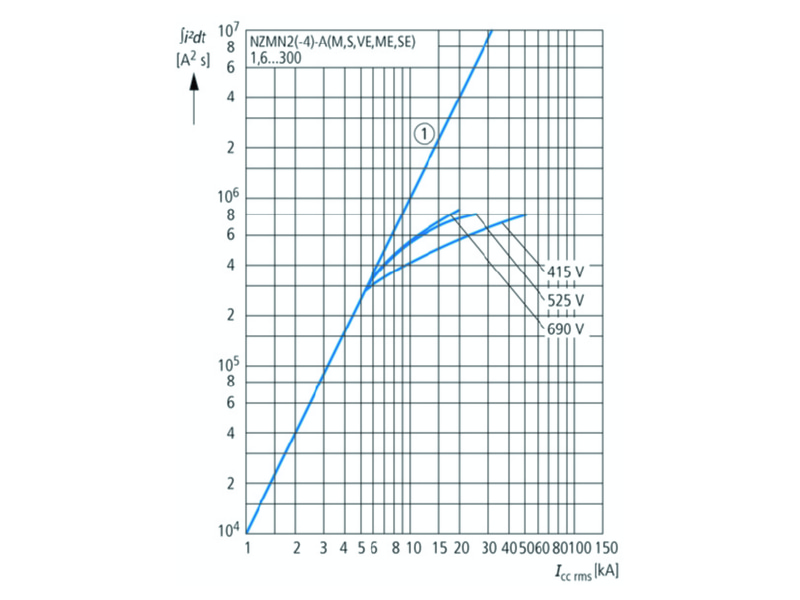

Flow chart 1 Eaton NZMN2 M200 Motor protection circuit breaker 200A
Flow chart 1

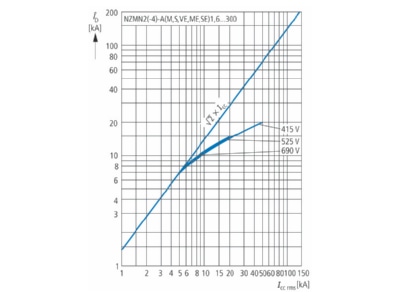

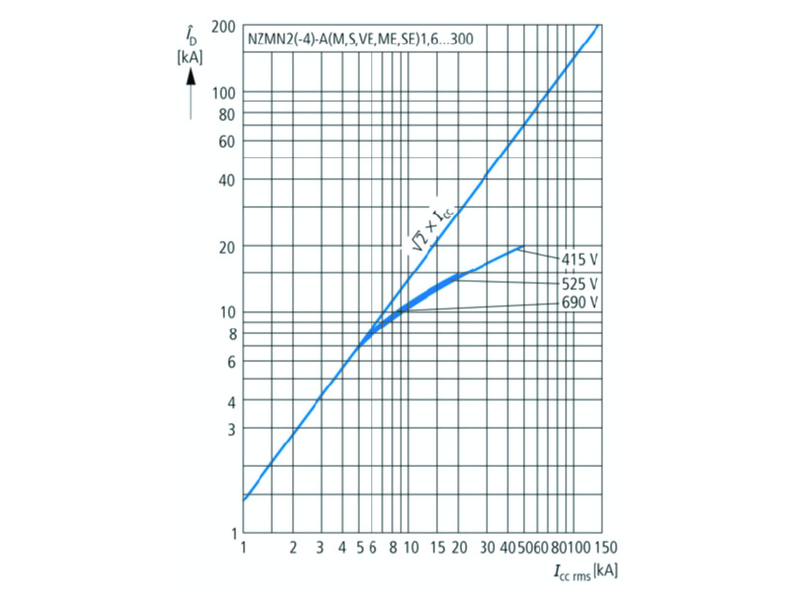

Flow chart 2 Eaton NZMN2 M200 Motor protection circuit breaker 200A
Flow chart 2

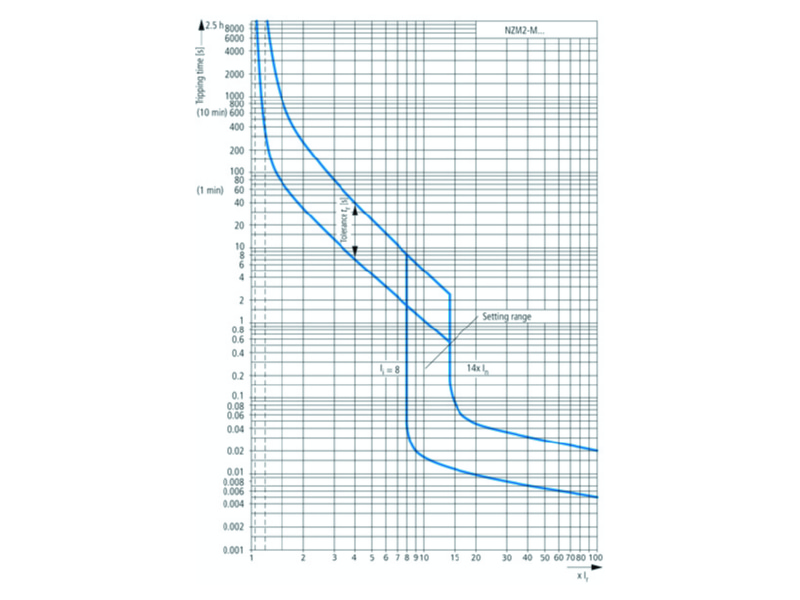

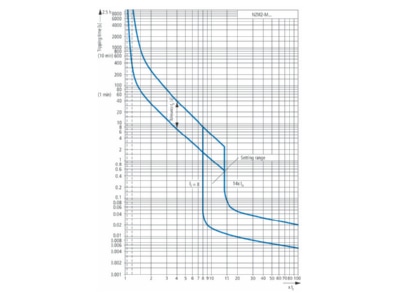

Flow chart 3 Eaton NZMN2 M200 Motor protection circuit breaker 200A
Flow chart 3
