Source photo: www.EIB3D.com

Safety switch 3-p N1-160

EAN/GTIN: 4015082812362
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: N1-160
Manufact.-SKU: 281236
Customs tariff no.: 85362090
Similar top items: Show now & compare
250,51 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
14-16 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Safety switch 3-p Version as main switch, Version as maintenance-/service switch, Version as emergency stop installation, Number of switches 1, Max. rated operation voltage Ue AC 690V, Rated operating voltage 690 ... 690V, Rated permanent current Iu 160A, Rated permanent current at AC-23, 400 V 0A, Rated permanent current at AC-21, 400 V 0A, Rated operation power at AC-3, 400 V 0kW, Rated short-time withstand current lcw 2kA, Rated operation power at AC-23, 400 V 90kW, Switching power at 400 V 0kW, Conditioned rated short-circuit current Iq 0kA, Number of poles 3, Number of auxiliary contacts as normally closed contact 0, Number of auxiliary contacts as normally open contact 0, Number of auxiliary contacts as change-over contact 0, Motor drive optional, Voltage release optional, Device construction Built-in device fixed built-in technique, Suitable for ground mounting, Suitable for distribution board installation, Suitable for intermediate mounting, Colour control element Black, Type of control element Rocker lever, Interlockable, Type of electrical connection of main circuit Frame clamp, Degree of protection (IP), front side IP20

More product images:

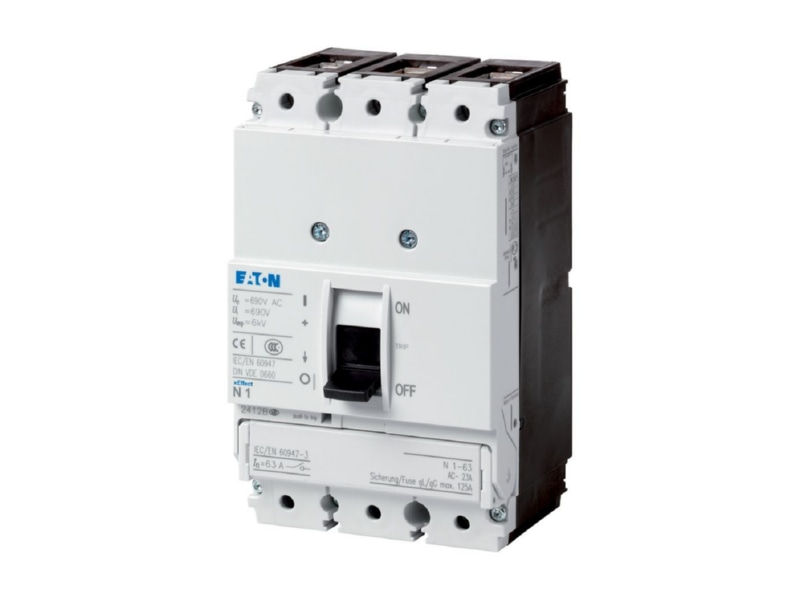

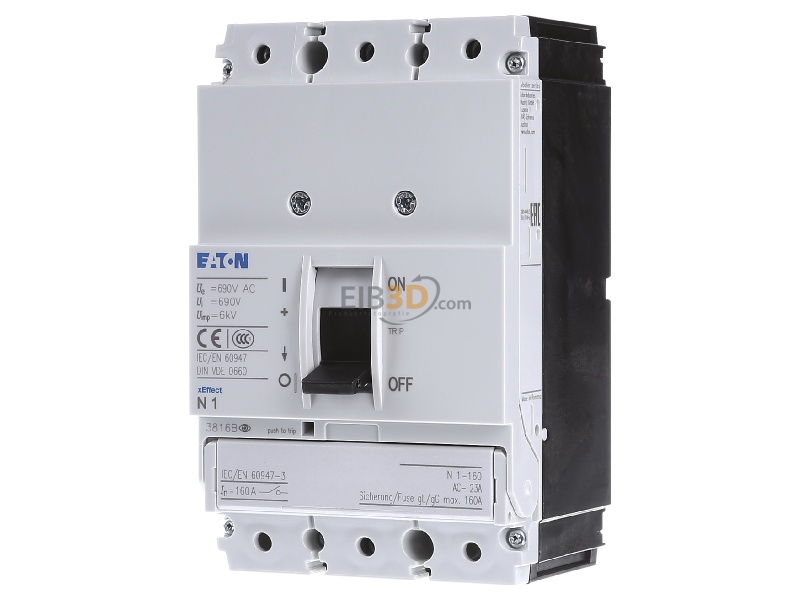

Front view Eaton (Moeller) N1-160 Safety switch 3-p
Front view

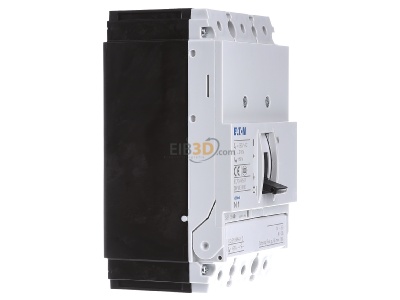

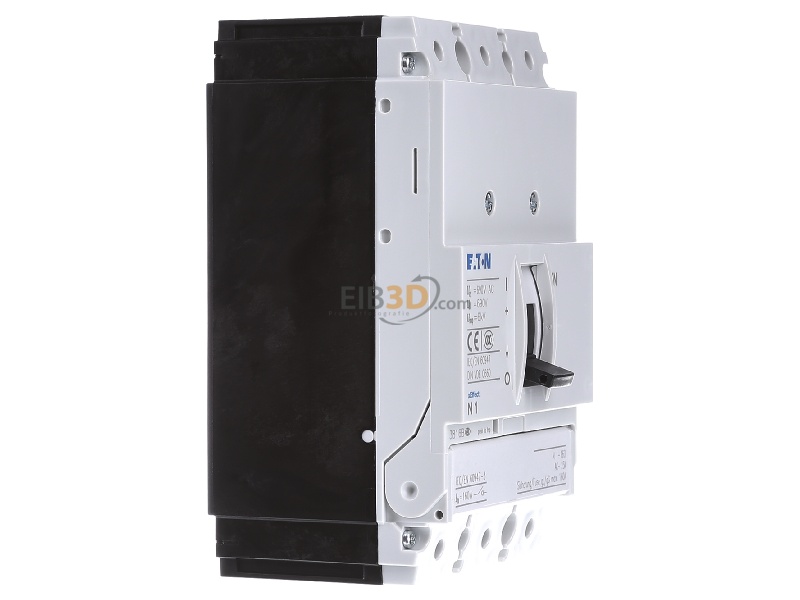

View on the left Eaton (Moeller) N1-160 Safety switch 3-p
View on the left

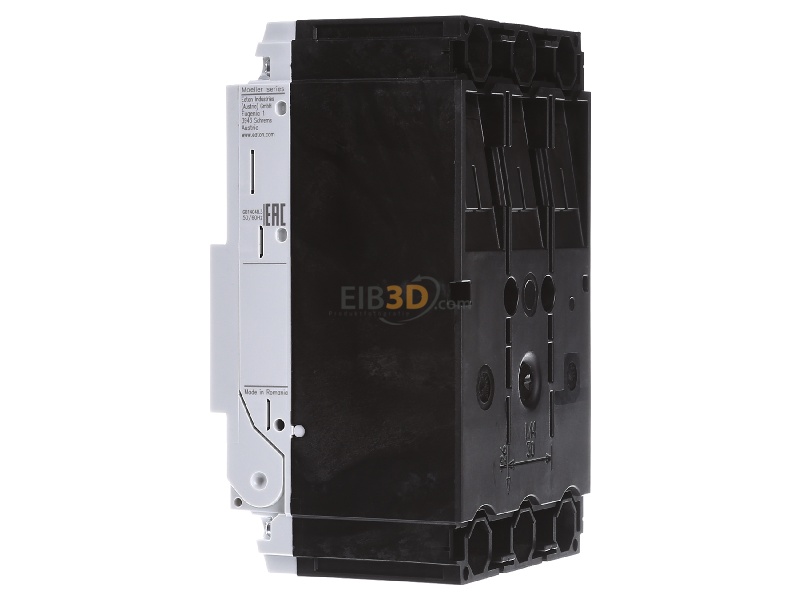

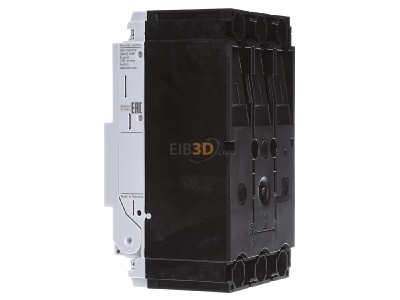

View on the right Eaton (Moeller) N1-160 Safety switch 3-p
View on the right

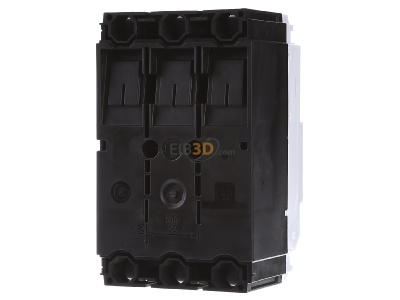

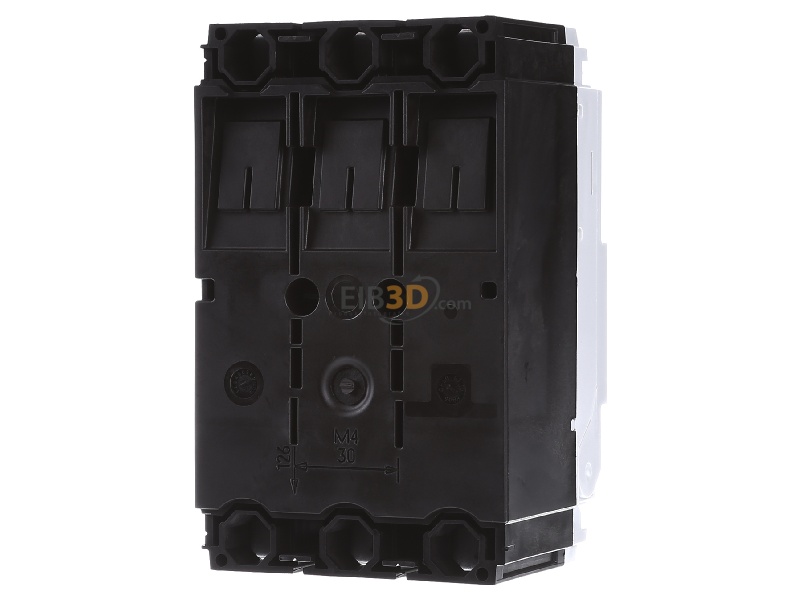

Back view Eaton (Moeller) N1-160 Safety switch 3-p
Back view

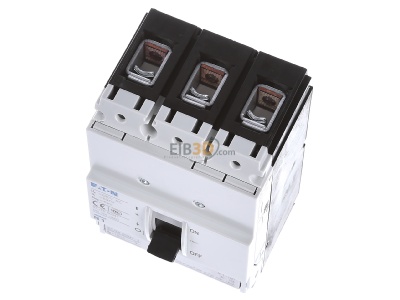

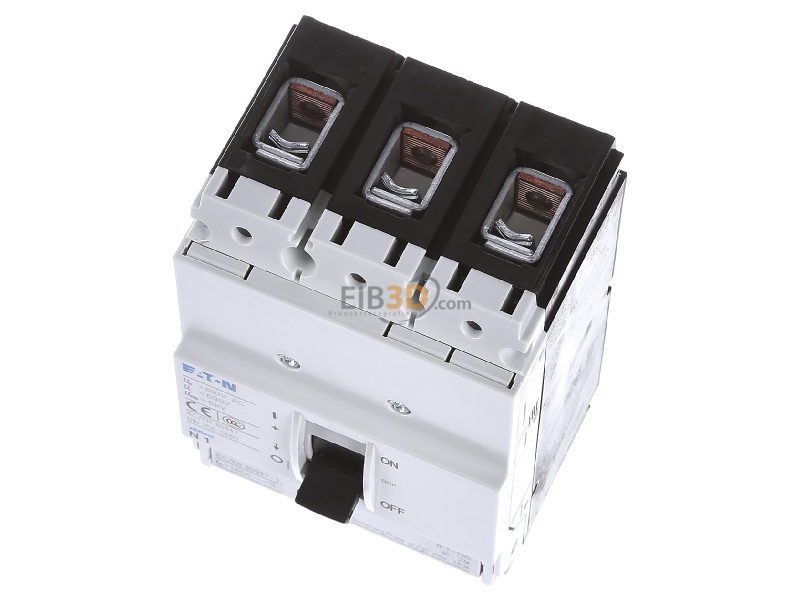

View up front Eaton (Moeller) N1-160 Safety switch 3-p
View up front

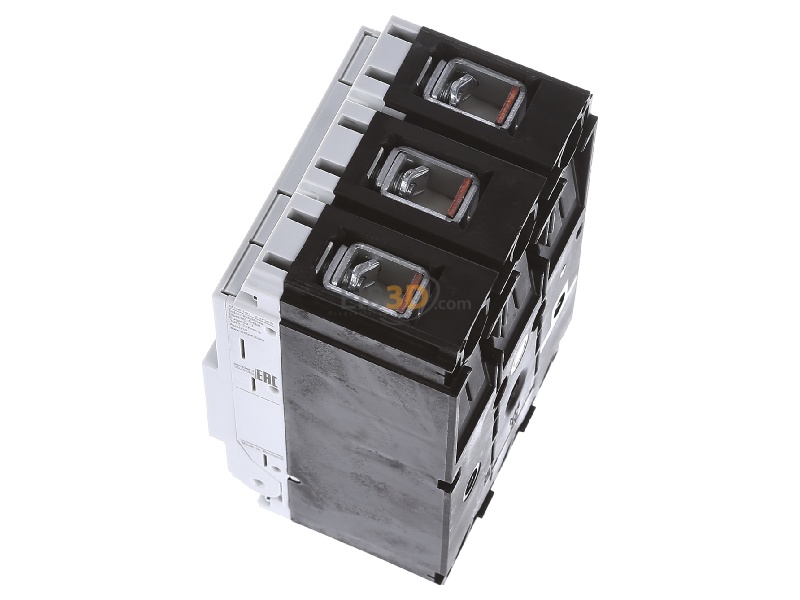

View top left Eaton (Moeller) N1-160 Safety switch 3-p
View top left
View top right Eaton (Moeller) N1-160 Safety switch 3-p
View top right

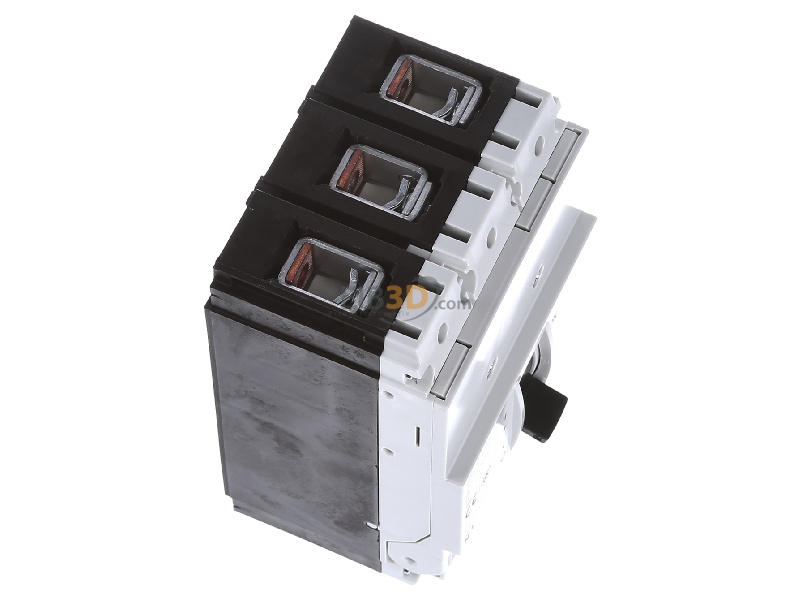

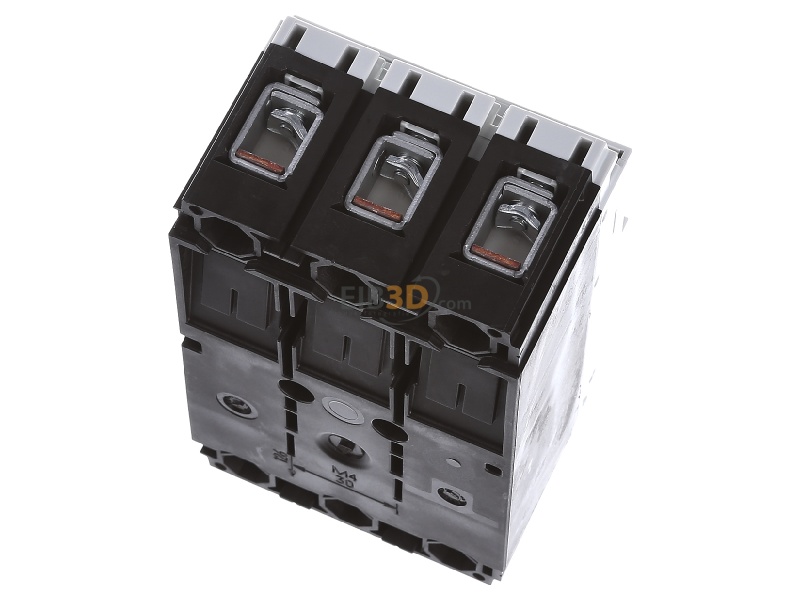

Top rear view Eaton (Moeller) N1-160 Safety switch 3-p
Top rear view
Product image 1 Eaton N1 160 Safety switch 3 p
Product image 1
Product image 2 Eaton N1 160 Safety switch 3 p
Product image 2
