Motion detector, 230 degrees, 12-24V, remote controlled, RC 230i UC whiteß

EAN/GTIN: 4015120015649
WEEE: DE 36503340
Manufacturer: ESYLUX
Manufacturer no.: RC 230i UC
Manufact.-SKU: EM10015649
Customs tariff no.: 85365019
Similar top items: Show now & compare
79,14 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Motion sensor complete 0...230° white Model Movement sensor, Sensor type Passive infrared, Creep-under protection, Scan angle 230°, Optimum mounting height 2,5m, Staircase monitoring, Max. transmission range sideways 20m, Max. transmission range frontally 8m, Diameter detection range on floor 40m, Remote operation, Response value sensitivity adjustable, Response value luminosity adjustable, Teach-function for response value luminosity, Suitable for ceiling mounting, Suitable for wall mounting, Mounting method Surface mounted (plaster), Connection type Screwed terminal, Material Plastic, Material quality Thermoplastic, Surface protection Untreated, Surface finishing Matt, Colour White, RAL-number (akin) 9010, Degree of protection (IP) IP54, Voltage type AC/DC, Frequency 50 ... 60Hz, Nominal voltage 24V, Min. switch-on time 15s, Max. duty cycle 30min, Switch-off delay 0s, Switching-on delay 5s, Detection angle horizontal 0 ... 230°, Pivoting range sensor, horizontal 0°, Pivoting range sensor, vertical 0°, Response value luminosity 2 ... 2500lx, Max. switching power 36W, Temperature -25 ... 55°C, Number of switching zones 1, Max. starting current 10A, Control current 0mA, Width 78mm, Height 105mm, Depth 135mm

More product images:

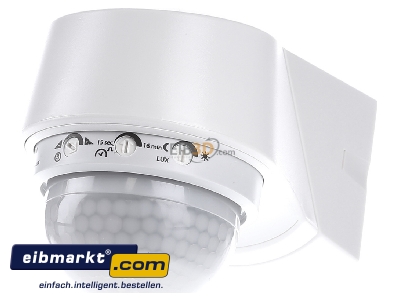

Front view ESYLUX ESYLUX RC 230i UC weiß Motion sensor complete 0...230° white -
Front view

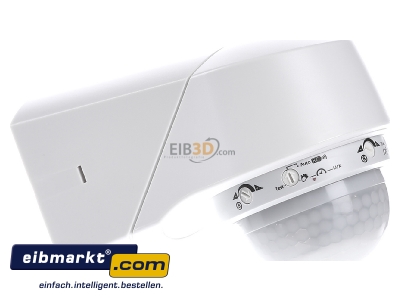

View on the left ESYLUX ESYLUX RC 230i UC weiß Motion sensor complete 0...230° white -
View on the left
View on the right ESYLUX ESYLUX RC 230i UC weiß Motion sensor complete 0...230° white -
View on the right

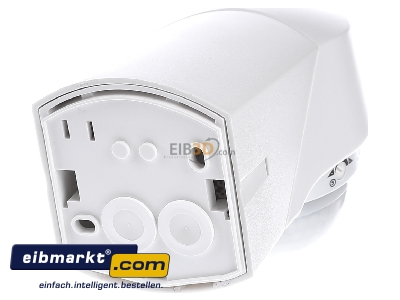

Back view ESYLUX ESYLUX RC 230i UC weiß Motion sensor complete 0...230° white -
Back view

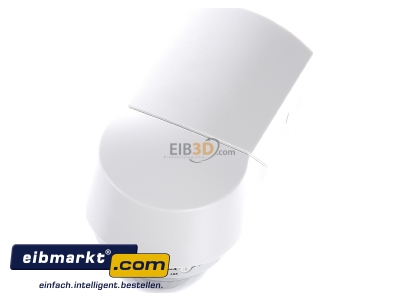

View up front ESYLUX ESYLUX RC 230i UC weiß Motion sensor complete 0...230° white -
View up front

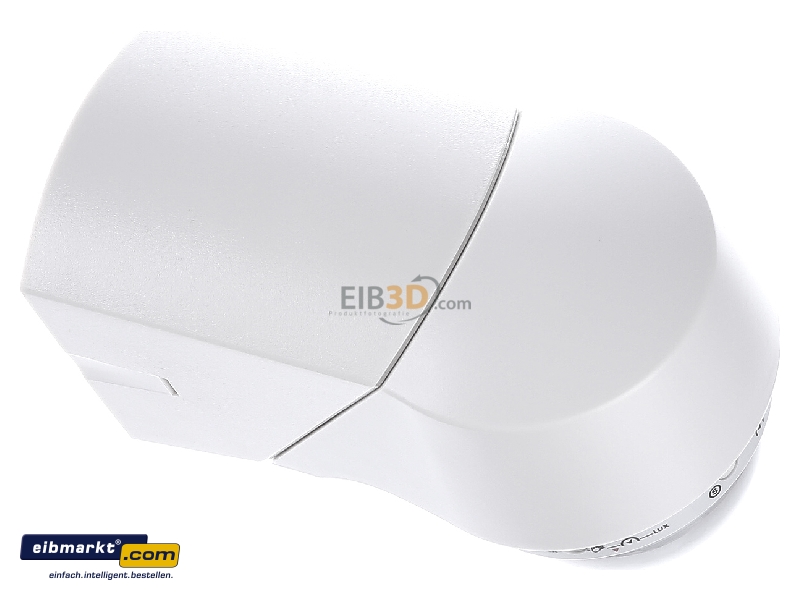

View top left ESYLUX ESYLUX RC 230i UC weiß Motion sensor complete 0...230° white -
View top left

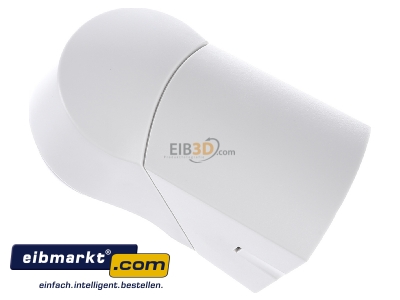

View top right ESYLUX ESYLUX RC 230i UC weiß Motion sensor complete 0...230° white -
View top right

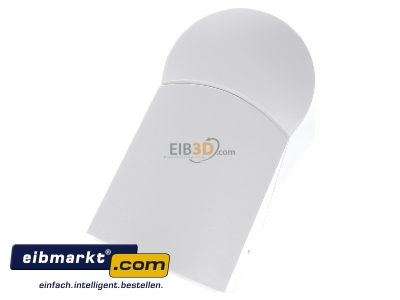

Top rear view ESYLUX ESYLUX RC 230i UC weiß Motion sensor complete 0...230° white -
Top rear view

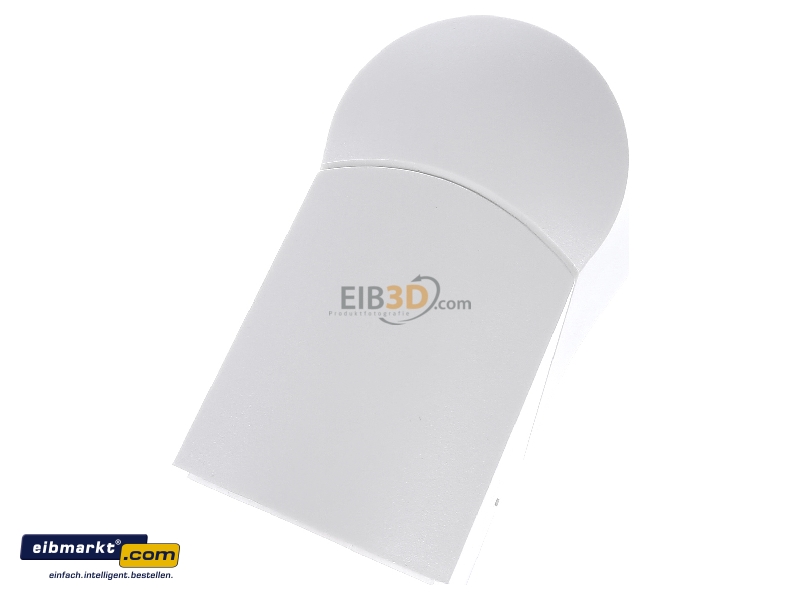

Product image ESYLUX RC 230i UC Motion detector  230 degrees  12 24V  remote controlled  whitess
Product image
Dimensional drawing ESYLUX RC 230i UC Motion detector  230 degrees  12 24V  remote controlled  whitess
Dimensional drawing
