Source photo: www.EIB3D.com

Residual current device, 4-pole, type B, universal current sensitive, DFS4 040-4/0,03-BSK

EAN/GTIN: 4014712148543
WEEE: DE 85624250
Manufacturer: Doepke
Manufacturer no.: DFS4 040-4/0,03-B SK
Manufact.-SKU: 09134998
Customs tariff no.: 85363030
Similar top items: Show now & compare
257,24 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Residual current breaker 4-p Number of poles 4, Rated voltage 400V, Rated current 40A, Rated fault current 30mA, Rated insulation voltage Ui 400V, Rated impulse withstand voltage Uimp 4kV, Mounting method DIN rail, Leakage current type B, Short-time delayed tripping, Short-circuit breaking capacity (Icw) 10kA, Surge current capacity 3kA, Frequency 50 Hz, Additional equipment possible, Degree of protection (IP) IP20, Width in number of modular spacings 4, Built-in depth 69mm, Ambient temperature during operating -25 ... 40°C, Pollution degree 2, Connectable conductor cross section multi-wired 1,5 ... 50mm², Connectable conductor cross section solid-core 1,5 ... 50mm²

More product images:

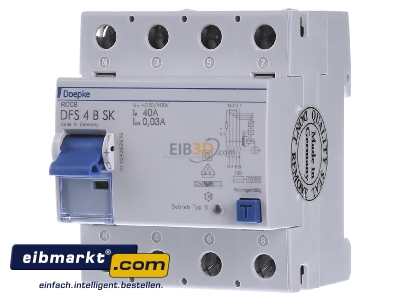

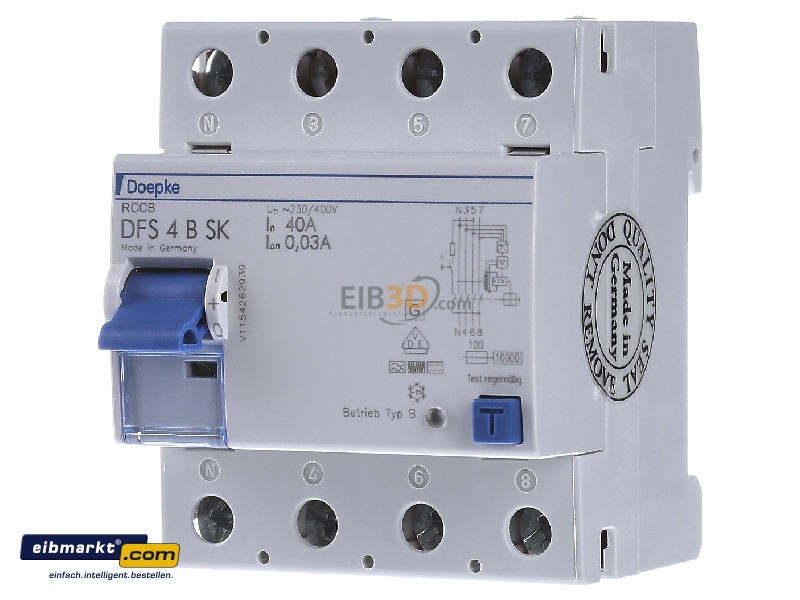

Front view Doepke DFS4 040-4/0,03-B SK Residual current breaker 4-p 40/0,03A
Front view

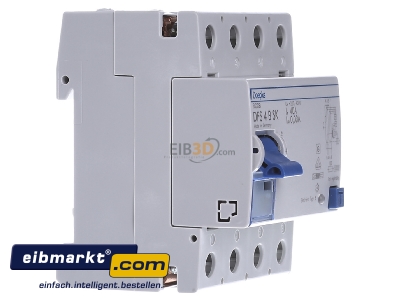

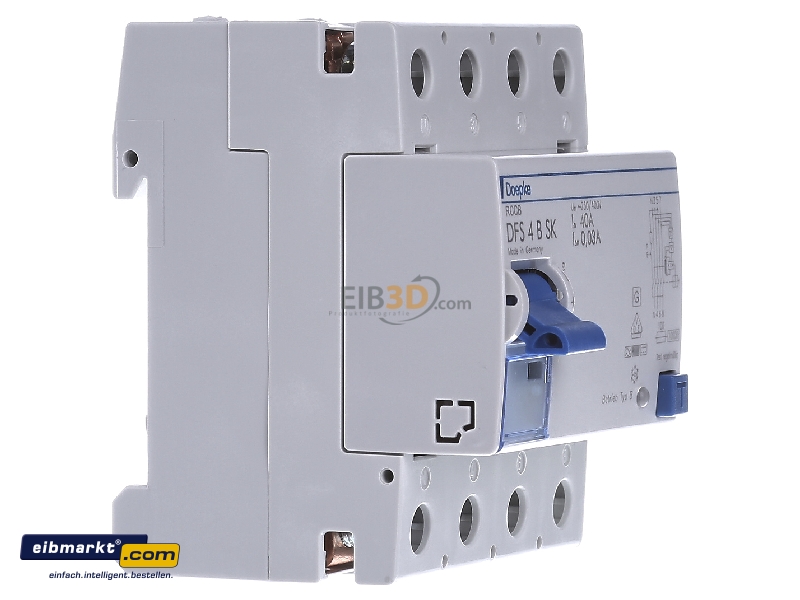

View on the left Doepke DFS4 040-4/0,03-B SK Residual current breaker 4-p 40/0,03A
View on the left

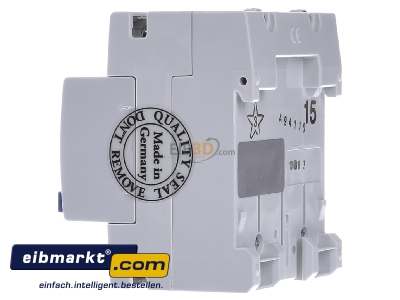

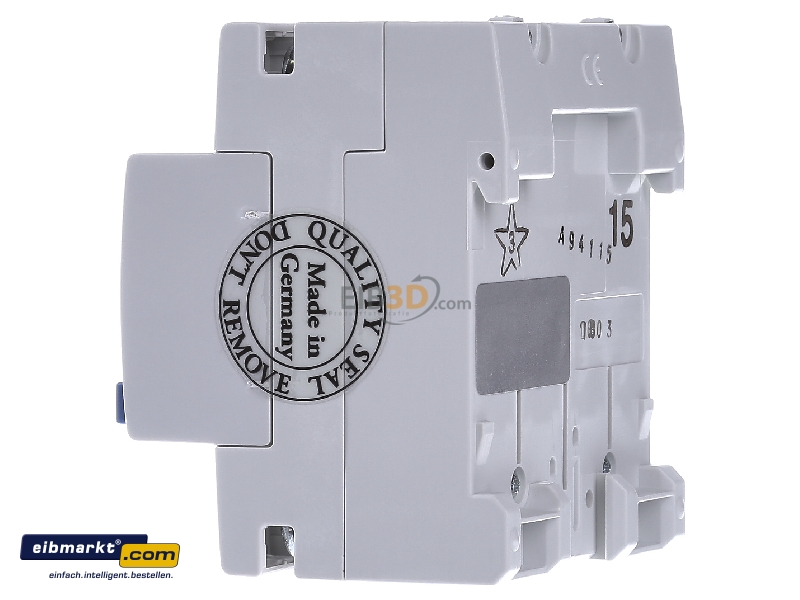

View on the right Doepke DFS4 040-4/0,03-B SK Residual current breaker 4-p 40/0,03A
View on the right

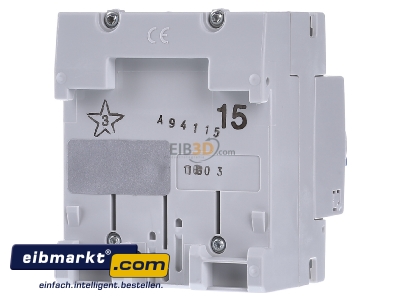

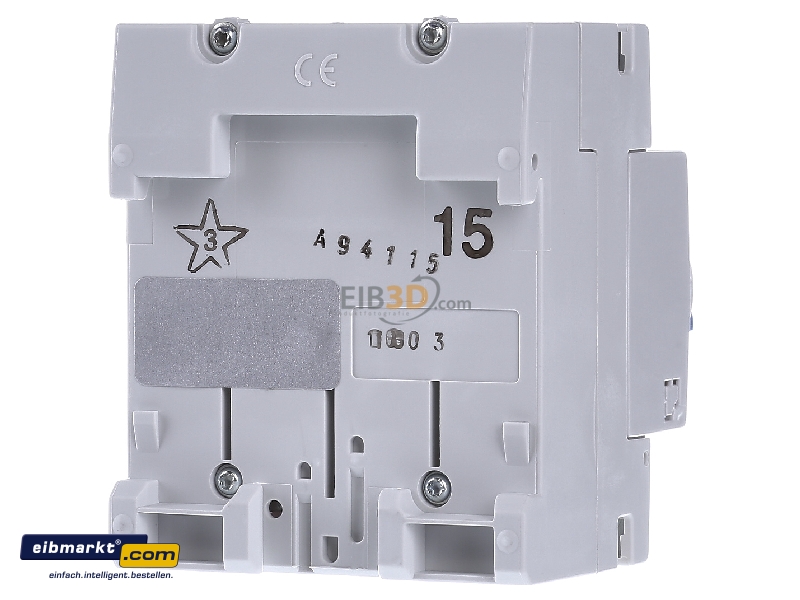

Back view Doepke DFS4 040-4/0,03-B SK Residual current breaker 4-p 40/0,03A
Back view

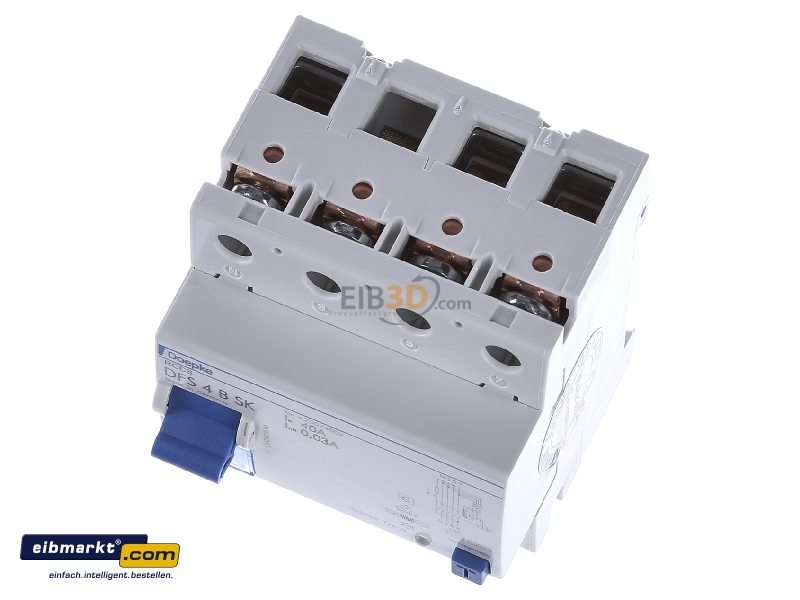

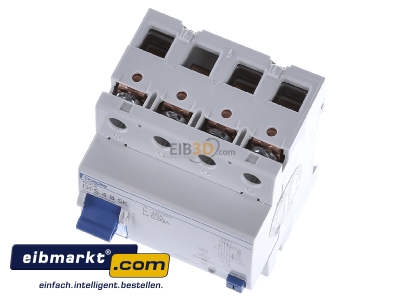

View up front Doepke DFS4 040-4/0,03-B SK Residual current breaker 4-p 40/0,03A
View up front
View top left Doepke DFS4 040-4/0,03-B SK Residual current breaker 4-p 40/0,03A
View top left

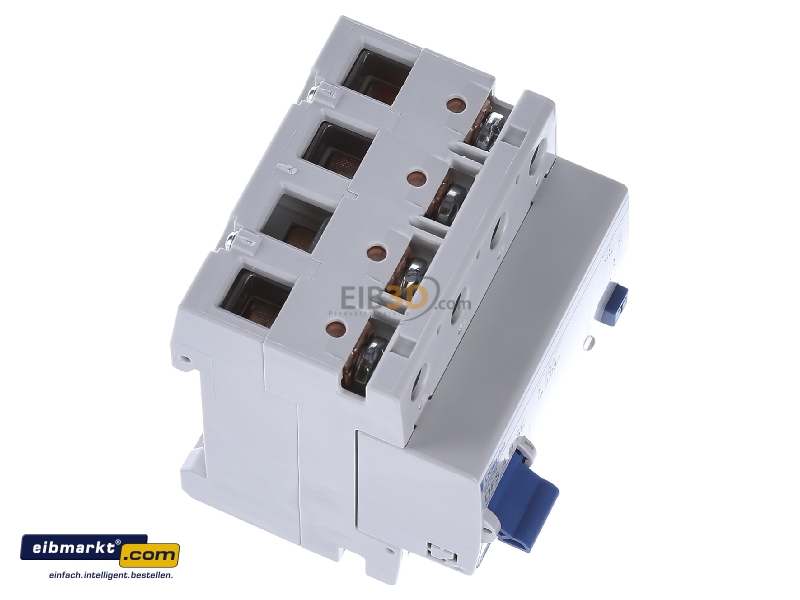

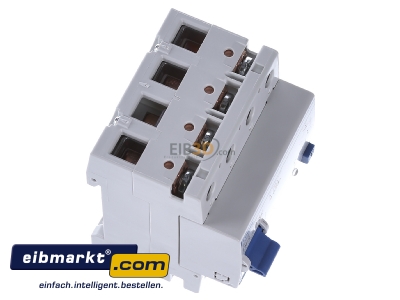

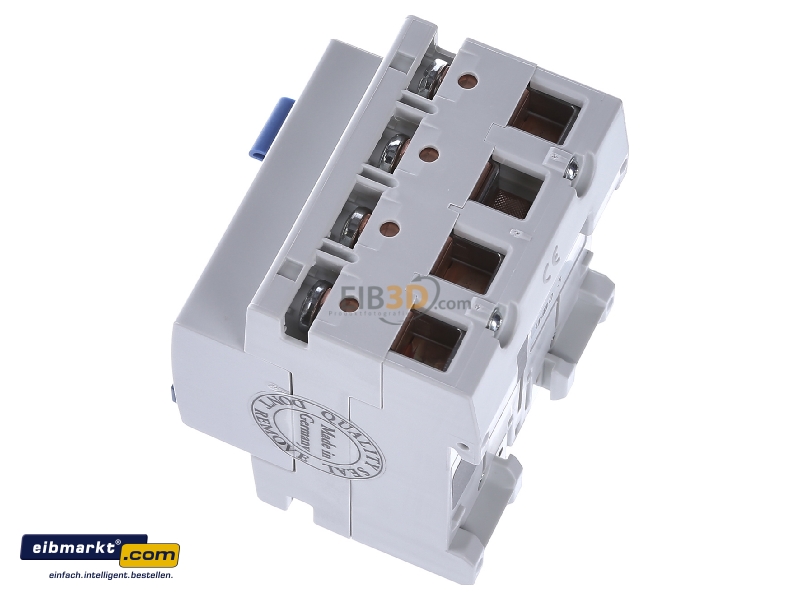

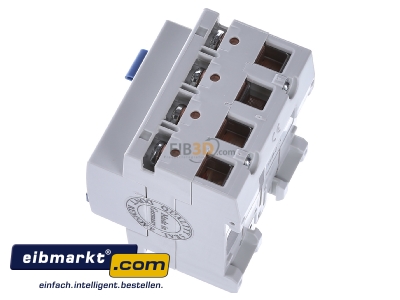

View top right Doepke DFS4 040-4/0,03-B SK Residual current breaker 4-p 40/0,03A
View top right

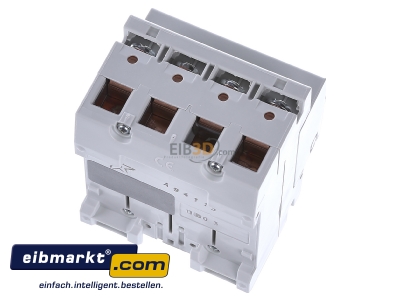

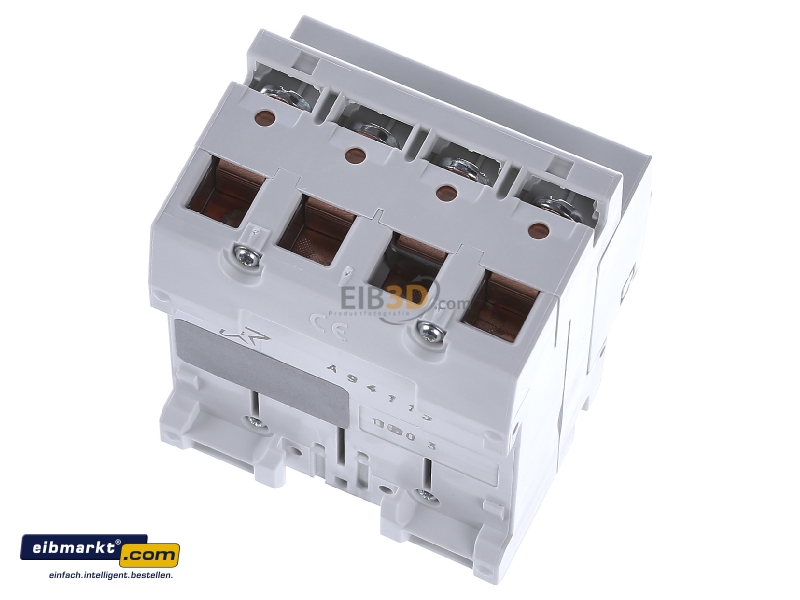

Top rear view Doepke DFS4 040-4/0,03-B SK Residual current breaker 4-p 40/0,03A
Top rear view
Product image Doepke DFS4 040 4 0 03 B SK Residual current device  4 pole  type B  universal current sensitive  DFS4 040 4 0 03 BSK
Product image
Circuit diagram Doepke DFS4 040 4 0 03 B SK Residual current device  4 pole  type B  universal current sensitive  DFS4 040 4 0 03 BSK
Circuit diagram
Dimensional drawing Doepke DFS4 040 4 0 03 B SK Residual current device  4 pole  type B  universal current sensitive  DFS4 040 4 0 03 BSK
Dimensional drawing
