Residual current breaker 2-p, DFS2 125-2/0,50-F
Source photo:
Doepke
(fig. might be different or similar)

Residual current breaker 2-p, DFS2 125-2/0,50-F

EAN/GTIN: 4014712213098
WEEE: DE 85624250
Manufacturer: Doepke
Manufacturer no.: DFS2 125-2/0,50-F
Manufact.-SKU: 09177020
Customs tariff no.: 85363030
Similar top items: Show now & compare
756,19 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
14-16 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Number of poles=2, Rated voltage=230 V, Rated current=125 A, Rated fault current=0,5 A, Rated insulation voltage Ui=400 V, Rated impulse withstand voltage Uimp=4 kV, Mounting method=DIN rail, Leakage current type=F, Selective protection=no, Short-time delayed tripping=yes, Short-circuit breaking capacity (Icw)=10 kA, Surge current capacity=3 kA, Voltage type=AC, With interlocking device=yes, Frequency=50 Hz, Additional equipment possible=yes, Degree of protection (IP)=IP20, Width in number of modular spacings=2, Built-in depth=69 mm, Ambient temperature during operating=-25..40 °C, Pollution degree=2, Connectable conductor cross section multi-wired=1,5..50 mm², Connectable conductor cross section solid-core=1,5..50 mm², Explosion-proof=no

More product images:

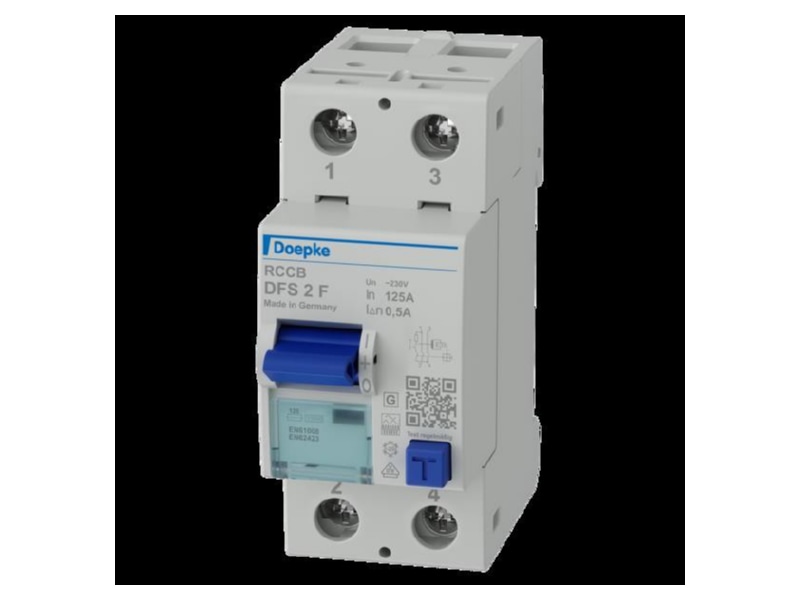

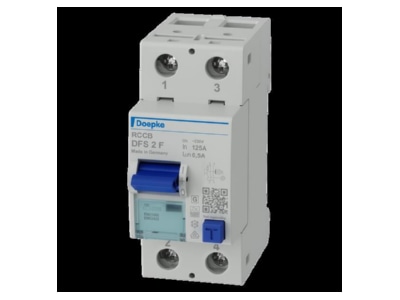

Product image Doepke DFS2 125 2 0 50 F Residual current breaker 2 p
Product image

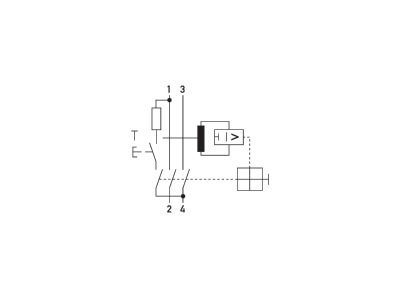

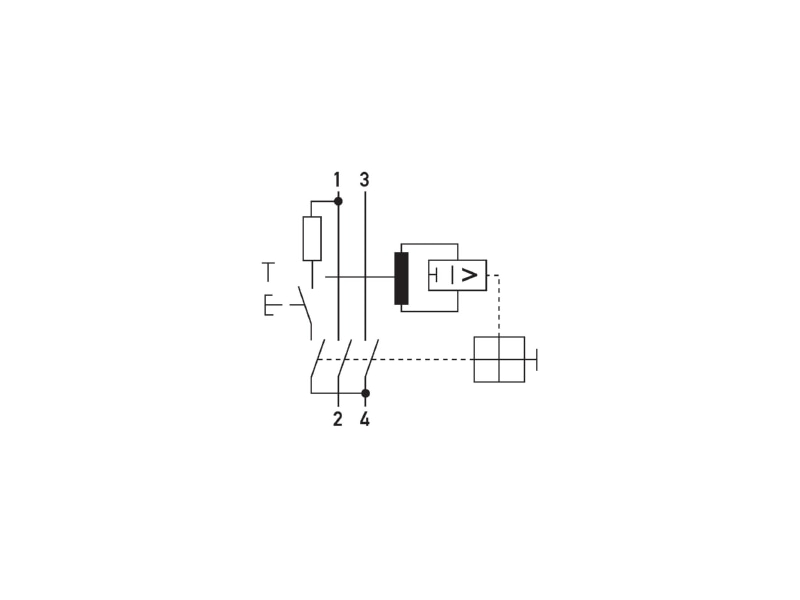

Circuit diagram Doepke DFS2 125 2 0 50 F Residual current breaker 2 p
Circuit diagram

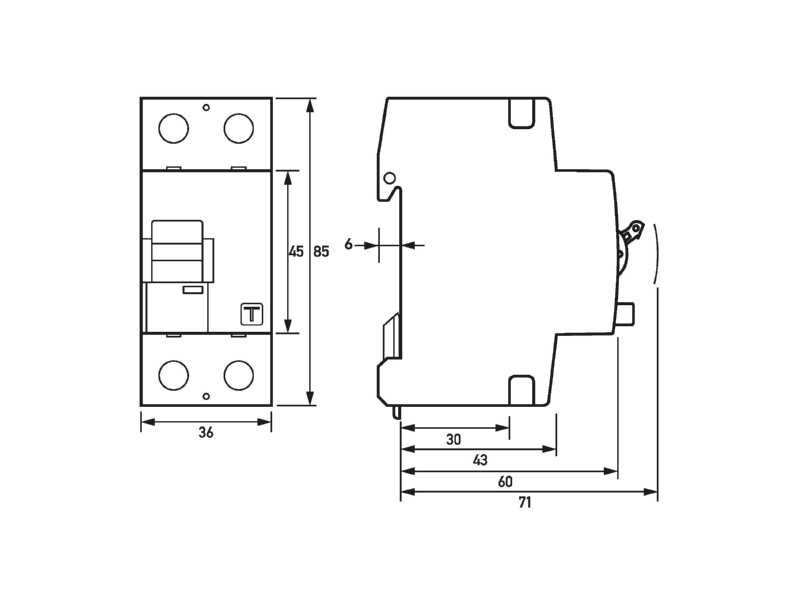

Dimensional drawing Doepke DFS2 125 2 0 50 F Residual current breaker 2 p
Dimensional drawing
