Surge protection for power supply DCU EMOB 2 16
Source photo:
Dehn
(fig. might be different or similar)

Surge protection for power supply DCU EMOB 2 16

EAN/GTIN: 4013364506183
WEEE: DE 11890845
Manufacturer: Dehn
Manufacturer no.: DCU EMOB 2 16
Customs tariff no.: 85371098
Similar top items: Show now & compare
90,99 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

System configuration DC=no, System configuration IT=no, System configuration TN=no, System configuration TN-C=no, System configuration TN-C-S=no, System configuration TN-S=yes, System configuration TT=yes, System configuration other=no, Number of conductors (without earthing)=4, Nominal discharge surge current (8/20)=10 kA, Max. discharge surge current (8/20)=20 kA, Nominal voltage AC=230 V, Max. continuous voltage AC=275 V, Max. continuous voltage DC=350 V, Voltage protection level L-N=1,5 kV, Voltage protection level N-PE=1,5 kV, Max. overcurrent protection device, parallel connection (fuse)=40 A, Max. overcurrent protection device, series connection (fuse)=25 A, Short-circuit breaking capacity (Isccr)=6 kA, Integrated short-circuit protection=no, Integrated backup fuse=no, Leakage-current free=no, Mounting method=DIN rail (top hat rail) 35 mm, Max. conductor cross section solid (solid, stranded)=6 mm², Max. conductor cross section flexible (fine-strand)=6 mm², With remote signalling contact=yes, Signalling at the device=Optic, Category type 2=yes, Degree of protection (IP)=IP20

More product images:

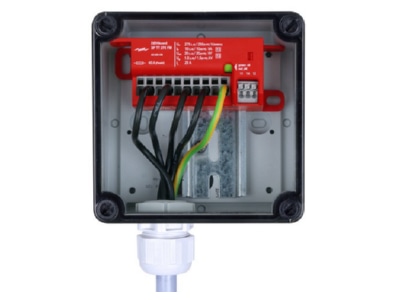

Product image 1 DEHN DCU EMOB 2 16 Surge protection for power supply
Product image 1
Product image 2 DEHN DCU EMOB 2 16 Surge protection for power supply
Product image 2

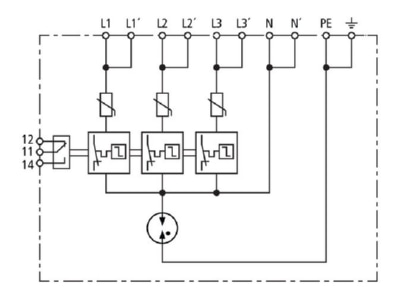

Circuit diagram DEHN DCU EMOB 2 16 Surge protection for power supply
Circuit diagram

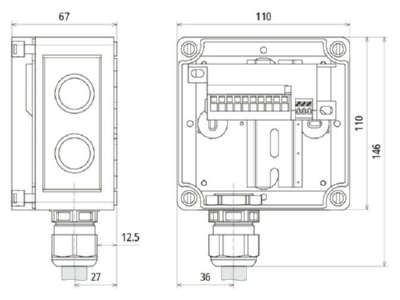

Dimensional drawing DEHN DCU EMOB 2 16 Surge protection for power supply
Dimensional drawing
