EIB, KNX system motion sensor white, 6122/02-884

EAN/GTIN: 4011395135297
WEEE: DE 91945327
Manufacturer: Busch Jaeger
Manufacturer no.: 6122/02-884
Manufact.-SKU: 2CKA006132A0270
Customs tariff no.: 85389099
Similar top items: Show now & compare
79,57 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
20-22 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Movement sensor for home automation Bus system KNX, Bus system Powernet, Model Movement sensor, Mounting method Flush mounted (plaster), Material Plastic, Material quality Thermoplastic, Colour White, RAL-number (akin) 9016, Operation mode switch, Staircase monitoring, Optimum mounting height 1,1m, Max. transmission range sideways 2,5m, Max. transmission range frontally 10m, Detection angle vertical -5 ... -40°, Detection angle horizontal 0 ... 180°, Number of channels 4, Number of binary inputs 0, Min. switch-on time 10s, Max. duty cycle 17min

More product images:

Front view Busch-Jaeger 6132-0-0270 System motion sensor white
Front view
View on the left Busch-Jaeger 6132-0-0270 System motion sensor white
View on the left
View on the right Busch-Jaeger 6132-0-0270 System motion sensor white
View on the right
Back view Busch-Jaeger 6132-0-0270 System motion sensor white
Back view
View up front Busch-Jaeger 6132-0-0270 System motion sensor white
View up front
View top left Busch-Jaeger 6132-0-0270 System motion sensor white
View top left
View top right Busch-Jaeger 6132-0-0270 System motion sensor white
View top right
Top rear view Busch-Jaeger 6132-0-0270 System motion sensor white
Top rear view

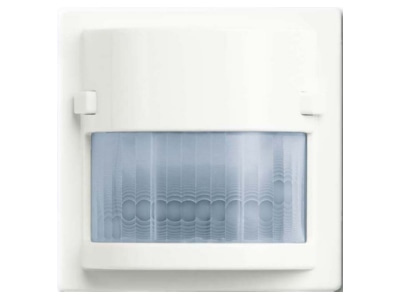

Product image Busch Jaeger 6122 02 884 EIB  KNX system motion sensor white
Product image

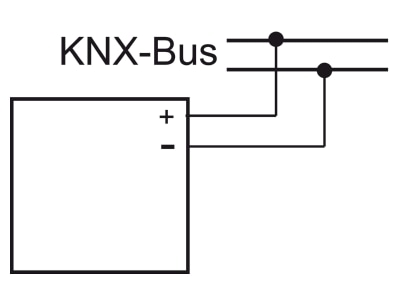

Wiring plan Busch Jaeger 6122 02 884 EIB  KNX system motion sensor white
Wiring plan

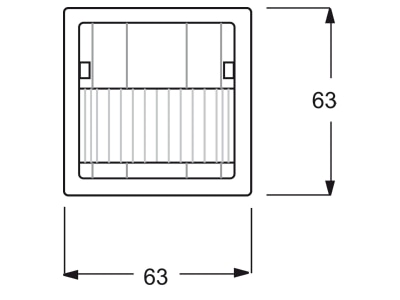

Dimensional drawing Busch Jaeger 6122 02 884 EIB  KNX system motion sensor white
Dimensional drawing
