EIB, KNX system motion sensor grey, 6122/02-803
Source photo:
Busch Jaeger
(fig. might be different or similar)

EIB, KNX system motion sensor grey, 6122/02-803

EAN/GTIN: 4011395135273
WEEE: DE 91945327
Manufacturer: Busch Jaeger
Manufacturer no.: 6122/02-803
Manufact.-SKU: 2CKA006132A0268
Customs tariff no.: 85389099
Similar top items: Show now & compare
79,57 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
20-22 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Movement sensor for home automation Bus system KNX, Bus system Powernet, Model Movement sensor, Mounting method Flush mounted (plaster), Material Plastic, Material quality Thermoplastic, Colour Grey, Operation mode switch, Staircase monitoring, Optimum mounting height 1,1m, Max. transmission range sideways 2,5m, Max. transmission range frontally 10m, Detection angle vertical -5 ... -40°, Detection angle horizontal 0 ... 180°, Number of channels 4, Number of binary inputs 0, Min. switch-on time 10s, Max. duty cycle 17min

More product images:

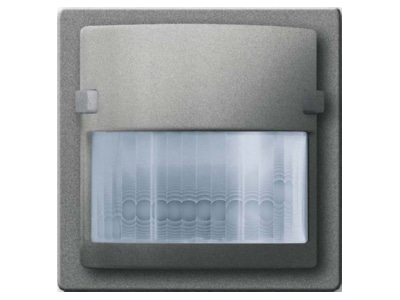

Product image Busch Jaeger 6122 02 803 EIB  KNX system motion sensor grey
Product image

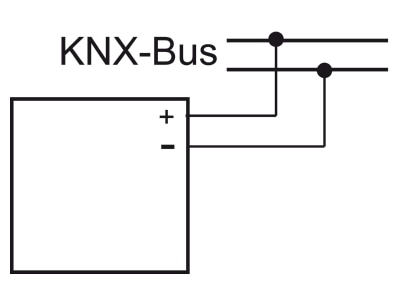

Wiring plan Busch Jaeger 6122 02 803 EIB  KNX system motion sensor grey
Wiring plan

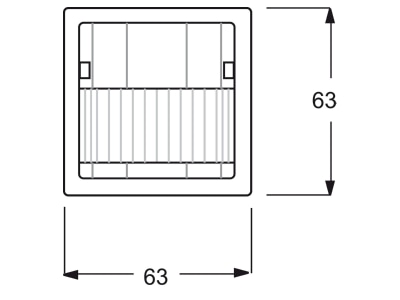

Dimensional drawing Busch Jaeger 6122 02 803 EIB  KNX system motion sensor grey
Dimensional drawing
