Movement sensor 15m 6800-35-102C

EAN/GTIN: 4011395891209
WEEE: DE 91945327
Manufacturer: Busch Jaeger
Manufacturer no.: 6800-35-102C
Manufact.-SKU: 2CKA006800A1740
Customs tariff no.: 85389099
Similar top items: Show now & compare
87,89 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Movement sensor 15m Model Movement sensor, Mounting method Flush mounted (plaster), Networkable, Mounting height 1,1m, Max. transmission range sideways 10m, Max. transmission range frontally 15m, Response value luminosity adjustable, Staircase monitoring, Material Plastic, Material quality Thermoplastic, Halogen free, Suitable for degree of protection (IP) IP44, Min. switch-on time 10s, Max. duty cycle 32min, Detection angle horizontal 0 ... 180°, Colour Anthracite, RAL-number (akin) 7021

More product images:

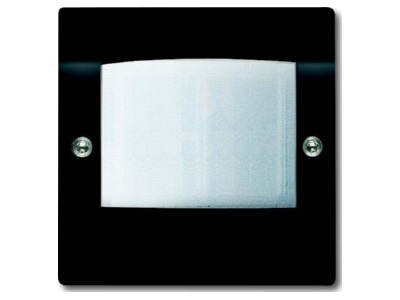

Front view Busch-Jaeger 6800-35-102C System motion sensor 0...180° anthracite
Front view
View on the left Busch-Jaeger 6800-35-102C System motion sensor 0...180° anthracite
View on the left
View on the right Busch-Jaeger 6800-35-102C System motion sensor 0...180° anthracite
View on the right
Back view Busch-Jaeger 6800-35-102C System motion sensor 0...180° anthracite
Back view
View up front Busch-Jaeger 6800-35-102C System motion sensor 0...180° anthracite
View up front
View top left Busch-Jaeger 6800-35-102C System motion sensor 0...180° anthracite
View top left
View top right Busch-Jaeger 6800-35-102C System motion sensor 0...180° anthracite
View top right
Top rear view Busch-Jaeger 6800-35-102C System motion sensor 0...180° anthracite
Top rear view
Product image Busch Jaeger 6800 35 102C Movement sensor 15m
Product image

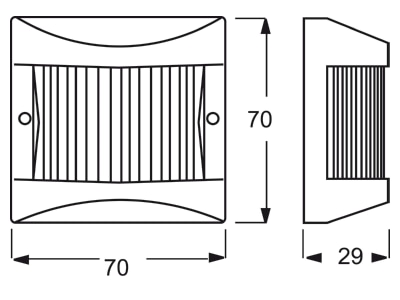

Dimensional drawing Busch Jaeger 6800 35 102C Movement sensor 15m
Dimensional drawing
