Socket outlet (receptacle) 20 EUJKST-71
Source photo:
Busch Jaeger
(fig. might be different or similar)

Socket outlet (receptacle) 20 EUJKST-71

EAN/GTIN: 4011395013106
WEEE: DE 91945327
Manufacturer: Busch Jaeger
Manufacturer no.: 20 EUJKST-71
Manufact.-SKU: 2CKA002013A5258
Customs tariff no.: 85366990
Similar top items: Show now & compare
12,27 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
20-22 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Socket outlet (receptacle) Model Protective contact (SCHUKO), Protective contact, Number of active Pins (round) 2, Number of active Pins (flat) 0, Number of units 1, Number of modules (module system) 0, Number of socket outlets switchable 0, Number of phases 1, Imprint/indication Without imprint, Connection type Plug clamp, With child-protection, Colour Black, RAL-number (akin) 9005, Over voltage protection, Special power supply No special power supply, Mounting method Flush mounted (plaster), Type of fastening Mounting with screw, Material Plastic, Material quality Thermoplastic, Halogen free, Surface protection Untreated, Surface finishing Glossy, With loop through function, Nominal current 16A, Nominal voltage 230V, Frequency 50 ... 50Hz, Suitable for degree of protection (IP) IP20, Impact strength IK03, Min. depth of built-in installation box 40mm, Cover Full cover plate

More product images:

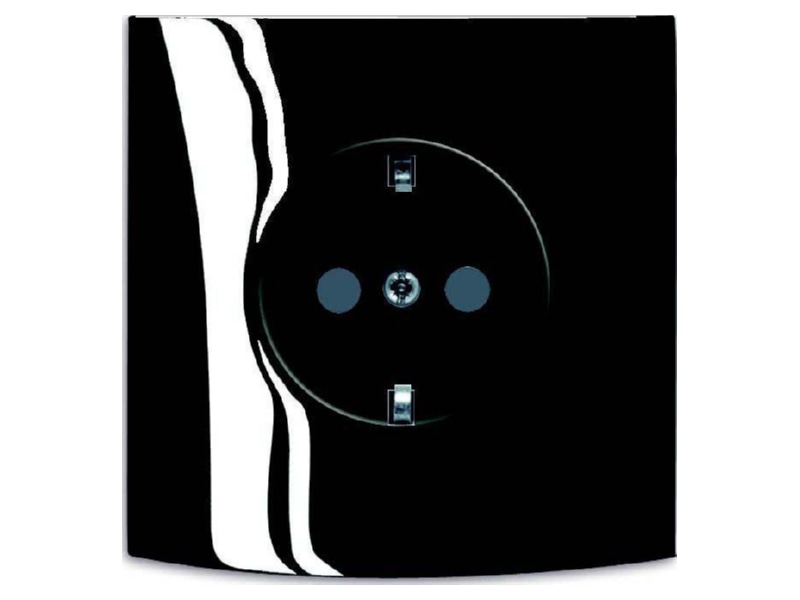

Product image Busch Jaeger 20 EUJKST 71 Socket outlet  receptacle
Product image

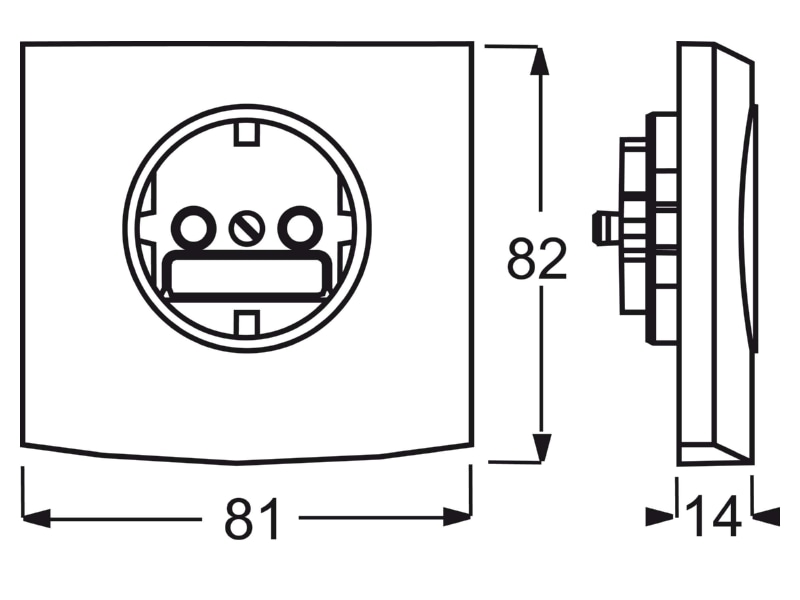

Dimensional drawing Busch Jaeger 20 EUJKST 71 Socket outlet  receptacle
Dimensional drawing
