Presence detector 6811 EB

EAN/GTIN: 4011395133323
WEEE: DE 91945327
Manufacturer: Busch Jaeger
Manufacturer no.: 6811 EB
Manufact.-SKU: 2CKA006800A2508
Customs tariff no.: 85365080
Similar top items: Show now & compare
64,74 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Presence detector Model Presence detector, Sensor type Passive infrared, Creep-under protection, Optimum mounting height 3m, Staircase monitoring, Diameter detection range on floor 6m, Response value sensitivity adjustable, Response value luminosity adjustable, Mounting method Other, Material Plastic, Material quality Thermoplastic, Halogen free, Surface protection Untreated, Surface finishing Matt, Colour White, RAL-number (akin) 9010, Degree of protection (IP) IP20, Frequency 50 ... 50Hz, Nominal voltage 230V, Min. switch-on time 60s, Max. duty cycle 15min, Detection angle horizontal 360 ... 360°, Response value luminosity 10 ... 1000lx, Max. switching power 2000W, Temperature 0 ... 45°C, Max. starting current 80A

More product images:

Front view Busch Jaeger 6811 EB Presence detector
Front view
View on the left Busch Jaeger 6811 EB Presence detector
View on the left
View on the right Busch Jaeger 6811 EB Presence detector
View on the right
Back view Busch Jaeger 6811 EB Presence detector
Back view
View up front Busch Jaeger 6811 EB Presence detector
View up front
View top left Busch Jaeger 6811 EB Presence detector
View top left
View top right Busch Jaeger 6811 EB Presence detector
View top right
Top rear view Busch Jaeger 6811 EB Presence detector
Top rear view

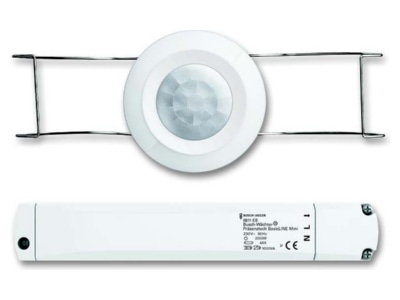

Product image Busch Jaeger 6811 EB Presence detector
Product image

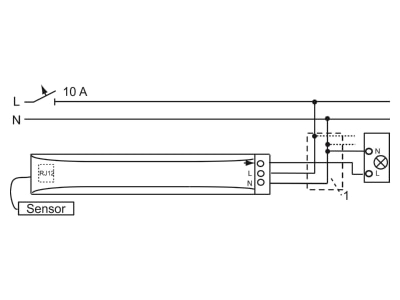

Wiring plan 1 Busch Jaeger 6811 EB Presence detector
Wiring plan 1

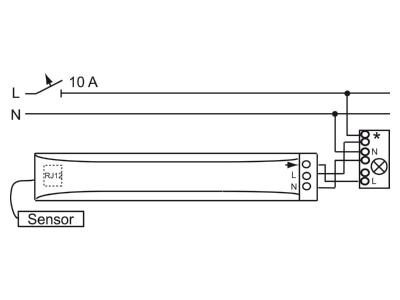

Wiring plan 2 Busch Jaeger 6811 EB Presence detector
Wiring plan 2

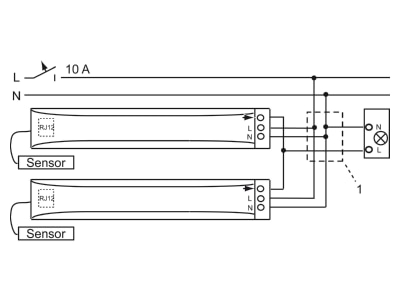

Wiring plan 3 Busch Jaeger 6811 EB Presence detector
Wiring plan 3

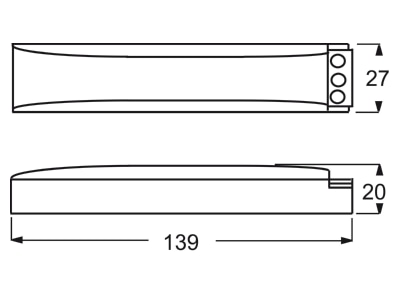

Dimensional drawing 1 Busch Jaeger 6811 EB Presence detector
Dimensional drawing 1
Dimensional drawing 2 Busch Jaeger 6811 EB Presence detector
Dimensional drawing 2
