Source photo: www.EIB3D.com

Movement sensor 16m 6847/8 AGM-204

EAN/GTIN: 4011395163054
WEEE: DE 91945327
Manufacturer: Busch Jaeger
Manufacturer no.: 6847/8 AGM-204
Manufact.-SKU: 2CKA006800A2599
Customs tariff no.: 85365080
Similar top items: Show now & compare
77,62 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
20-22 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Movement sensor 16m Model Movement sensor, Forced switch off, Creep-under protection, Optimum mounting height 2,5m, Staircase monitoring, Max. transmission range sideways 16m, Max. transmission range frontally 16m, Diameter detection range on floor 32m, Remote operation, Response value sensitivity adjustable, Response value luminosity adjustable, Teach-function for response value luminosity, Mounting method Surface mounted (plaster), Material Plastic, Material quality Thermoplastic, Halogen free, Surface protection Untreated, Surface finishing Matt, Colour White, RAL-number (akin) 9010, Degree of protection (IP) IP55, Frequency 50 ... 60Hz, Nominal voltage 230V, Min. switch-on time 10s, Max. duty cycle 30min, Detection angle horizontal 8 ... 220°, Response value luminosity 0,5 ... 1000lx, Max. switching power 3680W, Temperature -25 ... 55°C, Max. starting current 80A

More product images:

Front view Busch Jaeger 6847/8 AGM-204 Motion sensor complete 8...220° white
Front view
View on the left Busch Jaeger 6847/8 AGM-204 Motion sensor complete 8...220° white
View on the left
View on the right Busch Jaeger 6847/8 AGM-204 Motion sensor complete 8...220° white
View on the right
Back view Busch Jaeger 6847/8 AGM-204 Motion sensor complete 8...220° white
Back view
View up front Busch Jaeger 6847/8 AGM-204 Motion sensor complete 8...220° white
View up front
View top left Busch Jaeger 6847/8 AGM-204 Motion sensor complete 8...220° white
View top left
View top right Busch Jaeger 6847/8 AGM-204 Motion sensor complete 8...220° white
View top right
Top rear view Busch Jaeger 6847/8 AGM-204 Motion sensor complete 8...220° white
Top rear view
Product image Busch Jaeger 6847 8 AGM 204 Movement sensor 16m
Product image

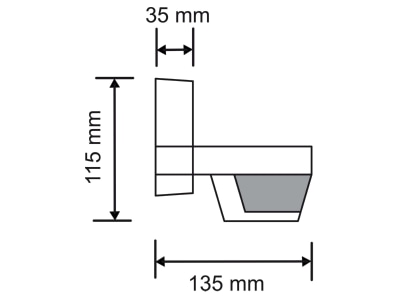

Dimensional drawing 1 Busch Jaeger 6847 8 AGM 204 Movement sensor 16m
Dimensional drawing 1

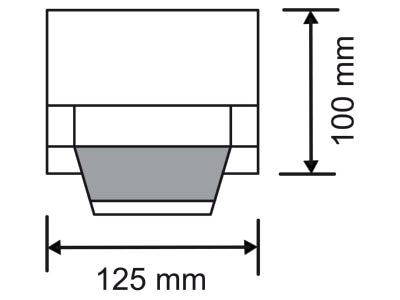

Dimensional drawing 2 Busch Jaeger 6847 8 AGM 204 Movement sensor 16m
Dimensional drawing 2
