Source photo: www.EIB3D.com

Electronic switch relay 6401 U-102

EAN/GTIN: 4011395991299
WEEE: DE 91945327
Manufacturer: Busch Jaeger
Manufacturer no.: 6401 U-102
Manufact.-SKU: 2CKA006401A0048
Customs tariff no.: 85389099
Similar top items: Show now & compare
55,74 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Electronic switch relay Assembly arrangement Basic element, Model Relay, Type of load Universal, Substation input, Applicable with button, Applicable with movement sensor, Applicable with presence indicator, Applicable with time switch/timer, Applicable with infrared button, Mounting method Flush mounted (plaster), Material Plastic, Material quality Other, Surface protection Untreated, Surface finishing Glossy, Colour Black, Nominal voltage 230V, Frequency 50 ... 50Hz, Rated current 10A, Switch capacity 0 ... 2300W, Type of fastening Mounting with claw and screw

More product images:

Front view Busch-Jaeger 6401 U-102 Electronic switch relay
Front view
View on the left Busch-Jaeger 6401 U-102 Electronic switch relay
View on the left
View on the right Busch-Jaeger 6401 U-102 Electronic switch relay
View on the right
Back view Busch-Jaeger 6401 U-102 Electronic switch relay
Back view
View up front Busch-Jaeger 6401 U-102 Electronic switch relay
View up front
View top left Busch-Jaeger 6401 U-102 Electronic switch relay
View top left
View top right Busch-Jaeger 6401 U-102 Electronic switch relay
View top right
Top rear view Busch-Jaeger 6401 U-102 Electronic switch relay
Top rear view

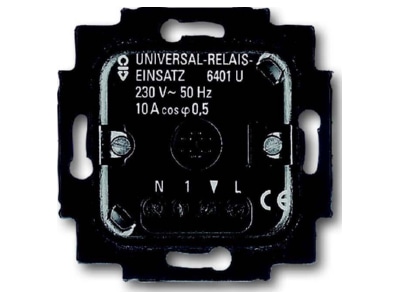

Product image Busch Jaeger 6401 U 102 Electronic switch relay
Product image

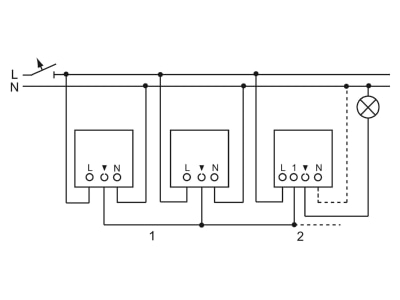

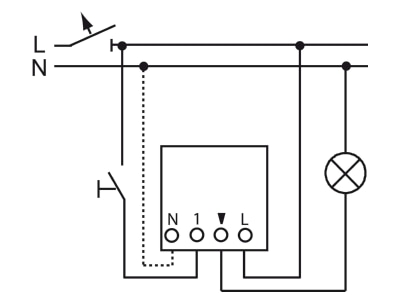

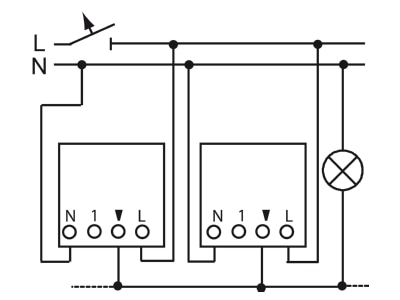

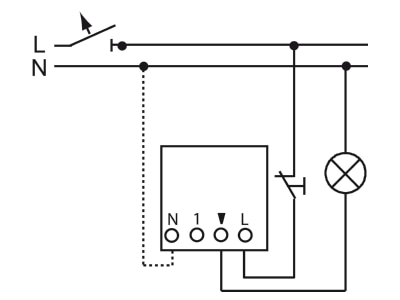

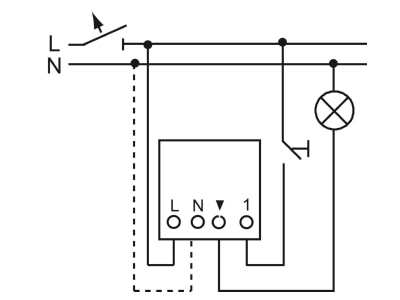

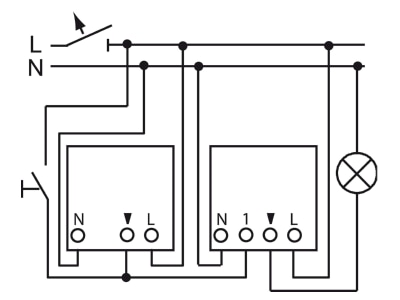

Wiring plan 1 Busch Jaeger 6401 U 102 Electronic switch relay
Wiring plan 1
Wiring plan 2 Busch Jaeger 6401 U 102 Electronic switch relay
Wiring plan 2
Wiring plan 3 Busch Jaeger 6401 U 102 Electronic switch relay
Wiring plan 3
Wiring plan 4 Busch Jaeger 6401 U 102 Electronic switch relay
Wiring plan 4
Wiring plan 5 Busch Jaeger 6401 U 102 Electronic switch relay
Wiring plan 5
Wiring plan 6 Busch Jaeger 6401 U 102 Electronic switch relay
Wiring plan 6

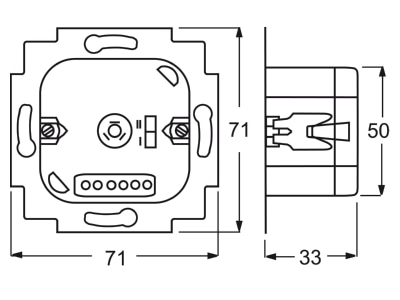

Dimensional drawing Busch Jaeger 6401 U 102 Electronic switch relay
Dimensional drawing
