Control unit for light control system 2112-101
Source photo:
Busch Jaeger
(fig. might be different or similar)

Control unit for light control system 2112-101

EAN/GTIN: 4011395631201
WEEE: DE 91945327
Manufacturer: Busch Jaeger
Manufacturer no.: 2112-101
Manufact.-SKU: 2CKA006599A2266
Customs tariff no.: 85334090
Similar top items: Show now & compare
54,33 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Control unit for light control system Mounting method DRA (DIN-rail adapter), Control current 50mA, Rated current 3A, Nominal voltage 230V, Frequency 50 ... 60Hz, Method of operation Turn button, Light value memory, Width of device 53mm, Height of device 85mm, Depth of device 74mm

More product images:

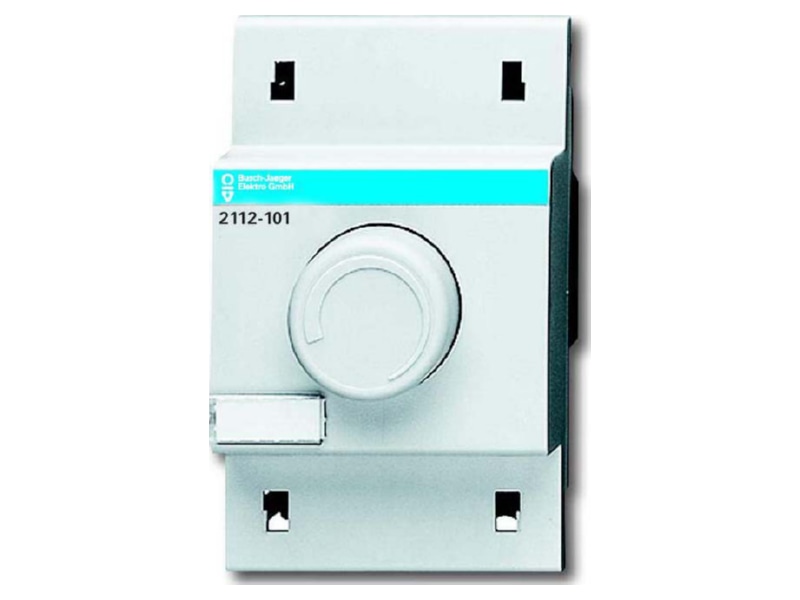

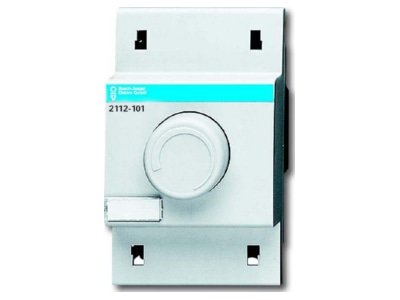

Product image Busch Jaeger 2112 101 Control unit for light control system
Product image

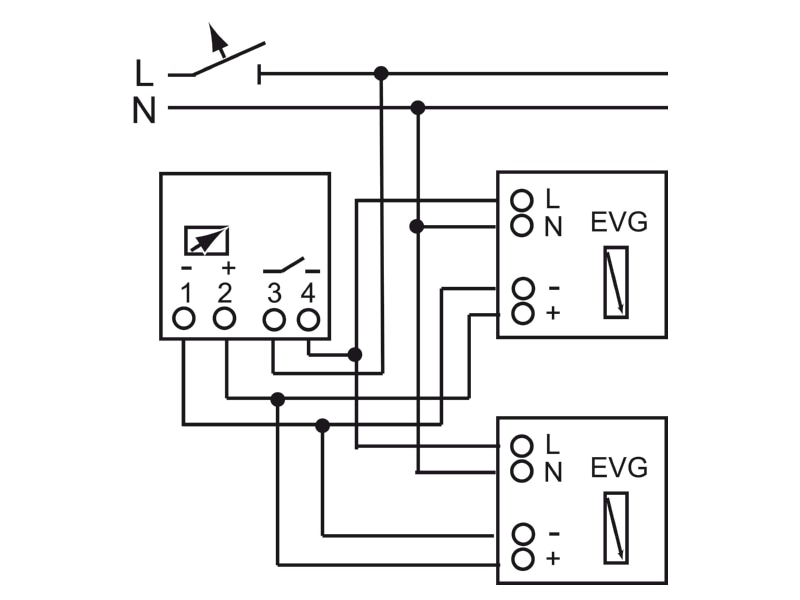

Wiring plan Busch Jaeger 2112 101 Control unit for light control system
Wiring plan

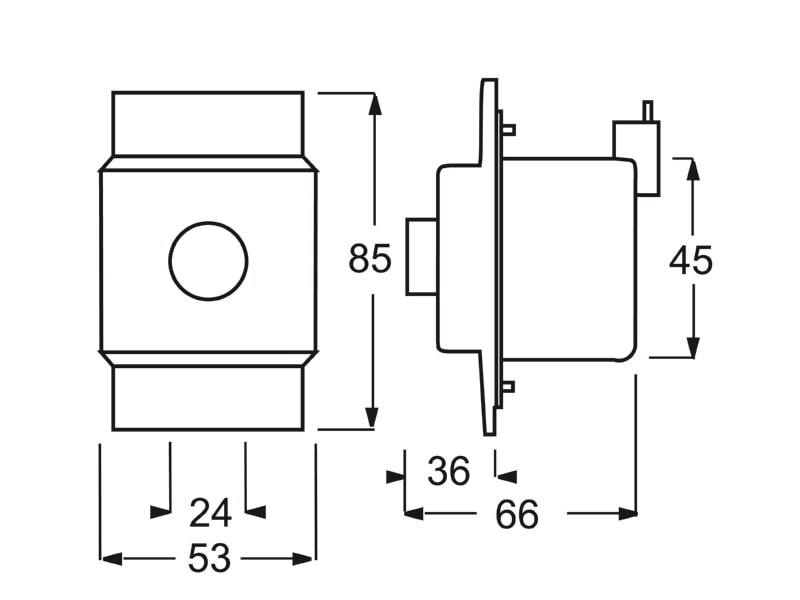

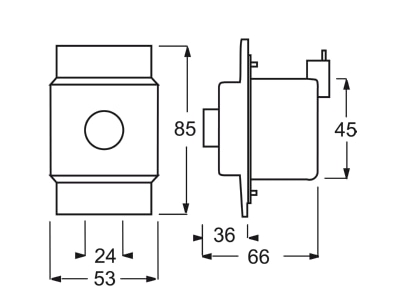

Dimensional drawing Busch Jaeger 2112 101 Control unit for light control system
Dimensional drawing
