Panel mounted socket outlet with 71094
Source photo:
Bals
(fig. might be different or similar)

Panel mounted socket outlet with 71094

EAN/GTIN: 4024941207737
WEEE: DE 34919455
Manufacturer: Bals
Manufacturer no.: 71094
Customs tariff no.: 85366990
Similar top items: Show now & compare
4,33 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Panel mounted socket outlet with Model Protective contact (SCHUKO), Material Plastic, Material quality Thermoplastic, Halogen free, Flange size 50x50 mm, With hinged lid, Degree of protection (IP) IP54, Angle of plug Straight, Connection system Screwed terminal, Colour Blue, RAL-number 5015, Number of poles 3, Nominal current 16A, Nominal voltage 250V, For heavy conditions (according to VDE)

More product images:

Product image 1 Bals 71094 Panel mounted socket outlet with
Product image 1
Product image 2 Bals 71094 Panel mounted socket outlet with
Product image 2

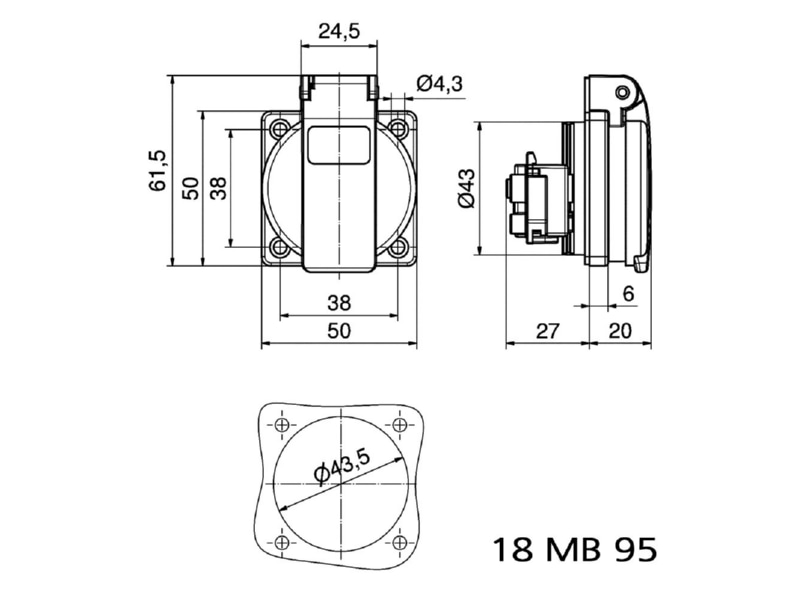

Dimensional drawing Bals 71094 Panel mounted socket outlet with
Dimensional drawing
