Movement sensor for bus system PD4N-M-DACO1C DALI-2
Source photo:
BEG
(fig. might be different or similar)

Movement sensor for bus system PD4N-M-DACO1C DALI-2

EAN/GTIN: 4007529934638
WEEE: DE 90433340
Manufacturer: BEG
Manufacturer no.: PD4N-M-DACO1C DALI-2
Manufact.-SKU: 93463
Customs tariff no.: 85365019
Similar top items: Show now & compare
145,30 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Bus system KNX=no, Bus system KNX-RF (Radio Frequent)=no, Bus system radio frequent=no, Bus system LON=no, Bus system Powernet=no, Other bus systems=Other, Model=Presence detector, Mounting method=Other, Material=Plastic, Material quality=Other, Surface protection=Untreated, Surface finishing=Matt, Colour=White, RAL-number (similar)=9010, Transparent=no, With bus connection=yes, Substation input=yes, Creep-under protection=yes, Operation mode switch=yes, Animal zone=no, Staircase light controller=yes, Response value luminosity adjustable=yes, Teach-function for response value luminosity=yes, Switch-off delay self-learning=no, DALI-2 certified=yes, Optimum mounting height=2,5 m, Max. reach sideways=12 m, Max. reach frontally=4 m, Diameter reach on floor=24 m, Number of channels=2, Switching power=2300 W, Min. switch-on time=60 s, Max. duty cycle=30 min

More product images:

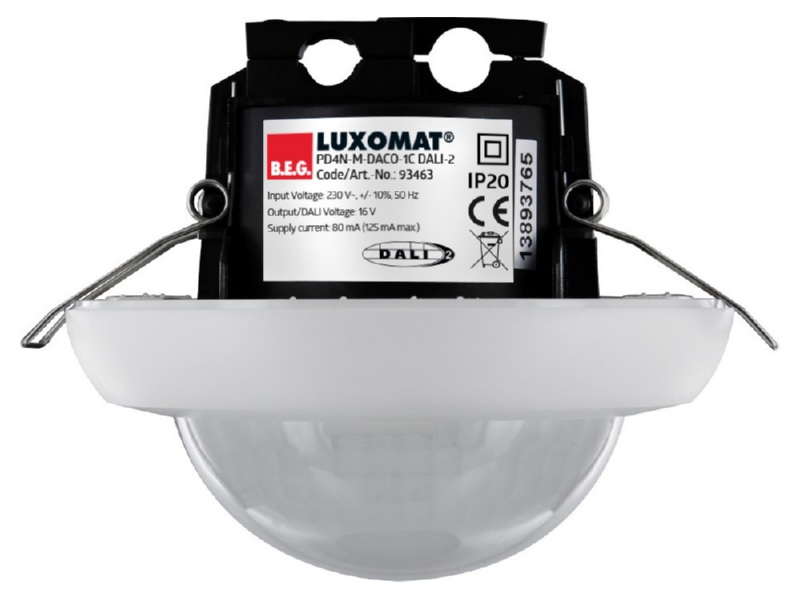

Product image BEG PD4N M DACO1C DALI 2 Movement sensor for bus system
Product image

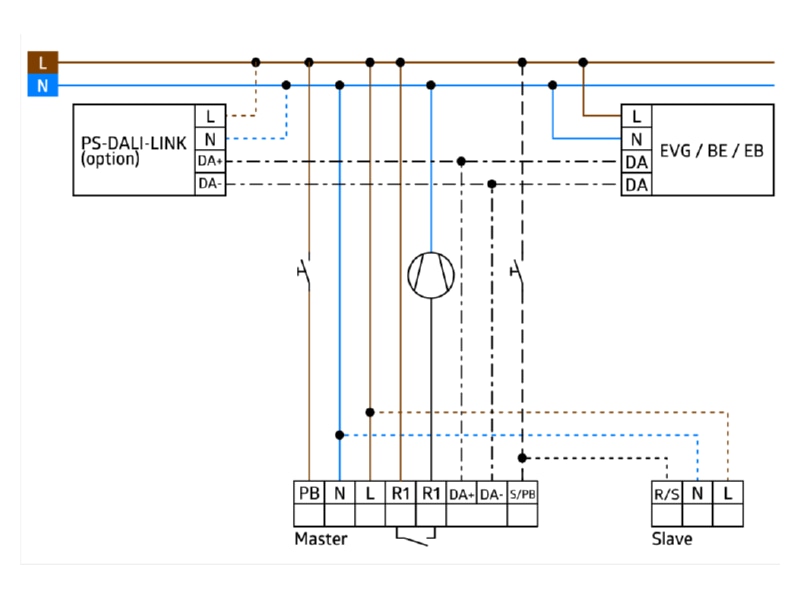

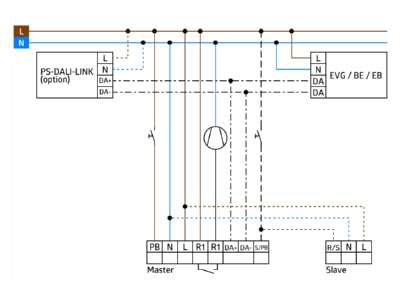

Wiring plan BEG PD4N M DACO1C DALI 2 Movement sensor for bus system
Wiring plan

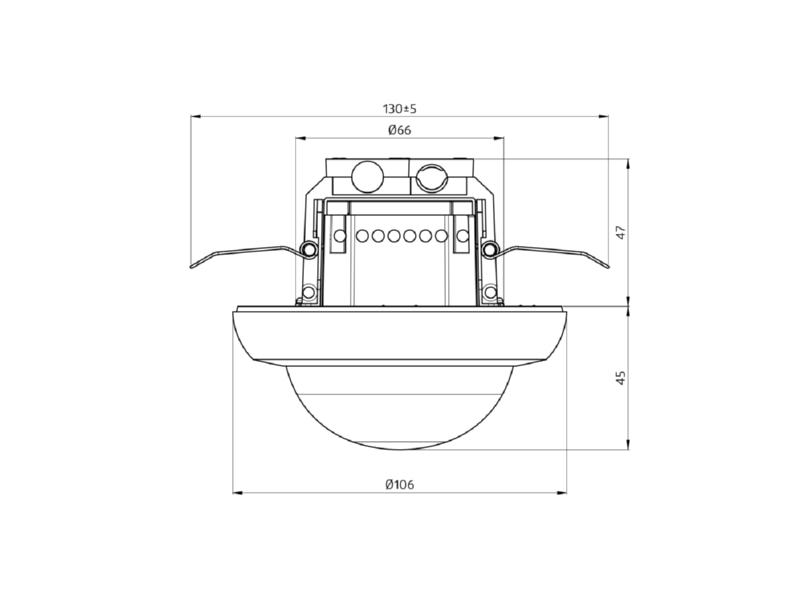

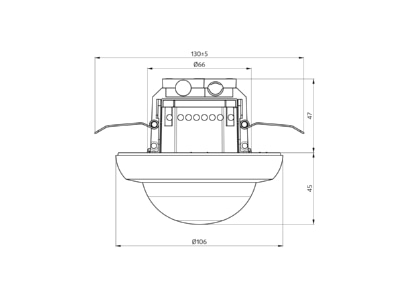

Dimensional drawing BEG PD4N M DACO1C DALI 2 Movement sensor for bus system
Dimensional drawing

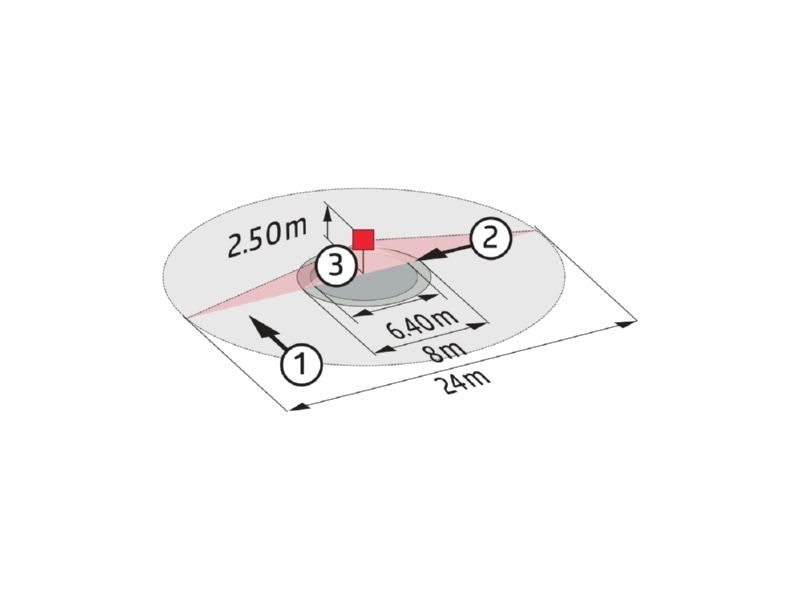

Cone diagram BEG PD4N M DACO1C DALI 2 Movement sensor for bus system
Cone diagram
