Movement sensor 280° 9m LC-plus 280 braun
Source photo:
BEG
(fig. might be different or similar)

Movement sensor 280° 9m LC-plus 280 braun

EAN/GTIN: 4007529910182
WEEE: DE 90433340
Manufacturer: BEG
Manufacturer no.: LC-plus 280 braun
Manufact.-SKU: 91018
Customs tariff no.: 85365080
Similar top items: Show now & compare
59,71 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Execution Motion detector, Sensor type passive infrared, With DALI interface no, HVAC control no, Animal zone no, Undercrawl / Rearfield no, Networkable no, Optimum mounting height 2.5 m, Staircase monitoring yes, Bypass switch no, Max. Range to one page 16 m, Max. Presence area 41,91 mm, Max. Range frontal 9 m, Detection field diameter on floor 20 m, Suitable for wireless transmission no, Remote control yes, With remote no, Sensitivity adjustable yes, Adjustable response brightness yes, With signal unit no, Teach function for response brightness yes, Suitable for ceiling mounting no, Suitable for wall mounting yes, Dimming function with dimming insert no, Material Plastic, Material quality other, Halogen free yes, Surface protection untreated, Execution of the surface frosted, Antibacterial treatment no, RAL number (similar) 8014, Transparent no, IP protection) IP54, Impact resistance IK02, Voltage AC, Frequency 50..60 Hz, Nominal voltage 240V, Minimum duty cycle 15 s, Max. Duty cycle 16 min, Switch-off 0 s, Delay 0 s, Response brightness 2..500 lx, Max. Switching capacity 2000 W, Max. switching capacity LED 300 W, Suitable for C-load no, Temperature -25..50 °C, Number of switching zones 620, Control current 2 mA, Extension input no, Alarm function no, Width 68 mm, Height 78 mm, Depth 110 mm, Compatible with Apple HomeKit no, Compatible with Google Assistant no, Compatible with Amazon Alexa no, IFTTT support available no

More product images:

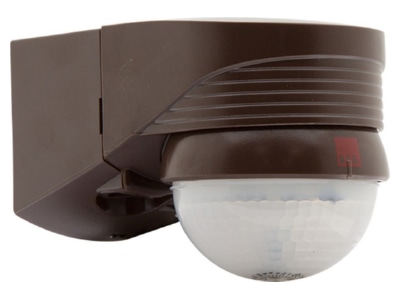

Product image BEG LC plus 280 braun Movement sensor 280  9m
Product image

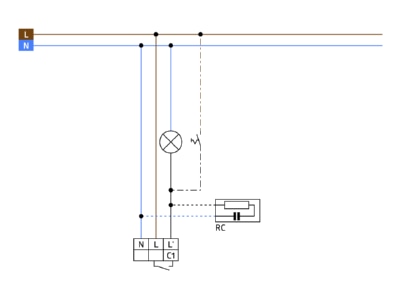

Wiring plan BEG LC plus 280 braun Movement sensor 280  9m
Wiring plan

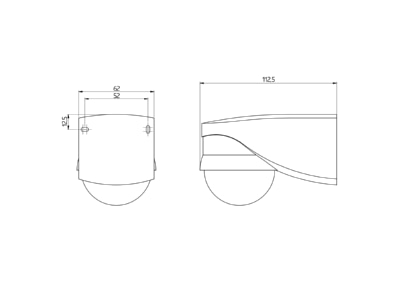

Dimensional drawing BEG LC plus 280 braun Movement sensor 280  9m
Dimensional drawing
Cone diagram BEG LC plus 280 braun Movement sensor 280  9m
Cone diagram
