Mini - actuator with 1 closer for universal installation 3476 - special offer

EAN/GTIN: 8012199653129
WEEE: DE 78878655
Manufacturer: Legrand BTicino
Manufacturer no.: 3476
Customs tariff no.: 85363010
Similar top items: Show now & compare
44,86 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

The device is part of the Basic automation system, and is therefore characterized by a compact size, which makes it possible for it to be installed inside flush mounted boxes, junction boxes, other boxes and trunking. Particularly suitable is the installation inside junction boxes, positioning the item at the back of the flush mounted box, behind lowered automation devices, or behind traditional type devices (pushbuttons, switches, etc.). This actuator/ control accepts on the input a traditional pushbutton with NO contact. The control/actuation device has a BUS inlet made by means of the blue cables, an inlet to connect the external pushbutton by means of the grey and black cables and a relay contact to control the load by means of the two white cords.

Technical data
Power supply from BUS: 27 Vdc
Operating power supply with SCS BUS: 18 – 27 Vdc
Absorption: 13 mA

Configuration
The actuator performs all the basic operating modes that can be configured directly on the control, apart from those which require the use of two interlocked relays. Moreover further operating modes with the configurator in position M of the same actuator are listed in the table below.

More product images:

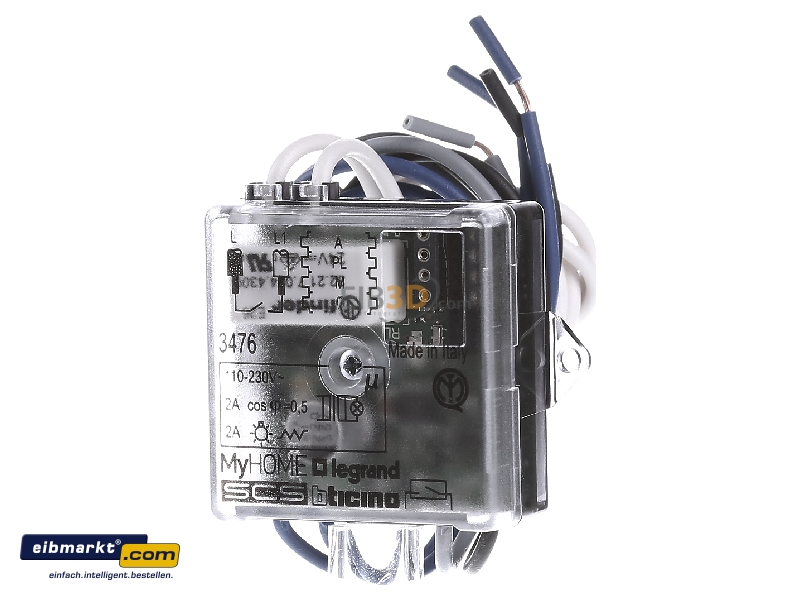

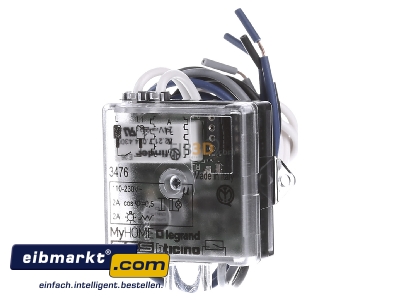

Front view bticino 3476 Mini - actuator with 1 closer for universal installation_- Special offer
Front view

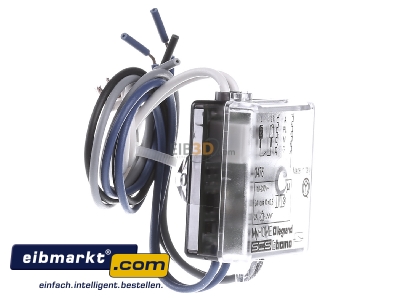

View on the left bticino 3476 Mini - actuator with 1 closer for universal installation_- Special offer
View on the left

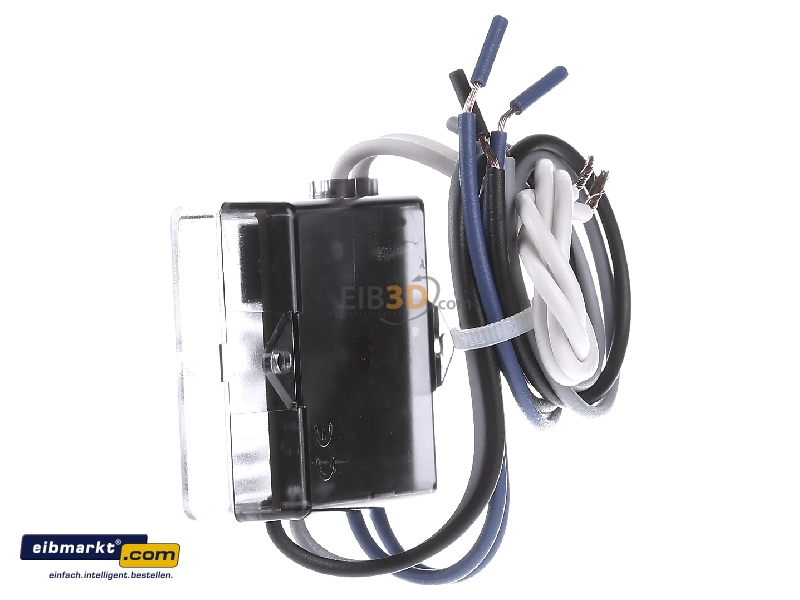

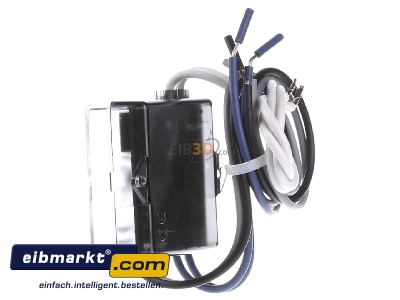

View on the right bticino 3476 Mini - actuator with 1 closer for universal installation_- Special offer
View on the right

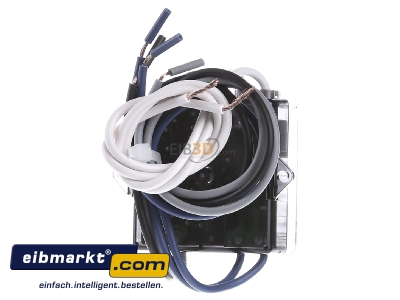

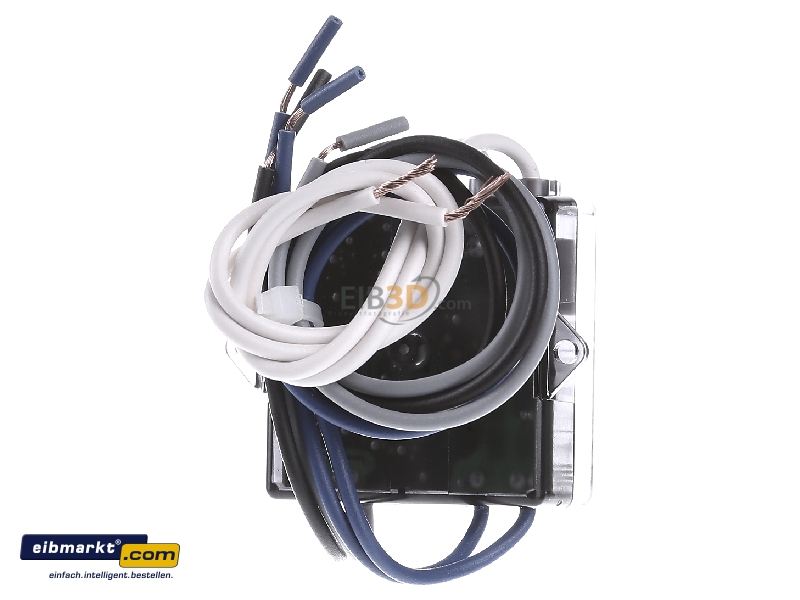

Back view bticino 3476 Mini - actuator with 1 closer for universal installation_- Special offer
Back view

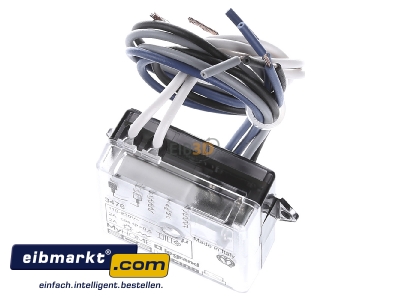

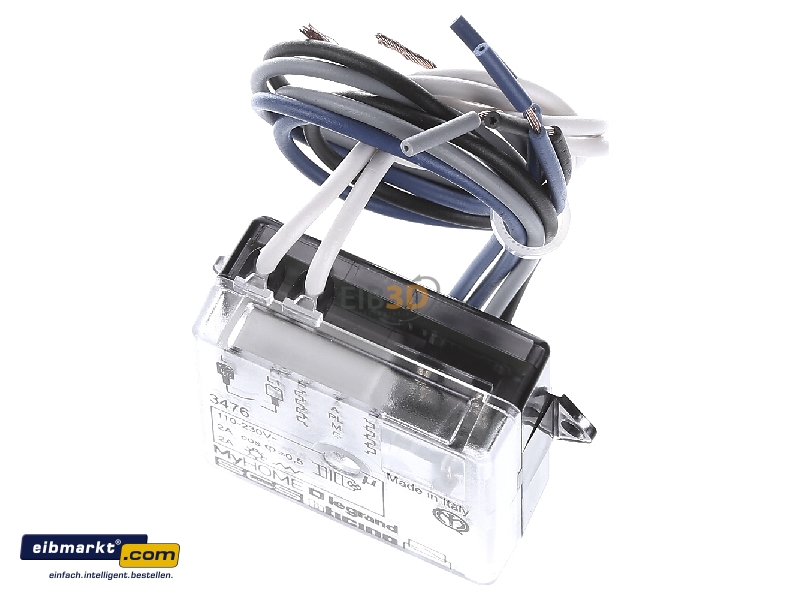

View up front bticino 3476 Mini - actuator with 1 closer for universal installation_- Special offer
View up front

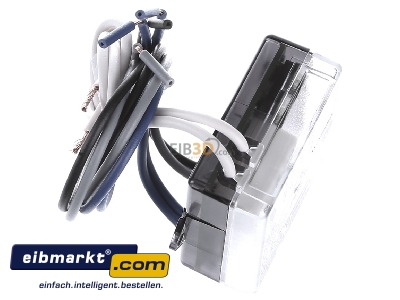

View top left bticino 3476 Mini - actuator with 1 closer for universal installation_- Special offer
View top left

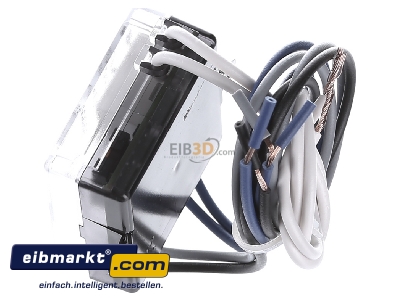

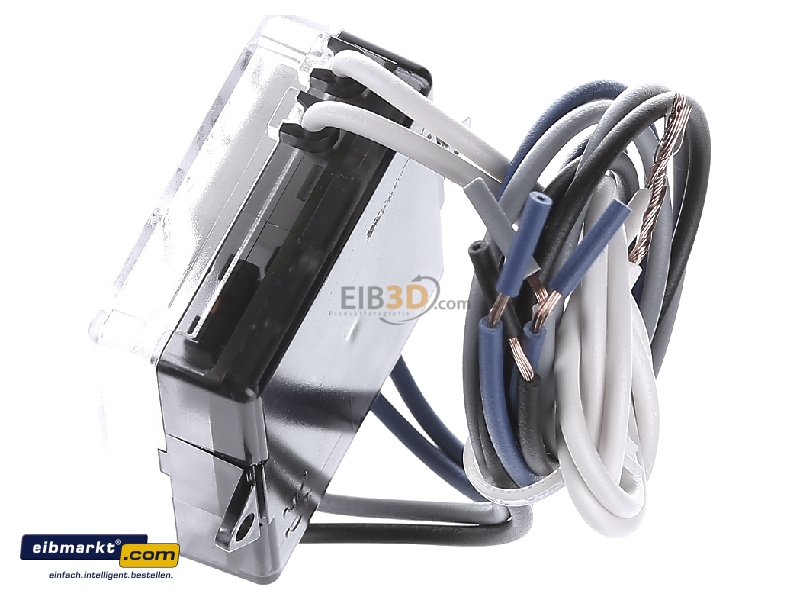

View top right bticino 3476 Mini - actuator with 1 closer for universal installation_- Special offer
View top right

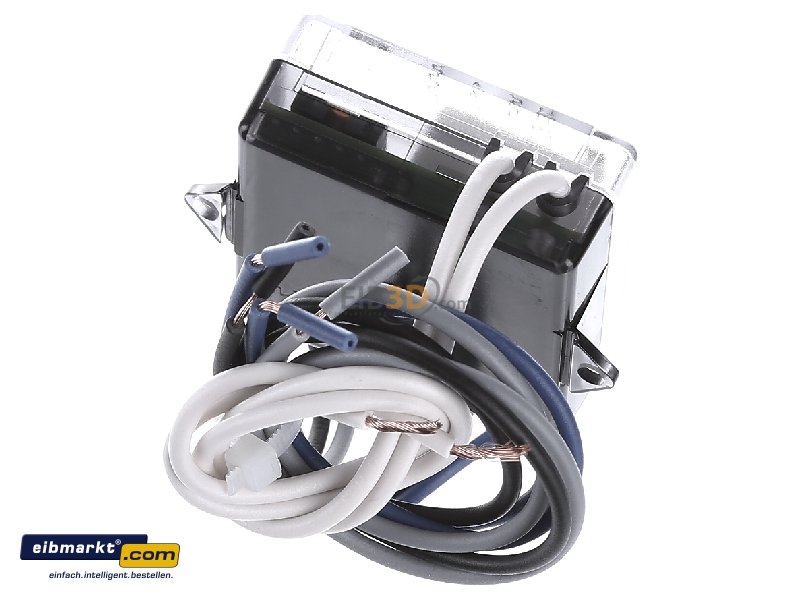

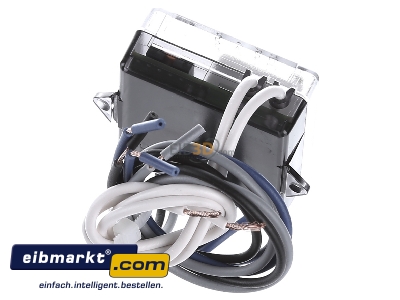

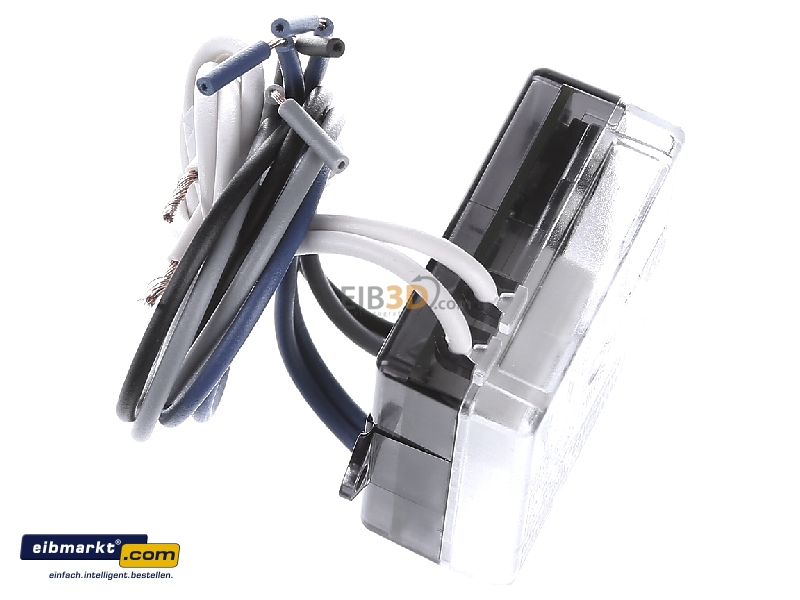

Top rear view bticino 3476 Mini - actuator with 1 closer for universal installation_- Special offer
Top rear view
